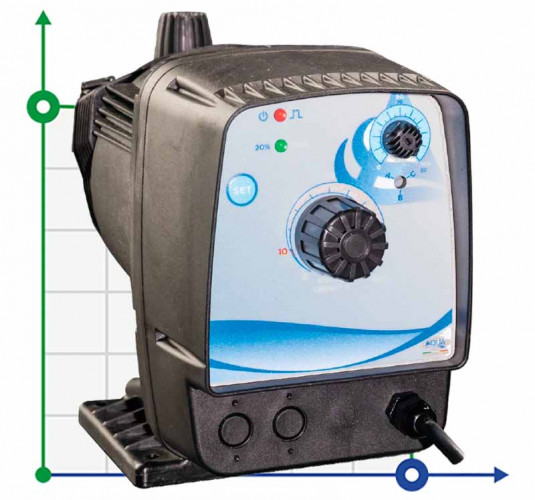

Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Brand:
AQUACharacteristics
Producer:
AQUA
Input 4-20 mA:
No
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
16
Control:
Manual
Pulse input(From Flowmetwer):
No
Hose standard size:
4x6
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Water disinfection dosing pump PDE HC200+ CST M60 240V PP-GL-VT, 1-10 l/h, 7-1 bar
Pre-order only
$540
Electromagnetic dosing pump PDE HC200+ CST-M60 PVDF-CE-VT 230V, 1-10 l/h, 7-1 bar
Pre-order only
$594
Electromagnetic dosing pump PDE HC200+ CST M70 240V PP-GL-VT, 1.8-14 l/h, 20-1 bar
Pre-order only
$566
Electromagnetic dosing pump PDE HC200+ PH-RX M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar
Pre-order only
$750
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Producer | AQUA |
Input 4-20 mA | No |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 16 |
Control | Manual |
Pulse input(From Flowmetwer) | No |
Hose standard size | 4x6 |
Input foe sensor PH | No |
Pump head type | PVDF 1/2" |
Input for sensor RX | No |
Protection level | IP65 |
Flow rate, l/h | 14 |
Dosage mode: Continually ON-OFF | Yes |
Input foe sensor | No |
Meterial of head pump | PVDF |
Pressure, bar | 20 |
Dosage mode: proportional PROP | No |
Input for sensor CD | No |
Electromagnet | M70 |
Input foe temperature sensor | No |
Material | PVDF |
Input for level sensor reagent | No |
Serial number of the pump | HC200 |
Country of Origin | Italy |
PumpType | dosing solenoid |
Drive Type | electric |
Gross weight, kg | 4.5 |
Length of transport packing, cm | 350 |
Width of transport packing, cm | 295 |
Height of transport packing, cm | 160 |
Description Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar

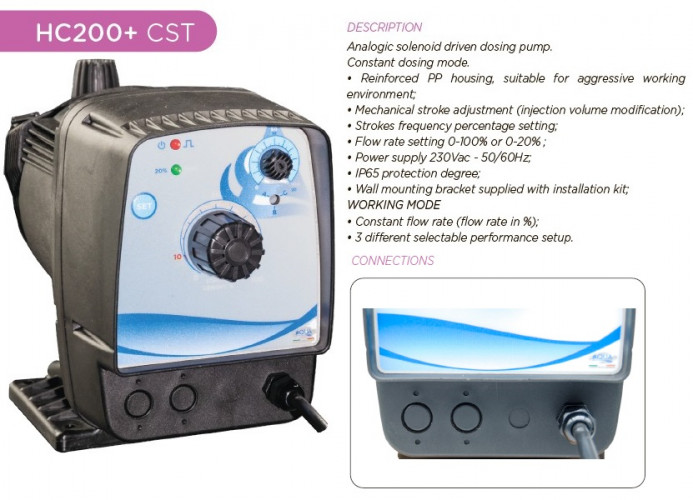

Analog metering pump with electromagnetic drive. Constant dosing mode. - Reinforced polypropylene housing, suitable for aggressive working environments; - Mechanical adjustment of the piston stroke (change in injection volume); - Stroke rate setting in percent; - Flow rate setting 0-100% or 0-20%; - Power supply 230 V AC - 50/60 Hz; - Protection class IP65; - Wall mounting bracket included in the installation kit; OPERATING MODE - Constant flow rate (flow rate in %); - 3 different performance settings to choose from.
Documentation Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Download instructions, catalog for Reagent dosing pump PDE HC200+ CST M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
