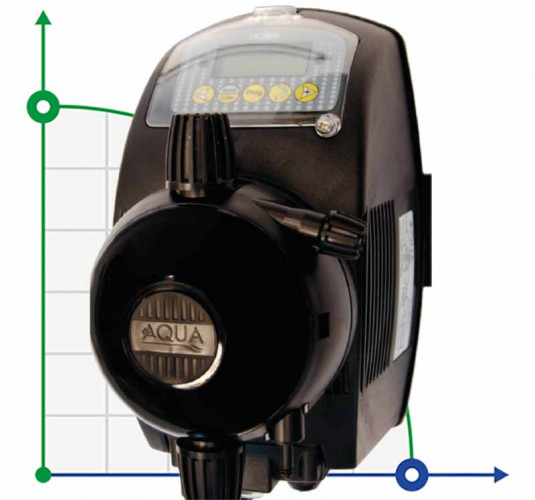

Dosing pump PDE HC999 CL-3C 20-05/25-03/35-01 230V PP-GL-VT
Brand:
AQUACharacteristics
Producer:
AQUA
Input 4-20 mA:
So
Output service relay:
So
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
35
Control:
Microprocessing
Pulse input(From Flowmetwer):
No
See all
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Dosing pump PDE HC999 CL-3C 20-05/25-03/35-01 230V PP-GL-VT
Producer | AQUA |
Input 4-20 mA | So |
Output service relay | So |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 35 |
Control | Microprocessing |
Pulse input(From Flowmetwer) | No |
Support for flow sensor | No |
Diaphragm stroke per min. | 150 |

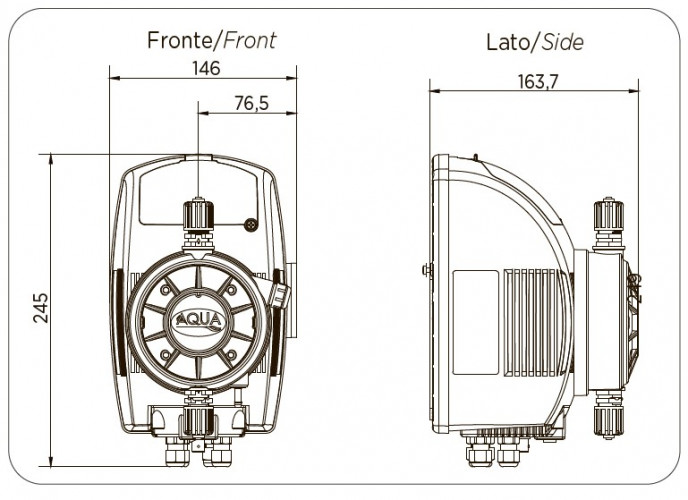

Dimensions, mm | 146×245×162×77 |
Hose standard size | 4x6 / 6x8 |
Input foe sensor PH | No |
Volume of medium per stroke, cm3 | 0,33/0,44/0,55 |
Model | mod. C - Cl |
Input for sensor RX | No |
Pump head type | PP 1/2" |
Flow rate, l/h | 35 |
Dosage mode: Continually ON-OFF | So |
Input foe sensor | So |
Protection level | IP 65 |
Pressure, bar | 5 |
Pump body material | Polypropylene |
Dosage mode: proportional PROP | So |
Input for sensor CD | No |
Product regulation 0-100% | So |
Input foe temperature sensor | No |
Material | PP |
Input for level sensor reagent | So |
Input mA | So |
Number of pulses | 150 |
Serial number of the pump | HC999 |
Country of Origin | Italy |
PumpType | dosing solenoid |
Drive Type | electric |
Application | algicide, hypochlorite, acids, of hydrochloric acid, alkalis, caustic, coagulant |
Weight, kg | 5,5 |
Description Dosing pump PDE HC999 CL-3C 20-05/25-03/35-01 230V PP-GL-VT
Pump model HC999 mod. C is an electromagnetic dosing pump of constant or proportional dosing, which is regulated by an external signal. At the bottom of the casing there is an ON / OFF switch and an internal plug-in box connecting various signals (an input flow level sensor, a water meter, a flow sensor, including an incoming one, a 4 ÷ 20mA input, an incoming chlorine flow sensor, as well as a relay output ). When the pump is switched on, the display shows the user menu and certain information about the operating mode, as well as the possibility of stopping and stimulating the pump operation. Thanks to digital technology, namely, a microcontroller and a liquid crystal display, the HC999 series pump is easily programmed and saves all statistical data.

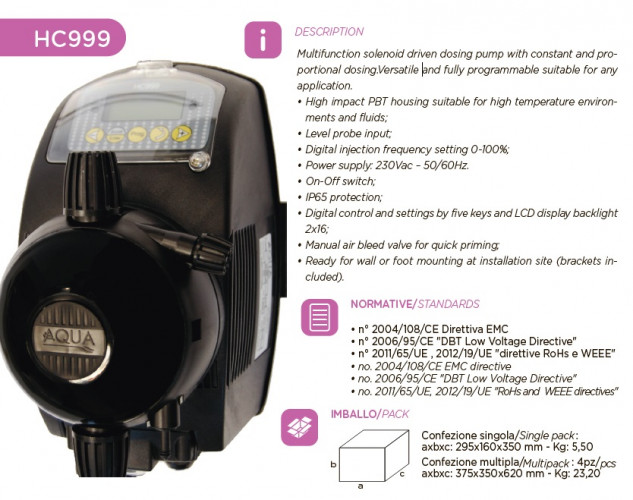

Multifunctional dosing pump with an electromagnet drive for constant and proportional dosing. A versatile and fully programmable pump for a variety of applications.
- Shock-resistant housing made of heavy-duty PBT (polybutylene terephthalate) material, suitable for working with high temperatures (both the environment and the pumped product);
- Inlet for the level sensor;
- Setting the injection frequency with a digital indicator (0-100%);
- Power supply: 240V AC - 50 / 60Hz. On demand-110V;
- On-Off Switch;
- Protection class-IR65;
- Digital control and adjustment using 5 buttons and the backlight of the 2x16 liquid crystal indicator;
- Manual control air intake valve;
- Wall mounting is also provided on the floor of the installation site (mounting brackets included).
