Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
Brand:
AQUACharacteristics
Producer:
AQUA
Input 4-20 mA:
Yes
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
35
Control:
Microprocessing
Pulse input(From Flowmetwer):
No
Hose standard size:
6x8
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Active oxygen dosing pump PDE HC999-PH/RX-4B 25-2.5/42-01 230V PVC-GL-VT
Pre-order only
$778
Dosing pump PDE HC999-CL-3C 17-05/25-01 230V PP-GL-VT
Pre-order only
$693
Dosing pump PDE HC999-CL-4C 25-2.5/42-1 230V PVC-GL-VT
Pre-order only
$784
Reagent dosing pump PDE HC999 J-4D 25-2.5/42-1 230V PVC-GL-VT
Pre-order only
$791
Diaphragm solenoid metering pump PDE HC899-3 17-05/25-01 230V PVDF-PTFE-VT
Pre-order only
$537
Dosing pump for swimming pools PDE HC899-3 17-05/25-01 230V PP-GL-DT
Pre-order only
$443
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT

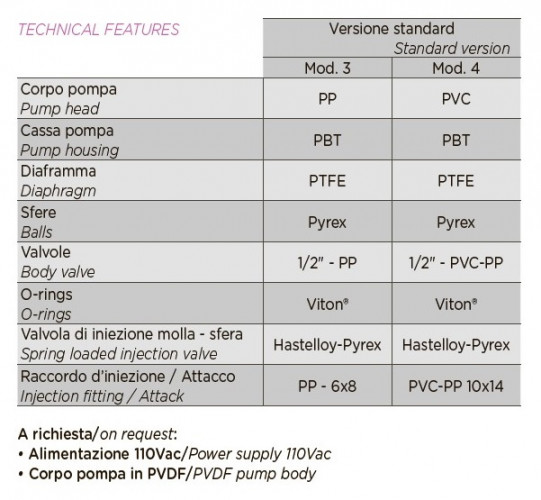

Producer | AQUA |
Input 4-20 mA | Yes |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 35 |
Control | Microprocessing |
Pulse input(From Flowmetwer) | No |
Hose standard size | 6x8 |
Input foe sensor PH | No |
Pump head type | PP 1/2" |
Input for sensor RX | No |
Protection level | IP65 |

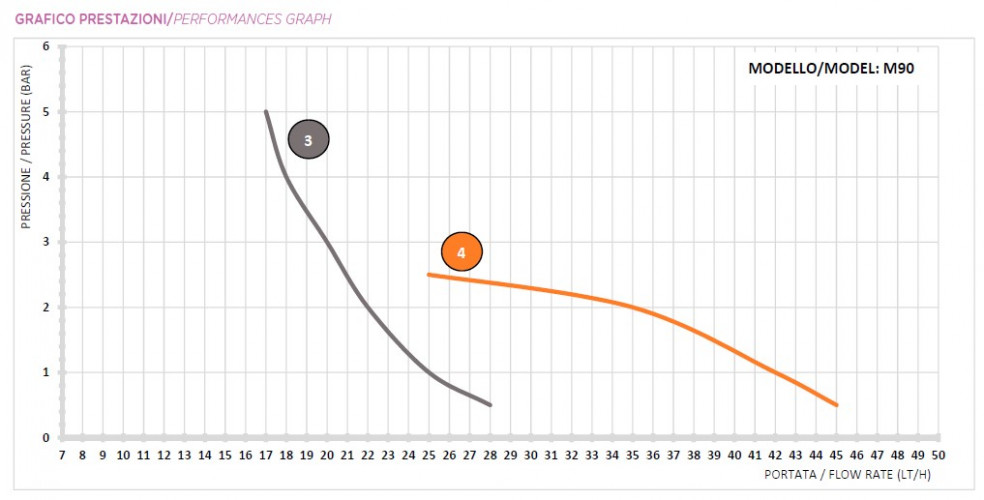

Flow rate, l/h | 25 |
Dosage mode: Continually ON-OFF | Yes |
Input foe sensor | Yes |
Meterial of head pump | PP |
Pressure, bar | 5 |
Dosage mode: proportional PROP | Yes |
Input for sensor CD | No |
Electromagnet | M90 |
Input foe temperature sensor | No |
Material | PP |
Input for level sensor reagent | Yes |
Serial number of the pump | HC999 |
Country of Origin | Italy |
PumpType | dosing solenoid |
Drive Type | electric |
Gross weight, kg | 5.5 |
Length of transport packing, cm | 350 |
Width of transport packing, cm | 295 |
Height of transport packing, cm | 160 |

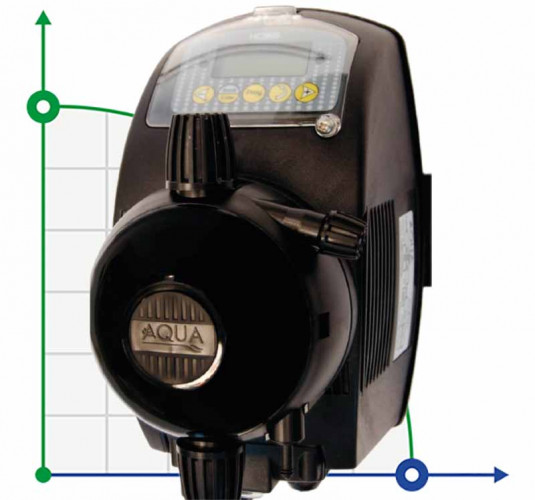

Description Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT

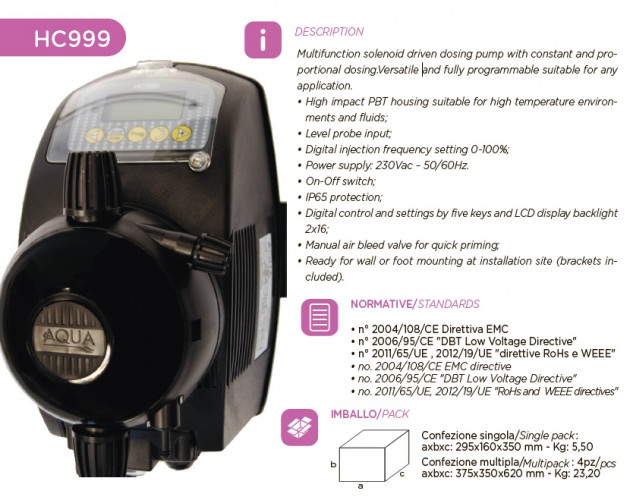

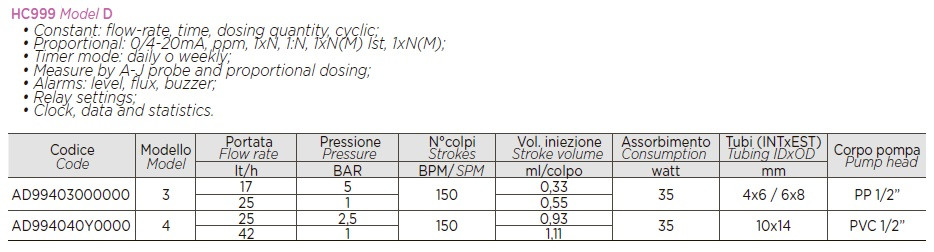

Multifunctional metering pump with solenoid drive for constant and proportional dosing. Versatile and fully programmable, suitable for any application. - Impact-resistant PBT housing, suitable for high-temperature media and liquids; - Input for level sensor; - Digital adjustment of injection frequency 0-100%; - Power supply: 230V AC - 50/60Hz. - On-off switch; - IP65 protection; - Digital control and adjustment with five keys and 2x16 LCD backlight; - Manual air valve for quick priming; - Ready for wall or floor mounting on site (brackets included). Model D: - Constant: flow rate, time, dosing quantity, cyclical; - Proportional: 0/4-20mA, ppm, 1xN, 1:N, 1xN(M) Ist, 1xN(M); - Timer mode: daily or weekly; - Measurement with AJ probe and proportional dosing; - Alarm: level, flow, buzzer; - Relay settings; - Clock, data and statistics.
Documentation Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
Download instructions, catalog for Dosing pump PDE HC999 J-3D 17-05/25-01 230V PP-GL-VT
