Dosing pump PDE HC999-PH/RX-4B 35-02/45-01/50-0,5 230V PVC-GL-VT

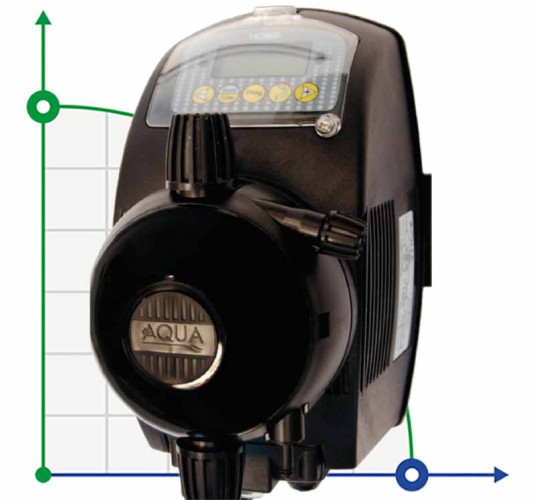

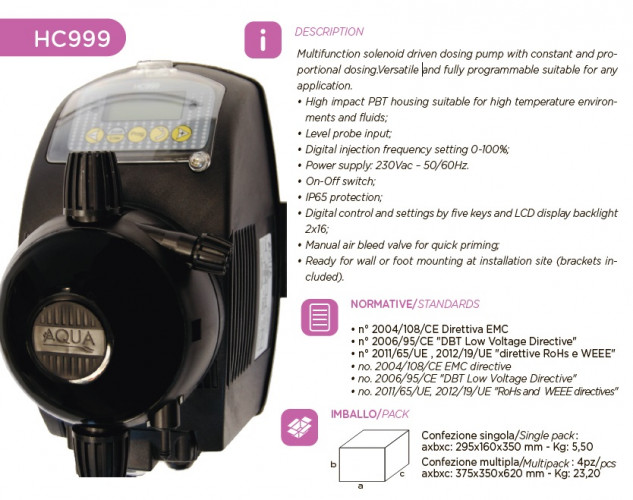

Pump model HC999 mod. B-an electromagnetic dosing pump of constant or proportional dosing, which is regulated by an external signal. At the bottom of the casing there is an ON / OFF switch and an internal socket box connecting various signals (input for connecting a level sensor, a water meter, a flow sensor, input 4 ÷ 20mA, a pH and Rx sensor, as well as a relay output). When the pump is switched on, the display shows the user menu and certain information about the operating mode, as well as the possibility of stopping and stimulating the pump operation. Thanks to digital technology, namely a microcontroller and a liquid crystal display, the HC999 series pump is easily programmed and saves all statistical data. Multifunctional dosing pump with an electromagnet drive for constant and proportional dosing. A versatile and fully programmable pump for a variety of applications. - Shock-resistant housing made of heavy-duty PBT (polybutylene terephthalate) material, suitable for working with high temperatures (both the environment and the pumped product); - Inlet for the level sensor; - Setting the injection frequency with a digital indicator (0-100%); - Power supply: 240V AC - 50 / 60Hz. On demand-110V; - On-Off Switch; - Protection class-IR65; - Digital control and adjustment using 5 buttons and the backlight of the 2x16 liquid crystal indicator; - Manual control air intake valve; - Wall mounting is also provided on the floor of the installation site (mounting brackets included).
