Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar

Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Brand:
AQUA
0 Comment
Characteristics
Producer:
AQUA
Input 4-20 mA:
No
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
22
Control:
Microprocessing
Hose standard size:
4x6
Input foe sensor PH:
No
See all
Documentation
Categories
Metering pumps and controllers
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: ADA14033A2000
$587.66 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Diaphragm solenoid metering pump PDE HC151+ CL(J) M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar Diaphragm solenoid metering pump PDE HC151+ CL(J) M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar
Pre-order only
$543.59
Diaphragm electromagnetic dosing pump PDE HC151+ CL(J) M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar Diaphragm electromagnetic dosing pump PDE HC151+ CL(J) M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Pre-order only
$558.29
Pool dosing pump PDE HC151+ CST M60 240V PP-GL-VT, 1-10 l/h, 7-1 bar Pool dosing pump PDE HC151+ CST M60 240V PP-GL-VT, 1-10 l/h, 7-1 bar
Pre-order only
$226.98
Dosing pump PDE HC151+ CST M60 240V PP-GL-DT, 1-10 l/h, 7-1 bar Dosing pump PDE HC151+ CST M60 240V PP-GL-DT, 1-10 l/h, 7-1 bar
Pre-order only
$226.98
Dosing pump PDE HC151+ CST M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar Dosing pump PDE HC151+ CST M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar
Pre-order only
$271.80
PDE enzyme dosing pump HC999-4A 25-2.5/42-1 230V PVC-GL-DT PDE enzyme dosing pump HC999-4A 25-2.5/42-1 230V PVC-GL-DT
Pre-order only
$816.83
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$135.86
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,371.63
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$90.59
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$402.21
Control panel for pump, 4 kW Control panel for pump, 4 kW
$470.20
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$340.22
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$248.38
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$144.39
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$155.70
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$181.17
Control panel for pump, 3 kW Control panel for pump, 3 kW
$457.34
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$220.78
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$531.58
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$260.42
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$485.99
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$332.18
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$493.49
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$465.14
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,896.86
Control panel for pump, 11 kW Control panel for pump, 11 kW
$509.57
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$823.76
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$68.21
Control panel for pump, 15 kW Control panel for pump, 15 kW
$683.06
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$24.82
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$321.75
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
Producer
AQUA
Input 4-20 mA
No
Power supply
1х220 V, 50 Hz
Power capacity, Wt
22
Control
Microprocessing
Hose standard size
4x6
Input foe sensor PH
No
Input for sensor RX
No
Pump head type
PVDF 1/2"
Flow rate, l/h
20
Dosage mode: Continually ON-OFF
So
Input foe sensor
So
Protection level
IP65
Pressure, bar
20
Dosage mode: proportional PROP
So
Input for sensor CD
No
Meterial of head pump
PVDF
Input foe temperature sensor
No
Electromagnet
M80
Material
PVDF
Input for level sensor reagent
So
Serial number of the pump
HC151
Country of Origin
Italy
PumpType
dosing solenoid
Drive Type
electric
Gross weight, kg
2.86
Length of transport packing, cm
250
Width of transport packing, cm
192
Height of transport packing, cm
160
Description Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar

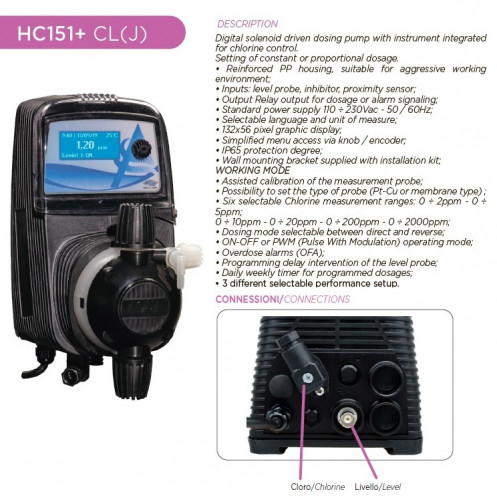

Digital dosing pump with electromagnetic drive and built-in chlorine monitoring device. Setting of constant or proportional dosing. - Reinforced polypropylene housing, suitable for aggressive working environments; - Inputs: level sensor, inhibitor, proximity sensor; - Output: relay output for dosing or alarm signaling; - Standard power supply 110 ÷ 230 V AC - 50 / 60 Hz; - Language and measurement unit selection; - Graphic display 132x56 pixels; - Simplified menu access via knob / encoder; - IP65 protection degree; - Wall mounting bracket included in the installation kit; OPERATING MODE - Automatic calibration of the measuring probe; - Possibility of setting the probe type (Pt-Cu or membrane type); - Six chlorine measurement ranges to choose from: 0 ÷ 2ppm - 0 ÷ 5ppm; 0 ÷ 10ppm - 0 ÷ 20ppm - 0 ÷ 200ppm - 0 ÷ 2000ppm; - Dosing mode selectable between direct and reverse; - ON-OFF or PWM (Pulse With Modulation) operating mode; - Overdosing alarm (OFA); - Programming of the level sensor intervention delay; - Daily, weekly timer for programmed dosing; - 3 different performance settings to choose from.
Documentation Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar

Download instructions, catalog for Hypochlorite dosing pump PDE HC151+ CL(J) M80 240V PVDF-CE-VT, 4-20 l/h, 20-1 bar
