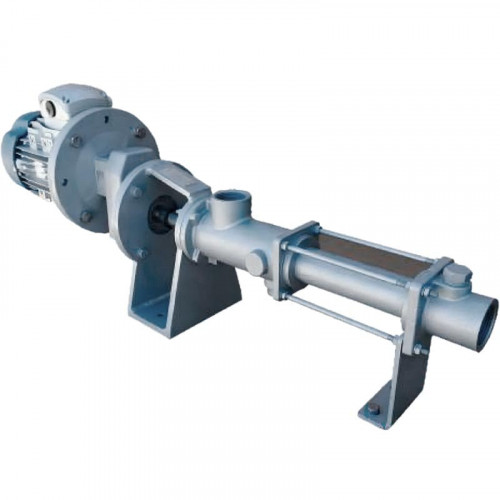

Sampling metering pump ATLAS DOS 11.2-01-0.25HP-3.40-1400-63-A-HYPALON
Brand:
AlphaDynamicCharacteristics
Output pipe diameter:
G1/2
Producer:
AlphaDynamic
Housing material:
AISI 316 stainless steel
Stator material:
HYPALON
Power supply:
3х380 V, 50 Hz
Rotor material:
AISI 316 stainless steel
Screw speed, rpm:
400
See all
Documentation
Categories
Favorite
Compare

Products from the same category
Also buy with this product




Features Sampling metering pump ATLAS DOS 11.2-01-0.25HP-3.40-1400-63-A-HYPALON
Output pipe diameter | G1/2 |
Producer | AlphaDynamic |
Housing material | AISI 316 stainless steel |
Stator material | HYPALON |
Power supply | 3х380 V, 50 Hz |
Rotor material | AISI 316 stainless steel |
Screw speed, rpm | 400 |
Max. head, m | 120 |
Rate of turn, rpm | 1 400 |
Feed height, m | 120 |
Power capacity, kW | 0,18 |
Pump capacity, cu.m/hour | 0.056 |
Explosion protection | No |
Max.flow rate, m3/h | 0.056 |
Flow rate, l/h | 56 |
Max.temperature, C | 100 |
Pressure, bar | 8 |
Input pipe diameter | G1/2 |
Material | AISI 316 stainless steel |
Serial number of the pump | ATLAS DOS |
Country of Origin | Greece |
PumpType | screw type |
Drive Type | electric |
Installation Type | horizontal |
Application | wastewater treatment programs, dosing of additives when mixing lubricants, adhesive dosage, dosages of chemicals, sampling, high-precision dosing of polymers |
Description Sampling metering pump ATLAS DOS 11.2-01-0.25HP-3.40-1400-63-A-HYPALON
The ATLAS DOS series of screw and metering pumps is the ideal solution for low-flow pumping units that require high volume control accuracy and are offered at an affordable price. These pumps provide pumping of liquids with a low and high degree of viscosity, as well as pumping of abrasive liquids.
Functions: uninterrupted flow of pumped liquid; close and precise connections; no ripple; no check valves; suitable for small rooms; withstands high discharge pressure; reverse pumping direction.
Industrial use: performing waste treatment tasks; high-precision pumping of polymer raw materials; sampling/dosing application; high-precision pumping of polymer raw materials; chemical dosing for production purposes; application for measuring and manufacturing glue; additive dosing in oil mixing tasks; application for municipal wastewater treatment.
