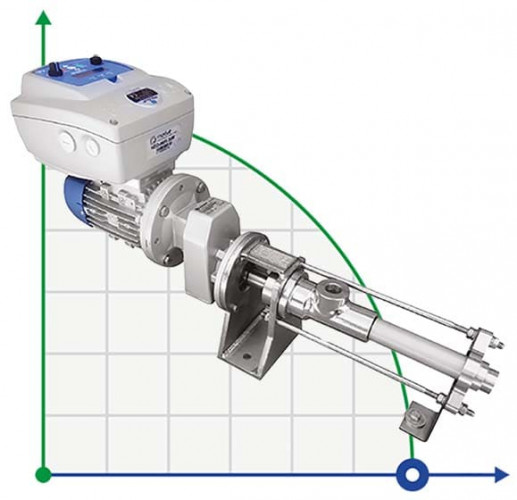

ATLAS DOS 11.2-05-WIFI-0.50HP-3.40-2800-A-N-HYPALON screw metering pump

Characteristics
Stator material:
HYPALON
Output pipe diameter:
G1/2
Producer:
AlphaDynamic
Housing material:
AISI 316 stainless steel
Screw speed, rpm:
820
Power supply:
3х380 V, 50 Hz
Rotor material:
AISI 316 stainless steel
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
This product is not available for purchase
Code: S994-60702-H
$2,759.01 netto
Favorite
Compare
We deliver anywhere in the world
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features ATLAS DOS 11.2-05-WIFI-0.50HP-3.40-2800-A-N-HYPALON screw metering pump
Stator material
HYPALON
Output pipe diameter
G1/2
Producer
AlphaDynamic
Housing material
AISI 316 stainless steel
Screw speed, rpm
820
Power supply
3х380 V, 50 Hz
Rotor material
AISI 316 stainless steel
Max. head, m
120
Rate of turn, rpm
2 800
Feed height, m
120
Power capacity, kW
0,37
Pump capacity, cu.m/hour
0.119
Explosion protection
No
Max.flow rate, m3/h
0.119
Flow rate, l/h
119
Max.temperature, C
100
Pressure, bar
8
Input pipe diameter
G1/2
Material
AISI 316 stainless steel
Serial number of the pump
ATLAS DOS
Country of Origin
Greece
PumpType
screw type
Drive Type
electric
Installation Type
horizontal
Application
wastewater treatment programs, dosing of additives when mixing lubricants, adhesive dosage, dosages of chemicals, sampling, high-precision dosing of polymers
Description ATLAS DOS 11.2-05-WIFI-0.50HP-3.40-2800-A-N-HYPALON screw metering pump
The ATLAS DOS series of screw and metering pumps is the ideal solution for low-flow pumping units that require high volume control accuracy and are offered at an affordable price. These pumps provide pumping of liquids with a low and high degree of viscosity, as well as pumping of abrasive liquids. Functions: uninterrupted flow of pumped liquid; close and precise connections; no ripple; no check valves; suitable for small rooms; withstands high discharge pressure; reverse pumping direction. Industrial use: performing waste treatment tasks; high-precision pumping of polymer raw materials; sampling/dosing application; high-precision pumping of polymer raw materials; chemical dosing for production purposes; application for measuring and manufacturing glue; additive dosing in oil mixing tasks; application for municipal wastewater treatment.
Documentation ATLAS DOS 11.2-05-WIFI-0.50HP-3.40-2800-A-N-HYPALON screw metering pump

Download instructions, catalog for ATLAS DOS 11.2-05-WIFI-0.50HP-3.40-2800-A-N-HYPALON screw metering pump
