Electromagnetic dosing pump PDE HC200+ PH-RX M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar
Brand:
AQUACharacteristics
Producer:
AQUA
Input 4-20 mA:
No
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
14
Control:
Microprocessing
Pulse input(From Flowmetwer):
No
Hose standard size:
4x6
See all
Documentation
Categories
Favorite
Compare

Products from the same category
Also buy with this product




Features Electromagnetic dosing pump PDE HC200+ PH-RX M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar
Producer | AQUA |
Input 4-20 mA | No |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 14 |
Control | Microprocessing |
Pulse input(From Flowmetwer) | No |
Hose standard size | 4x6 |
Input foe sensor PH | So |
Input for sensor RX | So |
Pump head type | PVDF 1/2" |
Flow rate, l/h | 10 |
Dosage mode: Continually ON-OFF | So |
Input foe sensor | No |
Protection level | IP65 |
Pressure, bar | 7 |
Dosage mode: proportional PROP | So |
Input for sensor CD | No |
Meterial of head pump | PVDF |
Input foe temperature sensor | No |
Electromagnet | M60 |
Material | PVDF |
Input for level sensor reagent | So |
Serial number of the pump | HC200 |
Country of Origin | Italy |
PumpType | dosing solenoid |
Drive Type | electric |
Gross weight, kg | 4.5 |
Length of transport packing, cm | 350 |
Width of transport packing, cm | 295 |
Height of transport packing, cm | 160 |
Description Electromagnetic dosing pump PDE HC200+ PH-RX M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar

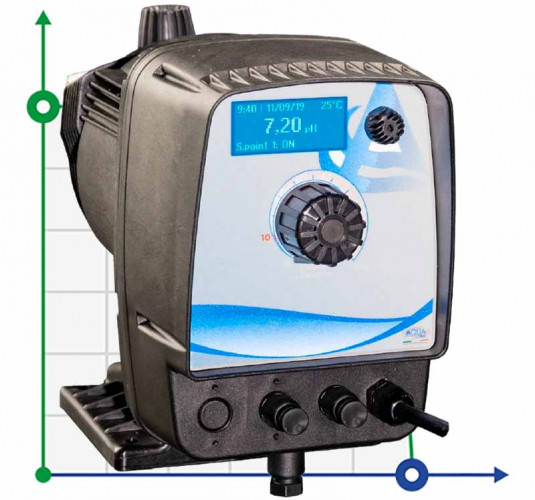

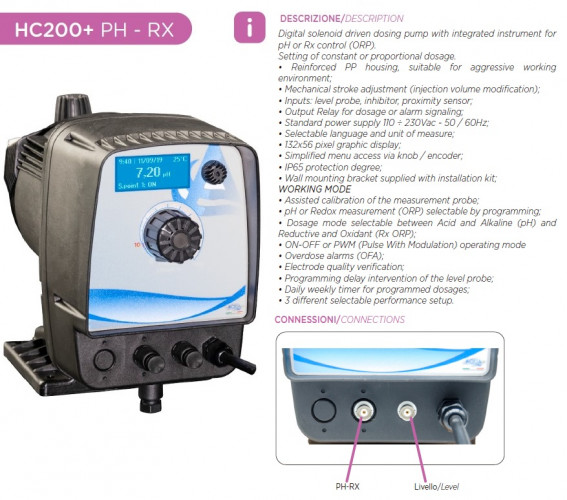

Digital metering pump with electromagnetic drive and built-in pH or ORP (ORP) control device. Setting of constant or proportional dosing. - Reinforced polypropylene housing, suitable for aggressive working environments, suitable for aggressive working environments - Mechanical adjustment of piston stroke (injection volume change); - Inputs: level sensor, inhibitor, proximity sensor; - Output: relay for dosing or alarm signaling; - Standard power supply 110 ÷ 230 V AC - 50 / 60 Hz; - Language and measurement unit selection; - Graphic display 132x56 pixels; - Simplified menu access via knob / encoder; - IP65 protection degree; - Wall mounting bracket included in the installation kit; OPERATING MODE - Automatic calibration of the measuring probe; - pH or ORP measurement via programming; - Dosing mode selectable between acid and alkali (pH) and reducing and oxidizing (ORP); - ON-OFF or PWM (Pulse With Modulation) operating mode - Overdosing alarm (OFA); - Electrode quality check; - Programming of the level sensor intervention delay; - Daily, weekly timer for programmed dosing; - 3 different selected performance settings.
Documentation Electromagnetic dosing pump PDE HC200+ PH-RX M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar
Download instructions, catalog for Electromagnetic dosing pump PDE HC200+ PH-RX M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar
