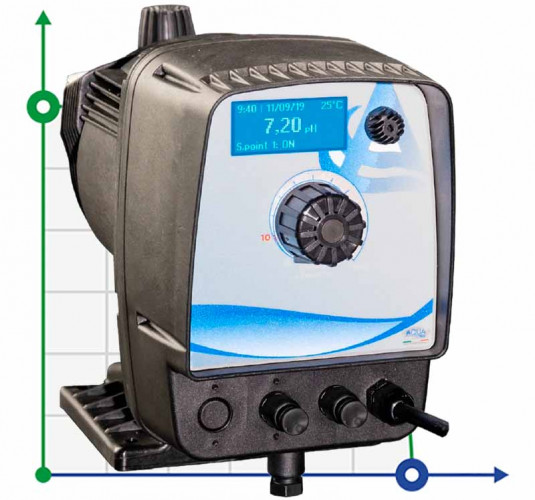

Diaphragm dosing pump PDE HC200 PH-RX 09-09 230V PP-GL-VT
Diaphragm dosing pump PDE HC200 PH-RX 09-09 230V PP-GL-VT
Diaphragm dosing pump PDE HC200 PH-RX 09-09 230V PP-GL-VT
Diaphragm dosing pump PDE HC200 PH-RX 09-09 230V PP-GL-VT
Diaphragm dosing pump PDE HC200 PH-RX 09-09 230V PP-GL-VT
Brand:
AQUACharacteristics
Producer:
AQUA
Input 4-20 mA:
So
Output service relay:
No
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
34
Control:
Microprocessing
Pulse input(From Flowmetwer):
No
See all
Categories
Favorite
Compare
Products from the same category
Diaphragm dosing pump PDE HC200 PI-MA 15-03 230V PP-GL-VT
Pre-order only
$796.06
Diaphragm dosing pump PDE HC200 PH-RX 02-18 230V PP-GL-VT
Pre-order only
$989.18
Diaphragm dosing pump PDE HC200 PH-RX 04-18 230V PP-GL-VT
Pre-order only
$989.18
Diaphragm dosing pump PDE HC200 PH-RX 10-10 230V PP-GL-VT
Pre-order only
$989.18
Diaphragm dosing pump PDE HC200 PH-RX 15-03 230V PP-GL-VT
Pre-order only
$989.18
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Pre-order only
$308.75
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Diaphragm dosing pump PDE HC200 PH-RX 09-09 230V PP-GL-VT
Producer | AQUA |
Input 4-20 mA | So |
Output service relay | No |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 34 |
Control | Microprocessing |
Pulse input(From Flowmetwer) | No |
Support for flow sensor | No |
Hose standard size | 4x6 |
Input foe sensor PH | So |
Model | pH-Rx |
Input for sensor RX | So |
Pump head type | PP 3/8" |
Flow rate, l/h | 15 |
Dosage mode: Continually ON-OFF | So |
Input foe sensor | No |
Pressure, bar | 9 |
Pump body material | Polypropylene |
Dosage mode: proportional PROP | So |
Input for sensor CD | No |
Product regulation 0-100% | So |
Input foe temperature sensor | No |
Material | PP |
Input for level sensor reagent | So |
Input mA | So |
Number of pulses | 120 |
Serial number of the pump | HC200 |
Country of Origin | Italy |
PumpType | dosing solenoid |
Drive Type | electric |
Application | hypochlorite, algicide, caustic, acids, of hydrochloric acid, alkalis, coagulant |
Weight, kg | 5 |
Description Diaphragm dosing pump PDE HC200 PH-RX 09-09 230V PP-GL-VT

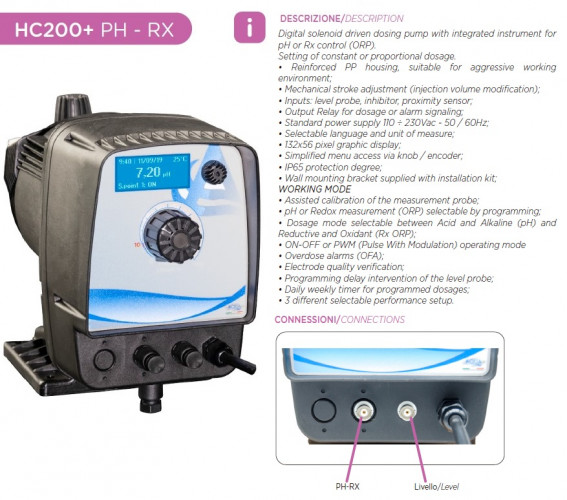

Electromagnetic solenoid dosing pumps HC 200 pH Rx for constant and proportional dosing.
- High flow speed;
- Mechanical adjustment of the pump operation (injection volume)
- Compliable with the level sensor;
- Power supply 220-230V 50 / 60Hz. On demand-110V;
WORKING MODE
- the regulation of the constant flow from 0-100%;
- Possibility to select the PH or Redox (ORP) measuring system from the programming menu;
- proportional dosing up to the set value limit;
- Alarm: level signal.
