Dosing pump DLX-MA/AD 5-7 230V/240V
Brand:
ETATRON D.S.Characteristics
Producer:
ETATRON D.S.
Input 4-20 mA:
No
Output service relay:
No
Length of a pistone stroke, mm:
1,1
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
37 W 0,16А
Control:
Manual
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Pulsation damper 50 ALU
Pre-order only
$3,839.69
Dosing pump DLX-MA/AD 1-15 230V/240V
Pre-order only
$319.04
Dosing pump PDE DLX-MA/AD 2-20 230V/240V
Pre-order only
$552.81
Dosing pump PDE DLX-MA/AD 8-10 230V/240V
Pre-order only
$402.84
Dosing pump PDE DLX-MA/AD 15-4 230V/240V
Pre-order only
$436.66
Dosing pump PDE DLX-MA/AD 20-3 230V/240V
Pre-order only
$558.70
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Dosing pump DLX-MA/AD 5-7 230V/240V
Producer | ETATRON D.S. |
Input 4-20 mA | No |
Output service relay | No |
Length of a pistone stroke, mm | 1,1 |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 37 W 0,16А |
Control | Manual |
Pulse input(From Flowmetwer) | No |
Support for flow sensor | No |
Input foe sensor PH | No |
Model | MA/AD |
Input for sensor RX | No |
Flow rate, l/h | 5 |
Dosage mode: Continually ON-OFF | So |
Input foe sensor | No |
Pressure, bar | 7 |
Pump body material | Polypropylene |
Dosage mode: proportional PROP | No |
Input for sensor CD | No |
Product regulation 0-100% | So |
Input foe temperature sensor | No |
Material | PP |
Input for level sensor reagent | So |
Input mA | No |
Number of pulses | 120 |
Serial number of the pump | DLX |
Country of Origin | Italy |
PumpType | dosing solenoid |
Drive Type | electric |
Availability of spare parts | yes |
Application | hypochlorite, algicide, acids, of hydrochloric acid, alkalis, caustic, coagulant |
Analogue for | ASeko, Injecta, Emec, AquaViva, Descon trol S, FWT, Seko |
Weight, kg | 2,3 |

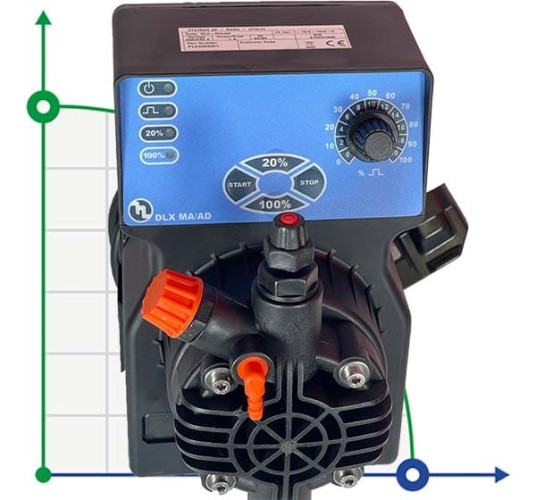

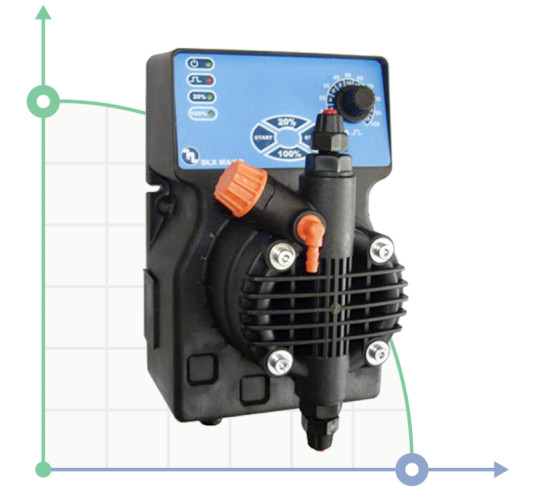

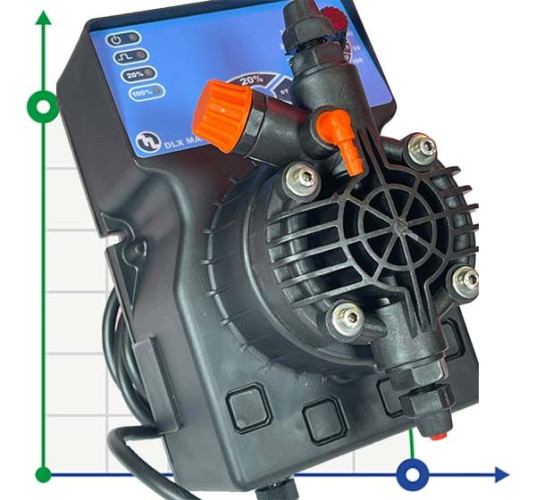

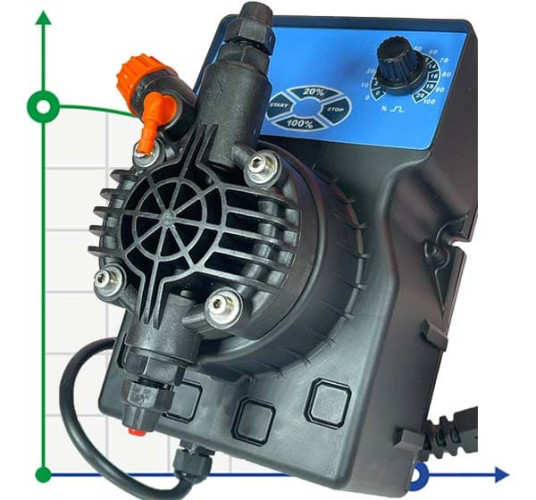

Description Dosing pump DLX-MA/AD 5-7 230V/240V
- Analog diaphragm dosing pump with manual control.
- Constant on / off dosing mode.
- Dual performance adjustment scale of 0-100% and 0-20%.
- Four indicators for displaying the work status.
- 4 touch buttons: START, STOP, 0-20% mode, 0-100% mode.
- Potentiometer knob for performance adjustment.
- Without level sensor support.
Documentation Dosing pump DLX-MA/AD 5-7 230V/240V
Download instructions, catalog for Dosing pump DLX-MA/AD 5-7 230V/240V
Video Dosing pump DLX-MA/AD 5-7 230V/240V
