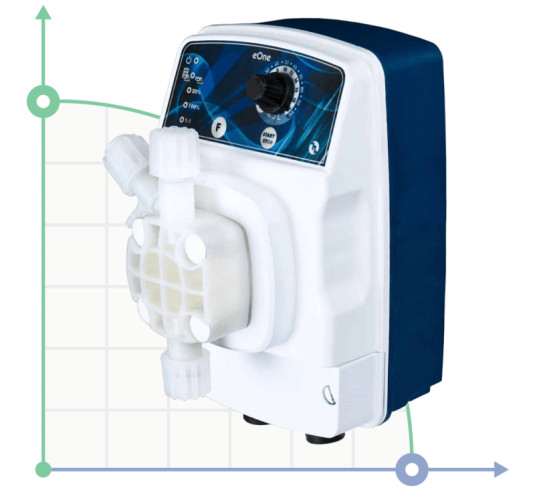

Dosing pump PDE eONE BASIC 02-10 100V/250V
Dosing pump PDE eONE BASIC 02-10 100V/250V
Dosing pump PDE eONE BASIC 02-10 100V/250V
Dosing pump PDE eONE BASIC 02-10 100V/250V
Dosing pump PDE eONE BASIC 02-10 100V/250V
Dosing pump PDE eONE BASIC 02-10 100V/250V
Brand:
ETATRON D.S.Characteristics
Producer:
ETATRON D.S.
Input 4-20 mA:
No
Output service relay:
No
Power supply:
1х220 V, 50 Hz
Power capacity, Wt:
32 W 0,14А
Control:
Manual
Pulse input(From Flowmetwer):
So
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Dosing pump PDE PKX FT/A 07-02 230V/240V
Pre-order only
$303.40
Dosing pump PDE PKX-CC/M 1-5 230V
Pre-order only
$269.99
Dosing pump PDE PKX-CC/M 5-5 230V
Pre-order only
$231.23
Dosing pump PDE eONE BASIC 05-07 100V/250V
Pre-order only
$417.01
Dosing pump PDE eONE MА 01-10 100/250V
Pre-order only
$498.54
Dosing pump PDE eONE MА 02-16 100/250V
Pre-order only
$522.60
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Dosing pump PDE eONE BASIC 02-10 100V/250V
Producer | ETATRON D.S. |
Input 4-20 mA | No |
Output service relay | No |
Power supply | 1х220 V, 50 Hz |
Power capacity, Wt | 32 W 0,14А |
Control | Manual |
Pulse input(From Flowmetwer) | So |
Support for flow sensor | No |
Input foe sensor PH | No |
Model | BASIC |
Input for sensor RX | No |
Flow rate, l/h | 2 |
Dosage mode: Continually ON-OFF | So |
Input foe sensor | No |
Pressure, bar | 10 |
Pump body material | PVDF |
Dosage mode: proportional PROP | So |
Input for sensor CD | No |
Impulse volume | 0,18 |
Product regulation 0-100% | So |
Input foe temperature sensor | No |
Material | PVDF |
Input for level sensor reagent | So |
Input mA | No |
Number of pulses | 180 |
Serial number of the pump | eONE |
Country of Origin | Italy |
PumpType | dosing solenoid |
Drive Type | electric |
Availability of spare parts | yes |
Application | hypochlorite, algicide, acids, of hydrochloric acid, alkalis, caustic, coagulant |
Analogue for | Injecta, Emec, AquaViva, Descon trol S, Seko, ASeko, FWT |
Weight, kg | 3 |
Description Dosing pump PDE eONE BASIC 02-10 100V/250V
Digital diaphragm dosing pump with manual control.
Dosage regimens:
- Manual ON /OFF with a double scale of 10-100% and 2-20% performance adjustment (a micro controller is used for clearer adjustment of pump performance);
- Proportional to 1:1 from the pulse flow meter (one received pulse from the flow meter = 1 pump injection).
Maximum pulse frequency 180 imp / min
Power consumption-32 W
Level sensor support (sensor not included).
Documentation Dosing pump PDE eONE BASIC 02-10 100V/250V
Download instructions, catalog for Dosing pump PDE eONE BASIC 02-10 100V/250V
