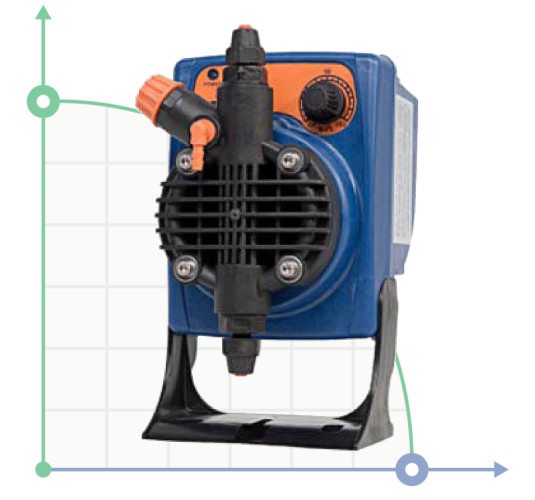

Dosing pump PDE PKX MA/AL 01-05 230V/240V

Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Dosing pump PDE PKX MA/AL 01-05 230V/240V
Brand:
ETATRON D.S.
0 Comment
Characteristics
Producer:
ETATRON D.S.
Valve:
Viton
Flow rate, l/h:
1
Pressure, bar:
5
Pump body material:
Polypropylene
Impulse volume:
0,14
Material:
PP
See all
Documentation
Categories
Metering pumps and controllers
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: PKX01028A7
$339.62 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Electromagnetic dosing pump PDE HC200+ PH-RX M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar Electromagnetic dosing pump PDE HC200+ PH-RX M60 240V PVDF-CE-VT, 1-10 l/h, 7-1 bar
Pre-order only
$833.78
Electromagnetic dosing pump PDE HC200+ PH-RX M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar Electromagnetic dosing pump PDE HC200+ PH-RX M70 240V PVDF-CE-VT, 1.8-14 l/h, 20-1 bar
Pre-order only
$848.41
Active oxygen dosing pump PDE HC200+ PH-RX M70 240V PVDF-CE-DT, 1.8-14 l/h, 20-1 bar Active oxygen dosing pump PDE HC200+ PH-RX M70 240V PVDF-CE-DT, 1.8-14 l/h, 20-1 bar
Pre-order only
$848.41
Dosing pump PDE PKX MA/AL 02-06 230V/240V Dosing pump PDE PKX MA/AL 02-06 230V/240V
Pre-order only
$333.73
Dosing pump PDE PKX MA/AL 05-05 230V/240V Dosing pump PDE PKX MA/AL 05-05 230V/240V
Pre-order only
$333.73
Dosing pump PDE PKX MA/AL 05-07 230V/240V Dosing pump PDE PKX MA/AL 05-07 230V/240V
Pre-order only
$370.49
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$135.86
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,371.63
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$90.59
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$402.21
Control panel for pump, 4 kW Control panel for pump, 4 kW
$470.20
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$340.22
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$248.38
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$144.39
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$155.70
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$181.17
Control panel for pump, 3 kW Control panel for pump, 3 kW
$457.34
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$220.78
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$531.58
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$260.42
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$485.99
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$332.18
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$493.49
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$465.14
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,896.86
Control panel for pump, 11 kW Control panel for pump, 11 kW
$509.57
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$823.76
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$68.21
Control panel for pump, 15 kW Control panel for pump, 15 kW
$683.06
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$24.82
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$321.75
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Dosing pump PDE PKX MA/AL 01-05 230V/240V
Producer
ETATRON D.S.
Valve
Viton
Flow rate, l/h
1
Pressure, bar
5
Pump body material
Polypropylene
Impulse volume
0,14
Material
PP
Number of pulses
120
Serial number of the pump
PKX
Country of Origin
Italy
PumpType
dosing solenoid
Drive Type
electric
Availability of spare parts
yes
Application
algicide, hypochlorite, coagulant, caustic, alkalis, of hydrochloric acid, acids
Analogue for
Etatron_PKX
Description Dosing pump PDE PKX MA/AL 01-05 230V/240V
Analog diaphragm dosing pump with manual control. Constant on / off dosage mode. Manual performance adjustment of 10÷100%. Three indicators for displaying the work status. Potentiometer knob for performance adjustment. Level sensor support (sensor not included).
Documentation Dosing pump PDE PKX MA/AL 01-05 230V/240V

Download instructions, catalog for Dosing pump PDE PKX MA/AL 01-05 230V/240V
