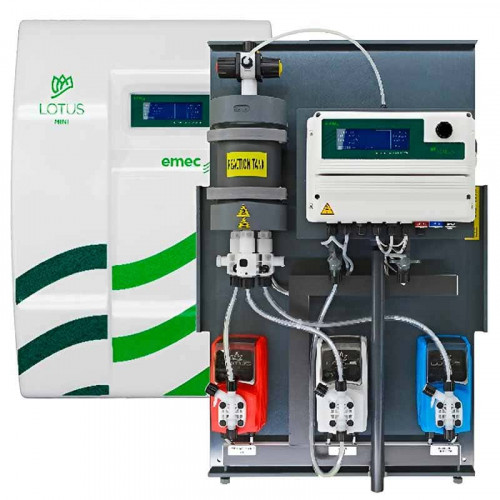

Chlorine dioxide dosing and control system EMEC LOTUS MINI 8-20 g/h, 8 bar, for water disinfection

The LOTUS MINI system produces, doses and controls chlorine dioxide for water disinfection. Chlorine dioxide is produced from diluted basic chemicals: hydrochloric acid (HCl 9%) and sodium chlorite (NaClO2 7.5%), which react in the reaction chamber to form the required chlorine dioxide. The chlorine dioxide produced by the LOTUS MINI is proportional to the circulating water flow or based on a set value - it is then dosed into the water flow. Chlorine dioxide is not stored, so there is no chlorine dioxide gas or concentrated solutions outside the application process. Multifunctional valves at the injection points ensure the safety of the reaction chamber. The basic chemicals are stored in tanks and fed into the reaction chamber via suction tubes. Built-in level switches automatically stop the pumps when the tanks are empty. Features: - Instant ClO 2 production. - ClO 2 dosing in PROPORTIONAL mode. - Input for flow control (flow alarm). - Tank level control (level alarm). - Input for water meter. - Input for standby mode. - Real-time production data. - Monitoring of SEFL pumps and flow sensors. - Permanent data storage with system data log (in the "Log" menu). - Maintenance interval. - LOTUS control unit. - ClO2 sensor readings (LOTUS MINI SVCL2 - LOTUS MINI SVCL17). - Temperature sensor readings (sensor and accessories not included). - mV sensor readings (LOTUS MINI ERH). - HCl (red) and NaClO2 (blue) dosing pumps. - Water dilution pump (grey). - 3 SEFL flow sensors as a safety measure. - Multifunctional valve MFKT/V as pressure, safety, anti-siphon and drain valve. - PVC reaction chamber. - ASA (Acrylonitrile-Styrene-Acrylate) housing. - IP65 (NEMA4x) protection of the LOTUS control unit. - ENCODER wheel control. - Operating temperature: 0-45 °C (32-110 °F). - mA output.
