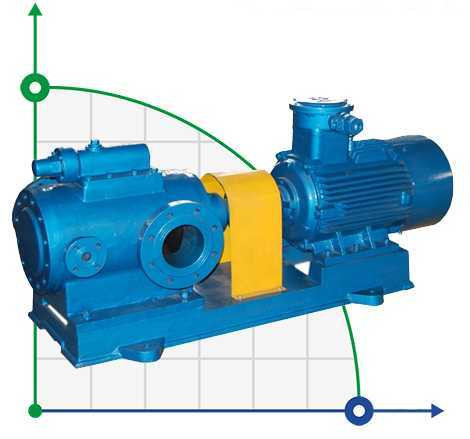

Bitumen pump G54*2-46/6/1.0/ C
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
50 mm
Producer:
BTS Engineering
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
970
Power capacity, kW:
3
Pump capacity, cu.m/hour:
8
Explosion protection:
No
See all
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Bitumen pump G54*2-46/6/1.0/ C
Output pipe diameter | 50 mm |
Producer | BTS Engineering |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 970 |
Power capacity, kW | 3 |
Pump capacity, cu.m/hour | 8 |
Explosion protection | No |
Nom.pressure, Mpa | 1 |
Max.temperature, C | 350 |
Input pipe diameter | 50 mm |
PumpType | gear type |
Drive Type | electric |
Installation Type | horizontal |
Application | lubricants, rubber, mineral oil, crude oil, liquid fuel, bitumen |
Description Bitumen pump G54*2-46/6/1.0/ C
Bitumen pump with heating jacket G54*2-46/6/1.0/ C.
The pump consists of three synchronously rotating screws (one driving two driven), a housing and a heating jacket. The pump screws are hydraulically unloaded by supplying the pumped liquid under pressure to the propellers of the screws. The driven screws rotate in opposite directions, which also helps to reduce the axial pressure.
The pump is driven by a standard asynchronous electric motor through an elastic coupling. This type of pump has stable performance, low noise, high pressure. The pump can be used for pumping various liquids with a temperature of up to 350 ° C and a viscosity of up to 760 cSt. For example, liquid fuel, crude oil, mineral oil, rubber, various lubricants.
They are used in the oil industry, mining, energy, shipbuilding, glass and rubber production. The housing with a heating jacket allows heating the pumped liquid to prevent its solidification.
