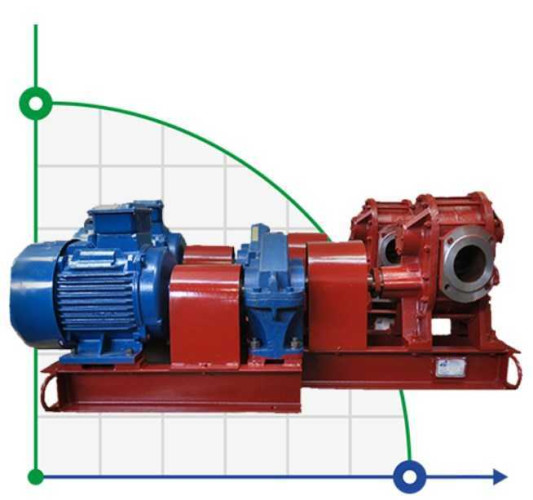

Food pump for molasses P6-PPV

Gear pump P6-PPV It is used for pumping molasses, molasses, pulp, wort, caramel, varnish, bitumen. The gear pump of the P6-PPV brand consists of a pump, a single-stage cylindrical gearbox, two couplings, an electric motor that are mounted on a common welded plate. The pump consists of a steel housing with suction and discharge nozzles, one pair of working gears and two cast-iron covers with sliding bearings pressed into them. The steel housing, clamped between two cast-iron covers by means of studs, is the pump chamber. Working gears made of low-alloy steel are mounted on parallel shafts and driven by an electric motor through a single-stage cylindrical gearbox. The pump shafts rotate on sliding bearings.At the exit point of the drive shaft from the pump housing there is an oil seal with a soft packing The principle of operation is simple and consists in the fact that during rotation, the fluid filling the cavities of the gears moves along the inner wall of the pump housing until the teeth lock together. Due to this begins the ejection of the liquid under pressure into the pressure pipe. The viscosity of the pumped liquid is from 0.14 to 12 PaS. Self-priming - up to 4 m.
