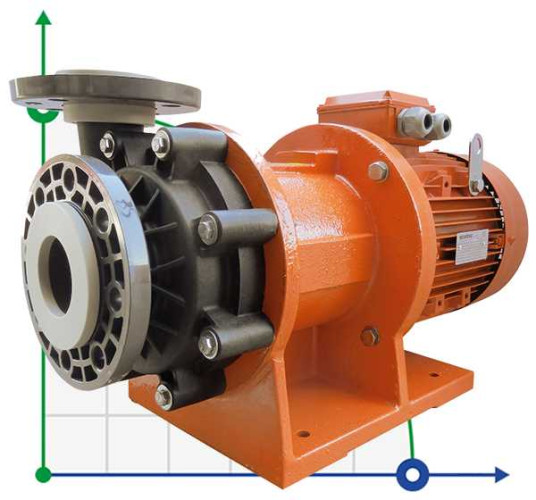

ADM 80.2 PP/20HP/2800RPM FLANGE pump with the magnetic coupling

The centrifugal pumps with the magnetic coupling of the ADM series are made of thermoplastics (PP and PVDF) and are suitable for corrosive liquids. Thanks to the innovative magnetic motion system, the ADM PP / PVDF pump model reduces the risk of loss and maintenance costs. The torque of the electric motor is transmitted to the pump by a magnetic coupling without mechanical contact. This ensures maximum safety and efficiency. The ADM series centrifugal pumps with the magnetic coupling have a special design without mechanical seal, which makes them suitable for pumping corrosive and dangerous liquids due to their high chemical resistance and lack of leaks. The structure of the pump is very simple, which significantly reduces the cost of its maintenance, with subsequent savings in the cost of repairs and spare parts during the life of the pump. An external magnet placed on the torsion axis transmits motion to the inner axis. That, in turn, connects to the impeller, which rotates and pushes the contents through the pump. Advantages: - without mechanical axle seal - motor and pump are mechanically separated from each other - absolute tightness - no need for maintenance Applications: chemical, petrochemical, pharmaceutical, paper, textile, food processing, sugar factories, dairy plants, electronics, water treatment plants, any hazardous chemical liquids. Technical characteristics of the pump: Material of execution: PP Max. Capacity: 82 m3 / h Max. height of head: 32 mCe Max. temperature: 60°C Maximum viscosity: 200 cPs Suction / discharge pipes: DNDN80 x DNDN65 Power: 15 kW, 3x380 V, 50 Hz, 3000 rpm.
