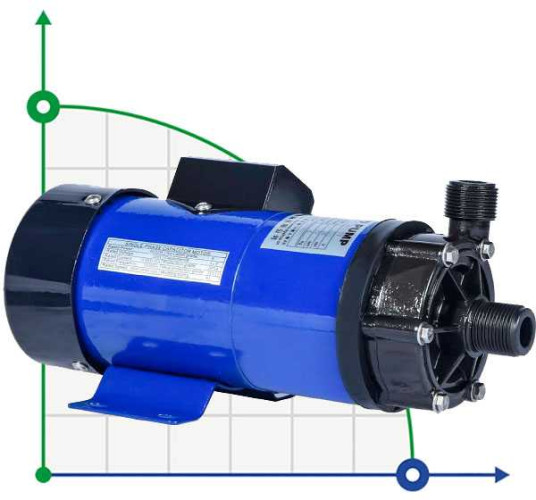

Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)

Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Brand:
Qeehua
0 Comment
Characteristics
Output pipe diameter:
G1
Producer:
Qeehua
Material of O-ring:
EPDM
Power supply:
3х380 V, 50 Hz
Max. head, m:
13.2
Feed height, m:
13.2
Dimensions, mm:
338x173x155
See all
Documentation
Categories
Magnetic drive pumps, Centrifugal industrial pumps
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1022520
$533.78 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Pump with magnetic coupling sealed MD-F-257SAE-5V38AYS, PPH, 60L/min, 7.3m, 380V Pump with magnetic coupling sealed MD-F-257SAE-5V38AYS, PPH, 60L/min, 7.3m, 380V
Pre-order only
$484.51
ADM 10 PP/TF/0.75HP/2800RPM pump with the magnetic coupling ADM 10 PP/TF/0.75HP/2800RPM pump with the magnetic coupling
Pre-order only
$921.60
ADM 15 PP/TF/2HP/2800RPM pump with the magnetic coupling ADM 15 PP/TF/2HP/2800RPM pump with the magnetic coupling
Pre-order only
$1,611.80
ADM 31 PP/TF/3HP/2800RPM pump with the magnetic coupling ADM 31 PP/TF/3HP/2800RPM pump with the magnetic coupling
Pre-order only
$2,797.68
Chemical pump with magnetic coupling MD-E-203-SSV-5V22AYS, CFRETFE, 33L/min, 4m, 220V Chemical pump with magnetic coupling MD-E-203-SSV-5V22AYS, CFRETFE, 33L/min, 4m, 220V
Pre-order only
$480.80
ADM 40 PP/TF/4HP/2800RPM pump with the magnetic coupling ADM 40 PP/TF/4HP/2800RPM pump with the magnetic coupling
Pre-order only
$5,233.81
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$123.52
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,156.03
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$82.35
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$365.65
Control panel for pump, 4 kW Control panel for pump, 4 kW
$427.46
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$309.30
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$225.79
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$131.26
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$141.53
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$164.70
Control panel for pump, 3 kW Control panel for pump, 3 kW
$415.77
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$200.71
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$483.25
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$236.74
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$441.80
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$301.99
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$448.62
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$422.86
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,724.41
Control panel for pump, 11 kW Control panel for pump, 11 kW
$463.25
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$748.87
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$62.01
Control panel for pump, 15 kW Control panel for pump, 15 kW
$620.95
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$22.57
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$292.50
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Output pipe diameter
G1
Producer
Qeehua
Material of O-ring
EPDM
Power supply
3х380 V, 50 Hz
Max. head, m
13.2
Feed height, m
13.2
Dimensions, mm
338x173x155
Power capacity, kW
0,25
Pump capacity, cu.m/hour
6
Flow rate, l/min
100
Max.flow rate, m3/h
6
Max.temperature, C
70
Shaft material
CERAMIC
Input pipe diameter
G1
Material
GFRPP
Serial number of the pump
MD
PumpType
with magnetic coupling
Drive Type
electric
Installation Type
horizontal
Analogue for
EVT, Finish Thompson Ins, IWAKI, FLUIMAC CM, AGRAL TMR, AGRAL TMP, AGRAL TMB, FTI, ARBO, STN, Tapflo, STEINER, SP, DB, M Pumps CM MAG-P, Кристалл ХЦМ, Gemme Cotti HTM, Kaix MDP
Weight, kg
6,8
Description Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V
Documentation Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)

Download instructions, catalog for Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)

Video Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production)
Chemical pump with magnetic coupling MD-F-258-SAE5, GFRPP, 100L/min, 13,2m, 380V (the product is out of production) reviews
