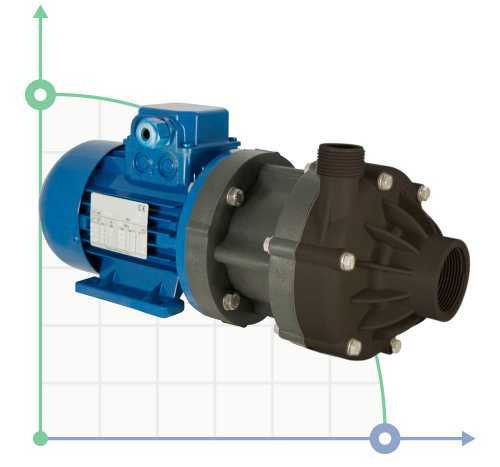

Pump with magnetic coupling DM 06 PVDF, VITON, 0,37 kW, 65 mm
Brand:
DEBEMCharacteristics
Output pipe diameter:
3/4”
Producer:
DEBEM
Power supply:
3х380 V, 50 Hz
Max. head, m:
8.5
Feed height, m:
8.5
Max.viscosity, cPs:
150
Model:
DM06
See all
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Pump with magnetic coupling DM 06 PVDF, VITON, 0,37 kW, 65 mm
Output pipe diameter | 3/4” |
Producer | DEBEM |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 8.5 |
Feed height, m | 8.5 |
Max.viscosity, cPs | 150 |
Model | DM06 |
Power capacity, kW | 0,37 |
Pump capacity, cu.m/hour | 6.5 |
Max.flow rate, m3/h | 6.5 |
Impeller diameter, mm | 65 |
Max.temperature, C | 95 |
Material of flow channel | PVDF |
Input pipe diameter | 1” |
Material | PVDF |
Max.medium temperature, Celsius degree | 95 |
Serial number of the pump | DM |
Country of Origin | Italy |
PumpType | with magnetic coupling |
Drive Type | electric |
Availability of spare parts | yes |
Description Pump with magnetic coupling DM 06 PVDF, VITON, 0,37 kW, 65 mm
DM canned pumps without seals and magnetic couplings.
Hermetic pumps with a magnetic coupling used for pumping corrosive, toxic or inflammable liquids, and liquids containing particles.
Several magnets drives the pump in motion, the external magnet located on the shaft, transmits the motion to the inner magnet embedded in the impeller, which is hermetically isolated. The impeller is mounted on the pump shaft, therefore, no seal, which prevents leakage of the pumped fluid as a consequence of the seals wear. Pump head consists of several components, simplifying thus maintenance. Standard pump performance materials: polypropylene (PP) and polivinilindenftorid (PVDF).
These pumps can not run "dry". Pumping contaminated liquids leads to a reduction of pump service life.
