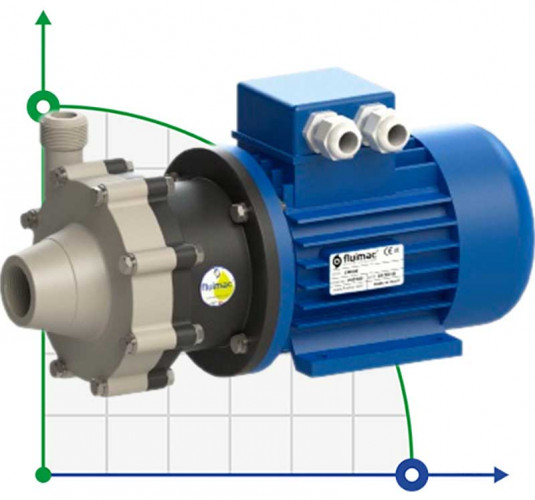

Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V
Brand:
FLUIMACCharacteristics
Output pipe diameter:
3/4"
Producer:
FLUIMAC
Housing material:
PP
Material of O-ring:
EPDM
Power supply:
3х380 V, 50 Hz
Max. head, m:
8.5
Rate of turn, rpm:
2 900
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Pump with magnetic coupling DM 06 PVDF, VITON, 0,37 kW, 65 mm
Pre-order only
$1,494.28
FLUIMAC COMPASS CM 4 PVDF magnetic coupled chemical pump, 0.12 kW, 380V
Pre-order only
$1,337.15
Pump with magnetic coupling DM 06 PVDF, VITON, 0,37 kW, 81 mm
Pre-order only
$1,494.28
Magnetic coupling pump 10 DM PP, EPDM, 0.55 kW, 85 mm
Pre-order only
$1,180.19
FLUIMAC COMPASS CM 6 PVDF magnetic coupling pump for chemically aggressive liquids, 0.25 kW, 380V
Pre-order only
$1,785.86
Magnetic coupling pump 10 DM PP, EPDM, 0.55 kW, 98 mm
Pre-order only
$1,180.19
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V

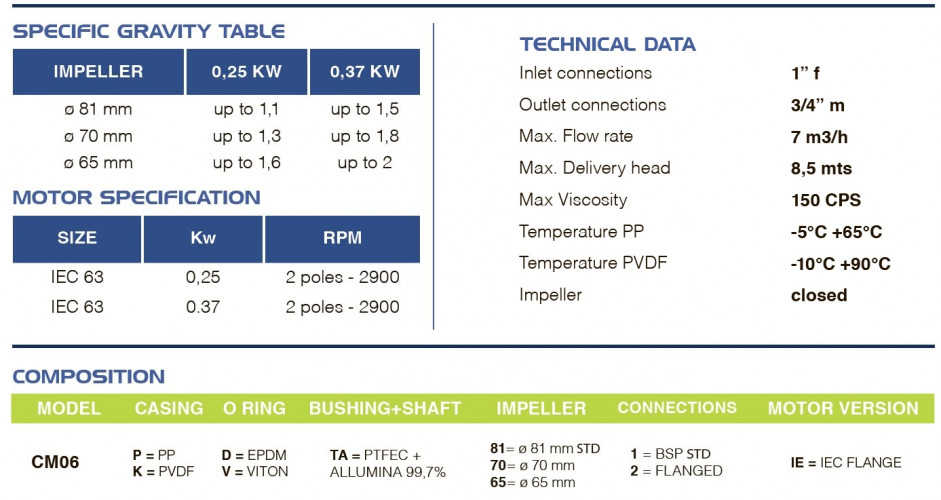

Output pipe diameter | 3/4" |
Producer | FLUIMAC |
Housing material | PP |
Material of O-ring | EPDM |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 8.5 |
Rate of turn, rpm | 2 900 |
Feed height, m | 8.5 |
Operating temperature | -5°C + 65°C |
Power capacity, kW | 0,25 |
Pump capacity, cu.m/hour | 7 |
Flow rate, l/min | 116.7 |
Explosion protection | No |
Max.flow rate, m3/h | 7 |
Input pipe diameter | 1" |
Material | PP |
Serial number of the pump | COMPASS |
Country of Origin | Italy |
PumpType | with magnetic coupling |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Availability of spare parts | yes |
Warranty, months | 12 |
Description Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V

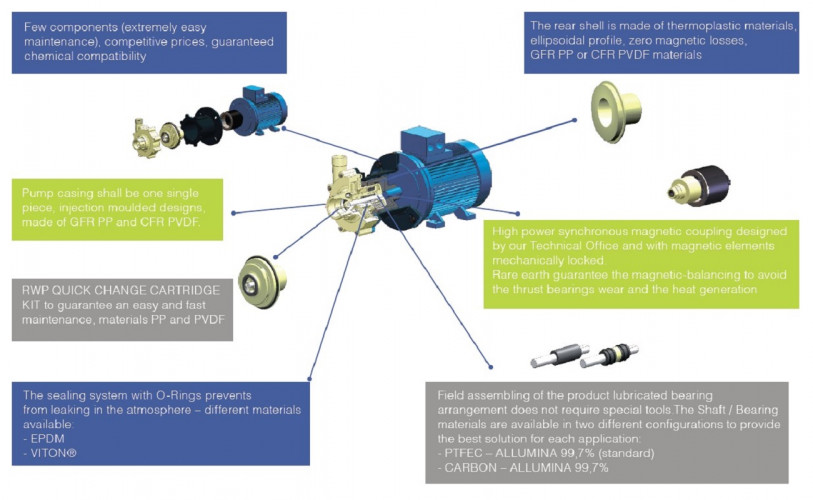

The magnetic coupled centrifugal pumps of the COMPASS series from the Italian company FLUIMAC are suitable for pumping highly aggressive liquids. Thanks to their innovative system, the COMPASS pumps reduce the risk of leakage and emissions as well as maintenance costs. The motion is transmitted via magnetic couplings without any mechanical seals, a design that guarantees maximum safety and efficiency.
The pumped liquid must be clean and free of solid particles in suspension. Separating the liquid chamber from the atmosphere by means of an insulating jacket is the best solution for pumping aggressive chemicals, highly purified liquids and liquids that are difficult to seal. Hermetic pumps without seals made of thermoplastic injection moulded are the best solution for light duty applications.
Documentation Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V
Download instructions, catalog for Magnetic coupled pump FLUIMAC COMPASS CM 6 PP, 0.25 kW, 380V
