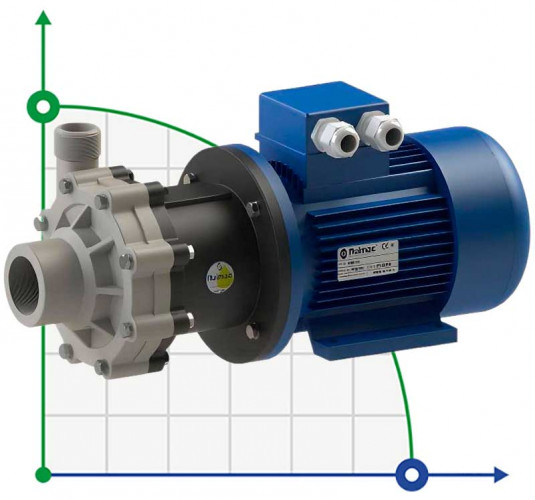

Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V

Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Brand:
FLUIMAC
0 Comment
Characteristics
Output pipe diameter:
1"
Producer:
FLUIMAC
Housing material:
PP
Material of O-ring:
EPDM
Power supply:
3х380 V, 50 Hz
Max. head, m:
14
Rate of turn, rpm:
2 900
See all
Documentation
Categories
Magnetic drive pumps, Centrifugal industrial pumps
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: CM10PDTA981IE-3h-0.55
$1,545.77 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Magnetic coupling pump 10 DM PP, EPDM, 0.55 kW, 85 mm Magnetic coupling pump 10 DM PP, EPDM, 0.55 kW, 85 mm
Pre-order only
$1,180.19
FLUIMAC COMPASS CM 6 PVDF magnetic coupling pump for chemically aggressive liquids, 0.25 kW, 380V FLUIMAC COMPASS CM 6 PVDF magnetic coupling pump for chemically aggressive liquids, 0.25 kW, 380V
Pre-order only
$1,785.86
Magnetic coupling pump 10 DM PP, EPDM, 0.55 kW, 98 mm Magnetic coupling pump 10 DM PP, EPDM, 0.55 kW, 98 mm
Pre-order only
$1,180.19
Magnetic coupling pump 10 DM PP, VITON, 0.55 kW Magnetic coupling pump 10 DM PP, VITON, 0.55 kW
Pre-order only
$1,180.19
FLUIMAC COMPASS CM 10 PVDF magnetic coupling pump for chemicals, 0.55 kW, 380V FLUIMAC COMPASS CM 10 PVDF magnetic coupling pump for chemicals, 0.55 kW, 380V
Pre-order only
$2,047
Magnetic coupling pump 10 DM PP, VITON, 0.55 kW (impeller 85) Magnetic coupling pump 10 DM PP, VITON, 0.55 kW (impeller 85)
Pre-order only
$1,180.19
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$123.52
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,156.03
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$82.35
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$365.65
Control panel for pump, 4 kW Control panel for pump, 4 kW
$427.46
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$309.30
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$225.79
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$131.26
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$141.53
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$164.70
Control panel for pump, 3 kW Control panel for pump, 3 kW
$415.77
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$200.71
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$483.25
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$236.74
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$441.80
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$301.99
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$448.62
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$422.86
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,724.41
Control panel for pump, 11 kW Control panel for pump, 11 kW
$463.25
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$748.87
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$62.01
Control panel for pump, 15 kW Control panel for pump, 15 kW
$620.95
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$22.57
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$292.50
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards

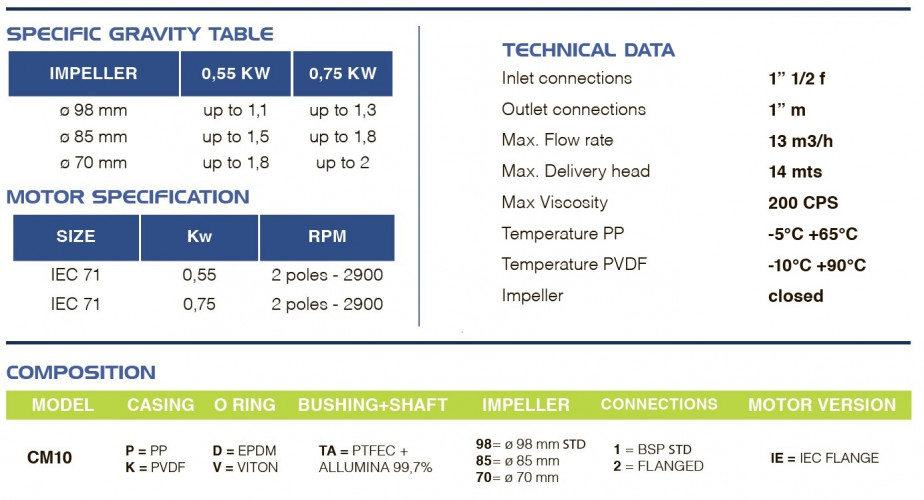

Features Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
Output pipe diameter
1"
Producer
FLUIMAC
Housing material
PP
Material of O-ring
EPDM
Power supply
3х380 V, 50 Hz
Max. head, m
14
Rate of turn, rpm
2 900
Feed height, m
14
Operating temperature
-5°C + 65°C
Power capacity, kW
0,55
Pump capacity, cu.m/hour
13
Flow rate, l/min
216.7
Explosion protection
No
Max.flow rate, m3/h
13
Input pipe diameter
1" 1/2
Material
PP
Serial number of the pump
COMPASS
Country of Origin
Italy
PumpType
with magnetic coupling
Drive Type
electric
Installation Type
horizontal
Type of configuration
with engine
Availability of spare parts
yes
Warranty, months
12
Description Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V

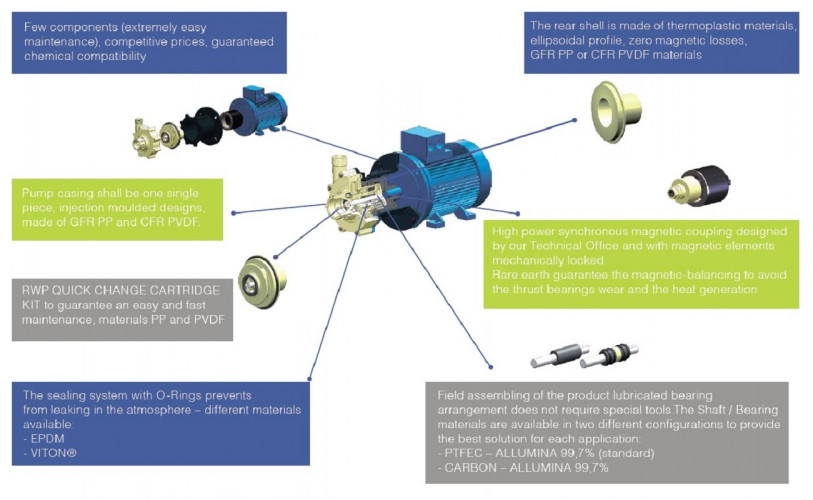

The magnetic coupled centrifugal pumps of the COMPASS series from the Italian company FLUIMAC are suitable for pumping highly aggressive liquids. Thanks to their innovative system, the COMPASS pumps reduce the risk of leakage and emissions as well as maintenance costs. The motion is transmitted via magnetic couplings without any mechanical seals, a design that guarantees maximum safety and efficiency. The pumped liquid must be clean and free of solid particles in suspension. Separating the liquid chamber from the atmosphere by means of an insulating jacket is the best solution for pumping aggressive chemicals, highly purified liquids and liquids that are difficult to seal. Hermetic pumps without seals made of thermoplastic injection moulded are the best solution for light duty applications.
Documentation Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V

Download instructions, catalog for Magnetic coupled pump FLUIMAC COMPASS CM 10 PP, 0.55 kW, 380V
