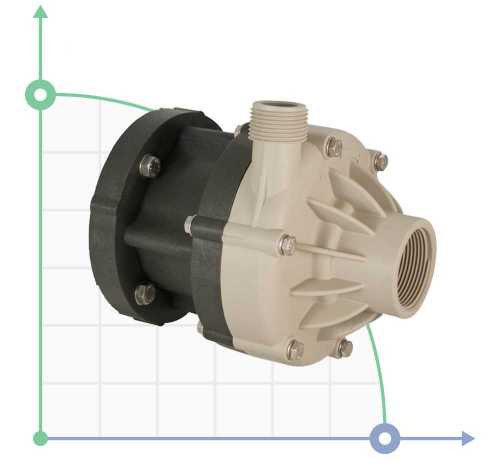

A centrifugal pump with magnetic coupling DM10 PP

Brand:
DEBEM
Characteristics
Output pipe diameter:
1”
Producer:
DEBEM
Power supply:
3х380 V, 50 Hz

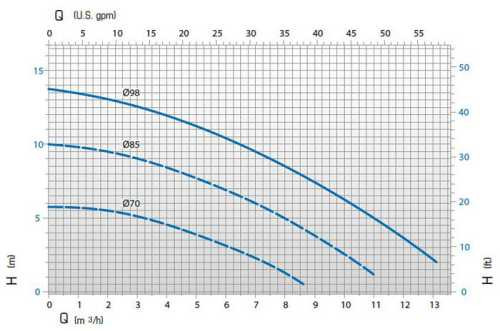

Max. head, m:
13.8
Feed height, m:
13.8
Max.viscosity, cPs:
150
Model:
DM10
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: DM10P-SV1BE080без двигуна
$744.47 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
Also buy with this product
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features A centrifugal pump with magnetic coupling DM10 PP
Output pipe diameter
1”
Producer
DEBEM
Power supply
3х380 V, 50 Hz
Max. head, m
13.8
Feed height, m
13.8
Max.viscosity, cPs
150
Model
DM10
Pump capacity, cu.m/hour
13
Seal
No
Max.flow rate, m3/h
13
Impeller diameter, mm
98
Max.temperature, C
65
Material of flow channel
PP
Input pipe diameter
1 1/2”
Material
PP
Max.medium temperature, Celsius degree
65
Serial number of the pump
DM
Country of Origin
Italy
PumpType
with magnetic coupling
Drive Type
electric
Availability of spare parts
yes
Weight, kg
8,6
Description A centrifugal pump with magnetic coupling DM10 PP
Centrifugal pump with a magnetic coupling DM10 PP unpowered. Hermetic pumps with a magnetic coupling used for pumping corrosive, toxic or inflammable liquids, and liquids containing particles. Several magnets drives the pump in motion, the external magnet located on the shaft, transmits the motion to the inner magnet embedded in the impeller, which is hermetically isolated. The impeller is mounted on the pump shaft, therefore, no seal, which prevents leakage of the pumped fluid as a consequence of the seals wear. Pump head consists of several components, simplifying thus maintenance. Standard pump performance materials: polypropylene (PP) and polivinilindenftorid (PVDF). These pumps can not run "dry". Pumping contaminated liquids leads to a reduction of pump service life.
