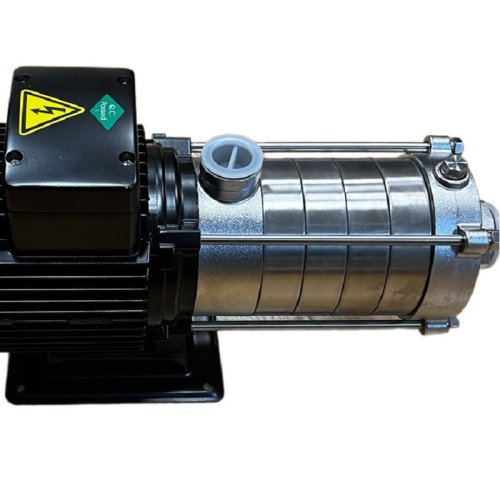

High-pressure pump for hot water DW(S)5-50/110, AISI304, 380V/50Hz, horizontal multistage
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
G1
Producer:
BTS Engineering
Power supply:
3х380 V, 50 Hz
Max. head, m:
48
Rate of turn, rpm:
2 900
Feed height, m:
48

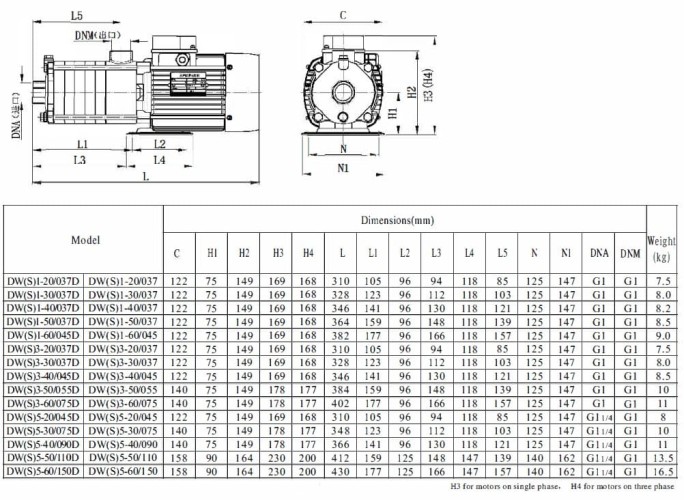

Dimensions, mm:
412x162x200
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards

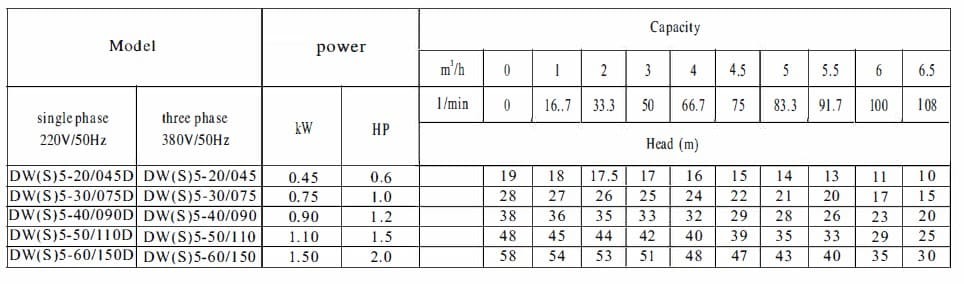

Features High-pressure pump for hot water DW(S)5-50/110, AISI304, 380V/50Hz, horizontal multistage
Output pipe diameter | G1 |
Producer | BTS Engineering |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 48 |
Rate of turn, rpm | 2 900 |
Feed height, m | 48 |
Dimensions, mm | 412x162x200 |
Power capacity, kW | 1,1 |
Pump capacity, cu.m/hour | 6.5 |
Explosion protection | No |
Max.flow rate, m3/h | 6.5 |
Max.temperature, C | 80 |
Material of flow channel | AISI 304 stainless steel |
Input pipe diameter | G1 1/4 |
Material | AISI 304 stainless steel |
Serial number of the pump | DW(S) |
Country of Origin | China |
PumpType | multi-stage |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Weight, kg | 13,5 |
Description High-pressure pump for hot water DW(S)5-50/110, AISI304, 380V/50Hz, horizontal multistage

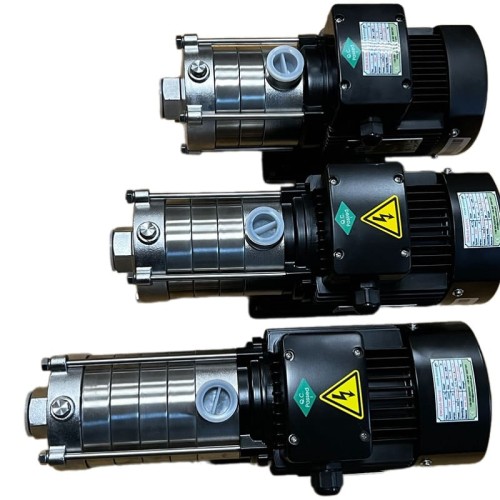

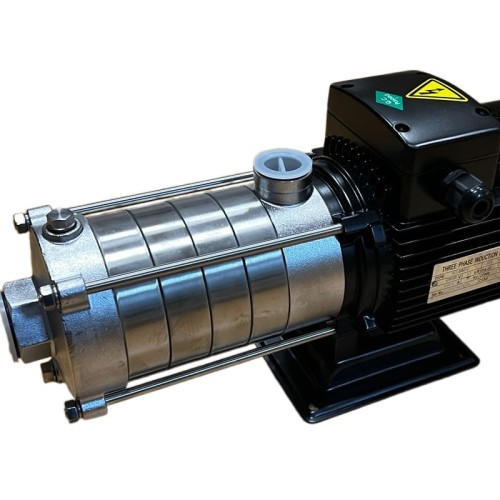

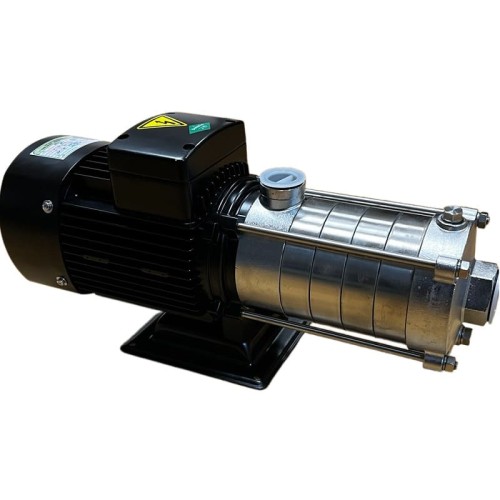

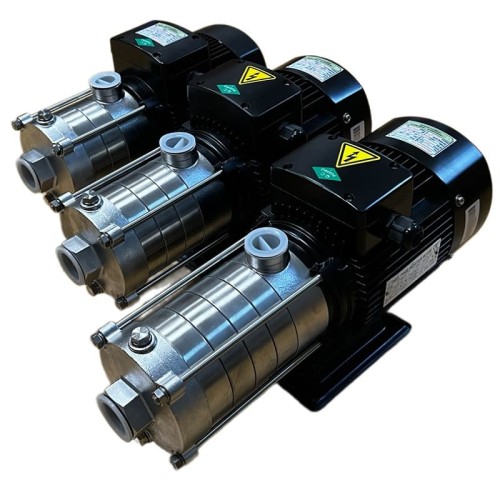

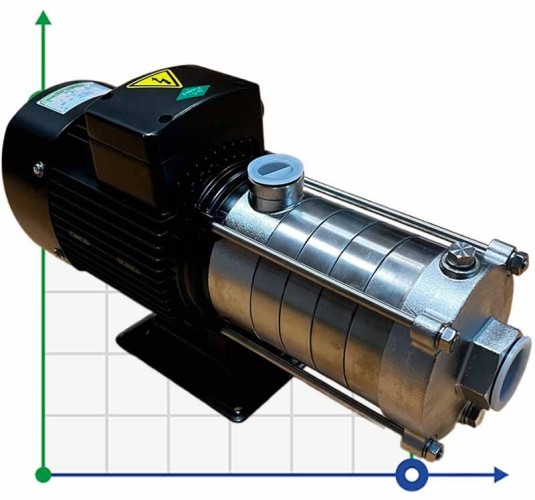

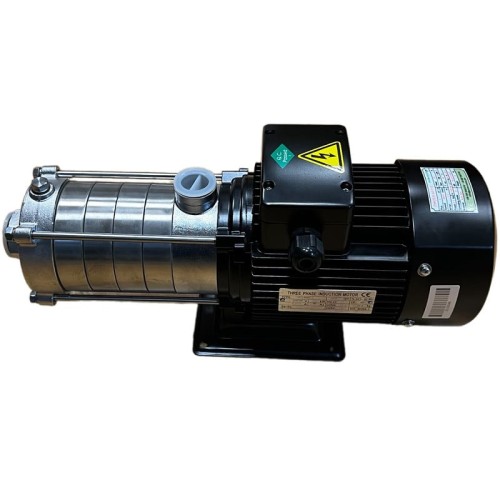

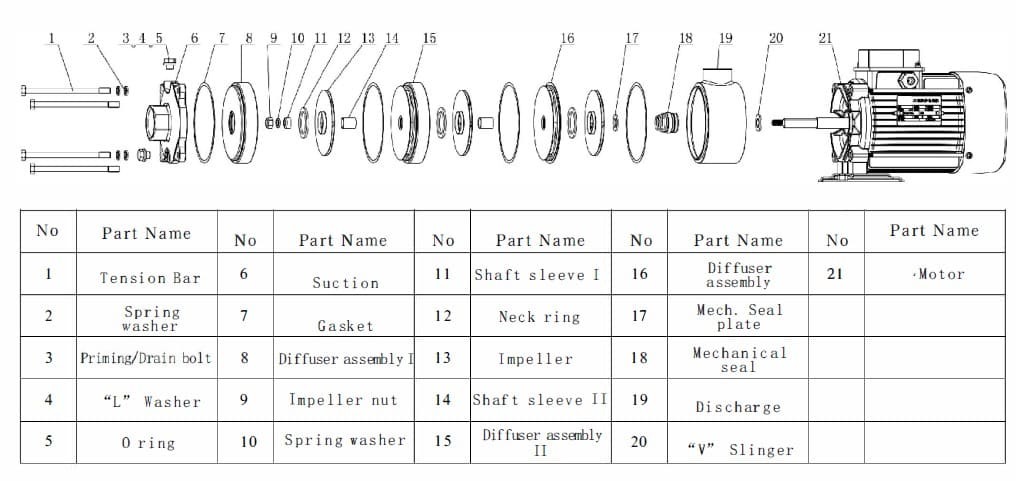

Multi-stage horizontal stainless steel centrifugal pump for hot water DW(S). Applications: water supply systems, boiler feeding, water treatment systems, pharmaceutical and food industry, chemical processing industry, washing and sprinkling. Suitable for transporting clean and non-corrosive liquids that are not aggressive to AISI304 stainless steel. The casing, impeller, back cover, pump shaft and diffusers are made of AISI304 stainless steel.
Liquid temperature: -15C ~ + 80C.
Axial suction, radial discharge. This pump can be used at full head without overloading the motor.
Documentation High-pressure pump for hot water DW(S)5-50/110, AISI304, 380V/50Hz, horizontal multistage
Download instructions, catalog for High-pressure pump for hot water DW(S)5-50/110, AISI304, 380V/50Hz, horizontal multistage
