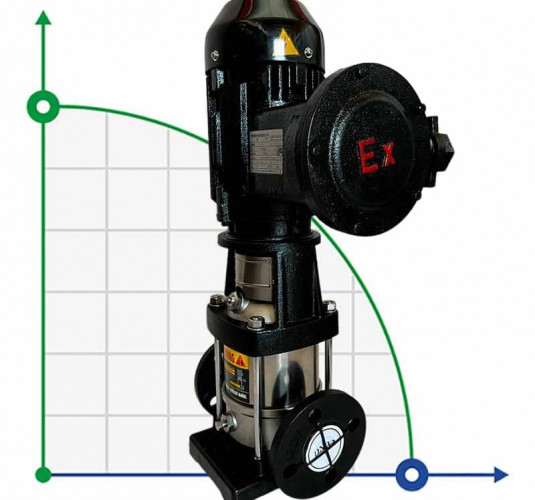

Multistage pump BVS 2-15, 1,5kW, AISI 304, Ex explosion-proof
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
DN25
Producer:
BTS Engineering
Housing material:
AISI 304 stainless steel
Impeller material:
AISI 304 stainless steel
Nom.head, m:
112
Power supply:
3х380 V, 50 Hz
Max. head, m:
134
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Multistage pump BVS 2-15, 1,5kW, AISI 304, Ex explosion-proof
Output pipe diameter | DN25 |
Producer | BTS Engineering |
Housing material | AISI 304 stainless steel |
Impeller material | AISI 304 stainless steel |
Nom.head, m | 112 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 134 |
Rate of turn, rpm | 2 900 |
Feed height, m | 134 |
Nom.flow rate, m3/h | 2 |
Power capacity, kW | 1,5 |
Protection | IP55 |
Pump capacity, cu.m/hour | 3.5 |
Explosion protection | Yes |
Seal | Mechanical Seal |
Max.flow rate, m3/h | 3.5 |
Max.temperature, C | 120 |
Material of flow channel | AISI 304 stainless steel |
Input pipe diameter | DN25 |
Material | AISI 304 stainless steel |
Serial number of the pump | BVS |
Country of Origin | China |
PumpType | multi-stage |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | greenhouses, hot water, pressure increase, water treatment, fountain, steam boiler, hydroponics, caustic, sinks, irrigation, aeroponics, flushing, water, osmosis, membranes, alkalis, water supply, boiler, nozzles, water treatment |
Analogue for | Varna, Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, EBARA EVM, EBARA EVMW, Ebara EVMS, Speroni RVM |
Weight, kg | 36 |
Description Multistage pump BVS 2-15, 1,5kW, AISI 304, Ex explosion-proof

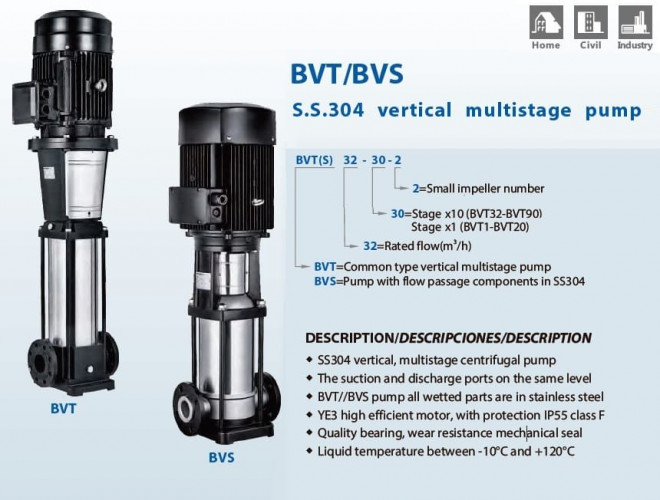

BVS stainless steel multistage pumps are suitable for industrial processing systems, washing and cleaning systems, acid and alkali transfer, filtration, pressure boosting, water treatment, air conditioning, irrigation, and fire protection systems.
Documentation Multistage pump BVS 2-15, 1,5kW, AISI 304, Ex explosion-proof
Download instructions, catalog for Multistage pump BVS 2-15, 1,5kW, AISI 304, Ex explosion-proof
