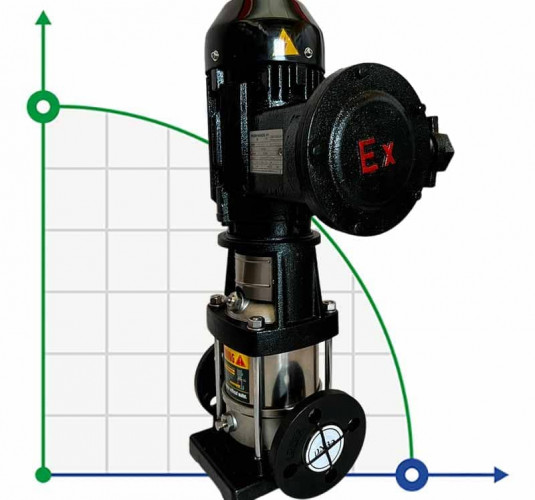

BVS 32-40-2, 7.5 kW, AISI 304, Ex multistage pump
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
DN65
Producer:
BTS Engineering
Housing material:
AISI 304 stainless steel
Impeller material:
AISI 304 stainless steel
Nom.head, m:
46
Power supply:
3х380 V, 50 Hz
Max. head, m:
65
See all
Documentation
Categories
Favorite
Compare

Products from the same category
Also buy with this product




Features BVS 32-40-2, 7.5 kW, AISI 304, Ex multistage pump
Output pipe diameter | DN65 |
Producer | BTS Engineering |
Housing material | AISI 304 stainless steel |
Impeller material | AISI 304 stainless steel |
Nom.head, m | 46 |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 65 |
Rate of turn, rpm | 2 900 |
Feed height, m | 65 |
Nom.flow rate, m3/h | 32 |
Power capacity, kW | 7,5 |
Protection | IP55 |
Pump capacity, cu.m/hour | 40 |
Explosion protection | Yes |
Seal | Mechanical Seal |
Max.flow rate, m3/h | 40 |
Max.temperature, C | 120 |
Material of flow channel | AISI 304 stainless steel |
Input pipe diameter | DN65 |
Material | AISI 304 stainless steel |
Serial number of the pump | BVS |
Country of Origin | China |
PumpType | multi-stage |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | pressure increase, water treatment, fountain, steam boiler, hydroponics, caustic, sinks, irrigation, aeroponics, greenhouses, water, hot water, flushing, alkalis, osmosis, water supply, boiler, nozzles, water treatment, membranes |
Analogue for | Varna, Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, EBARA EVM, EBARA EVMW, Ebara EVMS, Speroni RVM |

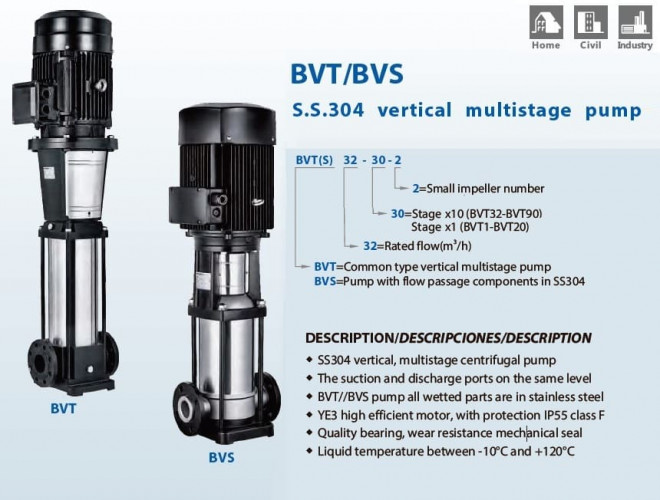

Description BVS 32-40-2, 7.5 kW, AISI 304, Ex multistage pump
Багатоступінчасті насоси BVS з нержавіючої сталі AISI 304 підходять для систем промислової обробки, систем мийки та очищення, перекачування кислот і лугів, фільтрації, підвищення тиску, очищення води, кондиціонування, зрошення, систем протипожежного захисту.
Documentation BVS 32-40-2, 7.5 kW, AISI 304, Ex multistage pump
Download instructions, catalog for BVS 32-40-2, 7.5 kW, AISI 304, Ex multistage pump
