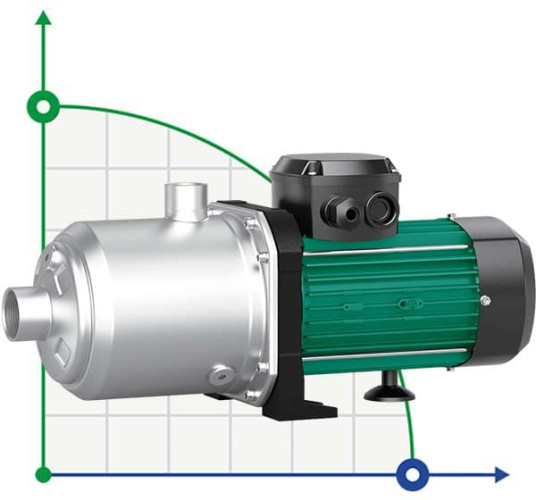

MEDANA CH1-L.1604-1/E/E / 10T multi-stage pump WILO for water supply
Brand:
WiloCharacteristics
Output pipe diameter:
G1 1/2
Producer:
Wilo
Power supply:
3х380 V, 50 Hz
Max. head, m:
52
Rate of turn, rpm:
2900
Feed height, m:
52
Power capacity, kW:
2,5
See all
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features MEDANA CH1-L.1604-1/E/E / 10T multi-stage pump WILO for water supply
Output pipe diameter | G1 1/2 |
Producer | Wilo |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 52 |
Rate of turn, rpm | 2900 |
Feed height, m | 52 |
Power capacity, kW | 2,5 |
Protection | IP55 |
Explosion protection | No |
Seal | Mechanical Seal |
Max.flow rate, m3/h | 20.5 |
Max.temperature, C | 120 |
Shaft material | нержавіюча сталь |
Material of flow channel | AISI 304 stainless steel |
Input pipe diameter | G 2 |
Country of Origin | Germany |
PumpType | multi-stage |
Drive Type | electric |
Installation Type | horizontal |
Type of configuration | with engine |
Weight, kg | 20,9 |
Description MEDANA CH1-L.1604-1/E/E / 10T multi-stage pump WILO for water supply
Suction centrifugal pump of horizontal design with high hydraulic power. Its compact and robust construction with corrosion-resistant components, as well as its ability to use at ambient temperatures up to 50 °C, provide a wide range of applications for integration into larger installations.
The pump is suitable for water supply and pressure boosting installations, industrial circulation systems, process water circulation and cooling water. It can also be used in washing plants and for irrigation.
Features: easy and fast commissioning and maintenance thanks to the large holes for filling and emptying the pump; high reliability in terms of strength and low noise thanks to the split ring and corrosion-resistant cataphoresis-coated lamp; compact design for easy integration; all hydraulic parts and parts in contact with the pumpstainless steel; potable water tolerance for all components in contact with the pumped medium (EPDM version); meets UL certification requirements.
