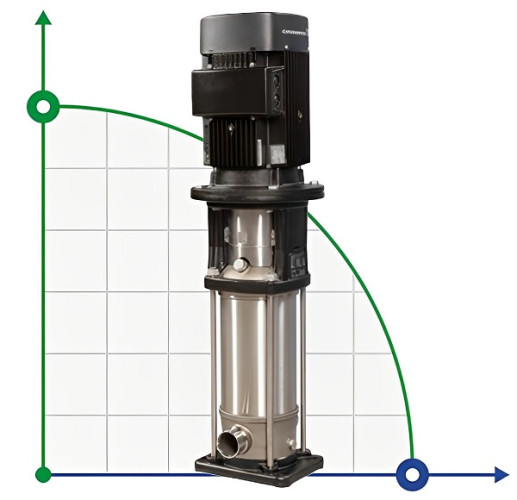

Grundfos CRN 10-22 APAE-HQQE vertical multistage pump
Brand:
GRUNDFOS0 Comment
Characteristics
Output pipe diameter:
DN 50
Producer:
GRUNDFOS
Impeller material:
AISI 304 stainless steel
Power supply:
3х380 V, 50 Hz
Max. head, m:
180.6
Rate of turn, rpm:
2900
Feed height, m:
180.6
See all
Categories
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Grundfos CRN 10-22 APAE-HQQE vertical multistage pump
Output pipe diameter | DN 50 |
Producer | GRUNDFOS |
Impeller material | AISI 304 stainless steel |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 180.6 |
Rate of turn, rpm | 2900 |
Feed height, m | 180.6 |
Nom.flow rate, m3/h | 10 |
Power capacity, kW | 7,5 |
Pump capacity, cu.m/hour | 10 |
Max.temperature, C | 120 |
Input pipe diameter | DN 50 |
Country of Origin | Denmark |
PumpType | multi-stage |
Drive Type | electric |
Installation Type | vertical |
Weight, kg | 108 |
Description Grundfos CRN 10-22 APAE-HQQE vertical multistage pump
The Grundfos CRN pump is a vertical, multistage centrifugal pump with inlet and outlet openings on the same level (internal). The materials of the pump that come into contact with the liquid are made of high quality stainless steel. Cartridge shaft seal provides high reliability, safe use, easy access and maintenance. Power is transmitted through a rigid coupling. Pipes are connected using PJE couplings. The pump is equipped with a 3-phase asynchronous motor with fan cooling.
The pump is suitable for water treatment, fertigation, chemistry and dosing.
