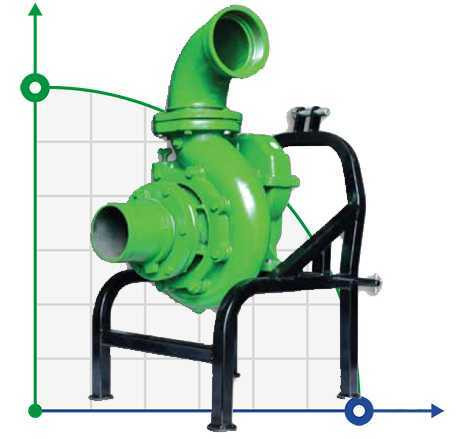

Pump driven from the PTO of the tractor MTZ-P 150-125/350
Brand:
EklerCharacteristics
Output pipe diameter:
5"
Producer:
Ekler
The rotary speed of PTO, rpm:
350
Quantity of splines:
6x29x35
Max. head, m:
32
Feed height, m:
32
The diameter of splines, mm:
34,87
See all
Documentation
Favorite
Compare
Products from the same category
Pump driven from the PTO of the tractor MTZ-P 50/350
In stock
$1,303.27
Pump driven from the PTO of the tractor MTZ-P 125/450
In stock
$3,532.55
Pump driven from the PTO of the tractor MTZ-P 125-100/450
Pre-order only
$3,407.83
PTO-driven pump MTZ-P 150/420 for the UAN (urea-ammonia mixtures)
In stock
$4,252.77
Pump driven from the PTO of the tractor MTZ-P 100-90S
In stock
$4,252.77
Pump driven from the PTO of the tractor MTZ-UK 50T
Pre-order only
$1,797.27
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Pump driven from the PTO of the tractor MTZ-P 150-125/350
Output pipe diameter | 5" |
Producer | Ekler |
The rotary speed of PTO, rpm | 350 |
Quantity of splines | 6x29x35 |
Max. head, m | 32 |
Feed height, m | 32 |
The diameter of splines, mm | 34,87 |
Pump capacity, cu.m/hour | 280 |
Max.flow rate, m3/h | 280 |
Material of flow channel | cast iron |
Input pipe diameter | 6" |
Material | cast iron |
The capacity of the shaft, k.s. | 31,9 |
Country of Origin | Turkey |
PumpType | powered by a PTO |
Drive Type | mechanical from PTO |
Availability of spare parts | yes |
Warranty, months | 12 |
Application | liquid fertilizer spraying, firefighting, filling containers, glaze, filling reservoirs |
Analogue for | GEA, Rovatti, VARISCO, GPA, Svahen, ОМЗ Пинск, FAMOS, Kömag, Comet, BBA pumps, Yuzuak Sprinklers Irrigation, Caprari |
Weight, kg | 239 |
Description Pump driven from the PTO of the tractor MTZ-P 150-125/350
Application: pump for irrigation, irrigation, water supply, sprinkler, drip irrigation, fire fighting, organization of watering for cattle, fertilizer supply, CAS, ammonia water.
The pump driven by the power take-off shaft (PTO) of the MTZ-P 150 tractor with a shaft speed of 350 rpm and a shaft power of 31.9 HP is one of the most reliable and popular in agriculture. This pump can be used to pump a variety of liquids, ranging from clean or slightly contaminated water to urea-ammonia mixtures. Such a pump can be used for filling containers, watering, spraying liquid fertilizers and plant protection products.
The pump is mounted on the rear hitch of the tractor and provides a working fluid supply height of up to 32 m. the pump is Driven from the tractor's power take-off shaft through the driveshaft. Given that the PTO of the tractor has a gearbox for adjusting the speed of the impeller, the pump capacity can reach 280 cubic meters / hour.
Pumps of this type can be aggregated on tractors of domestic and imported production, such as MTZ, YUMZ, KHTZ, Deutz-Fahr, John Deere, Case IH, Massey Ferguson, New Holland (USA), Fendt, Claas (Germany), etc.
