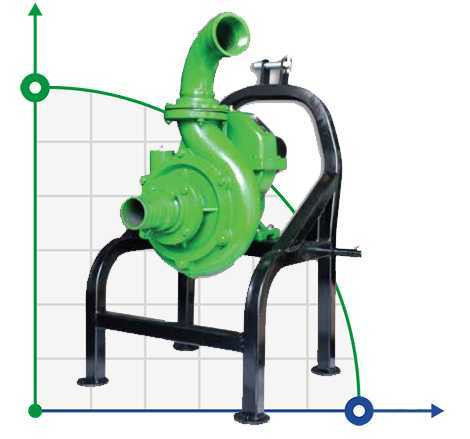

Pump driven from the PTO of the tractor MTZ-P 90/450
Brand:
EklerCharacteristics
Output pipe diameter:
3"
Producer:
Ekler
The rotary speed of PTO, rpm:
450
Quantity of splines:
6x29x35
Max. head, m:
59
Feed height, m:
59
The diameter of splines, mm:
34,87
See all
Documentation
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Pump driven from the PTO of the tractor MTZ-P 90/450
Output pipe diameter | 3" |
Producer | Ekler |
The rotary speed of PTO, rpm | 450 |
Quantity of splines | 6x29x35 |
Max. head, m | 59 |
Feed height, m | 59 |
The diameter of splines, mm | 34,87 |
Pump capacity, cu.m/hour | 94 |
Max.flow rate, m3/h | 94 |
Material of flow channel | cast iron |
Input pipe diameter | 3" |
Material | cast iron |
Country of Origin | Turkey |
PumpType | powered by a PTO |
Drive Type | mechanical from PTO |
Availability of spare parts | yes |
Warranty, months | 12 |
Application | liquid fertilizer spraying, firefighting, filling containers, glaze, filling reservoirs |
Analogue for | GEA, Rovatti, VARISCO, GPA, Svahen, ОМЗ Пинск, FAMOS, Kömag, Comet, BBA pumps, Yuzuak Sprinklers Irrigation, Caprari |
Weight, kg | 96 |
Description Pump driven from the PTO of the tractor MTZ-P 90/450
Application: pump for irrigation, irrigation, water supply, sprinkler, drip irrigation, fire fighting, organization of watering for cattle, fertilizer supply, CAS, ammonia water.
The MTZ-P 90 tractor power take-off shaft (PTO) pump with a shaft speed of 450 rpm is one of the most reliable and popular in agriculture. This pump can be used to pump a variety of liquids, ranging from clean or slightly contaminated water to urea-ammonia mixtures. Such a pump can be used for filling containers, watering, spraying liquid fertilizers and plant protection products.
The pump is mounted on the rear hitch of the tractor and provides a working fluid supply height of up to 59 m. the pump is Driven from the tractor's power take-off shaft through the driveshaft. Given that the PTO of the tractor has a gearbox for adjusting the speed of the impeller, the pump capacity can reach 94 cubic meters / hour.
Pumps of this type can be aggregated on tractors of domestic and imported production, such as MTZ, YUMZ, KHTZ, Deutz-Fahr, John Deere, Case IH, Massey Ferguson, New Holland (USA), Fendt, Claas (Germany), etc.
Documentation Pump driven from the PTO of the tractor MTZ-P 90/450
Download instructions, catalog for Pump driven from the PTO of the tractor MTZ-P 90/450
