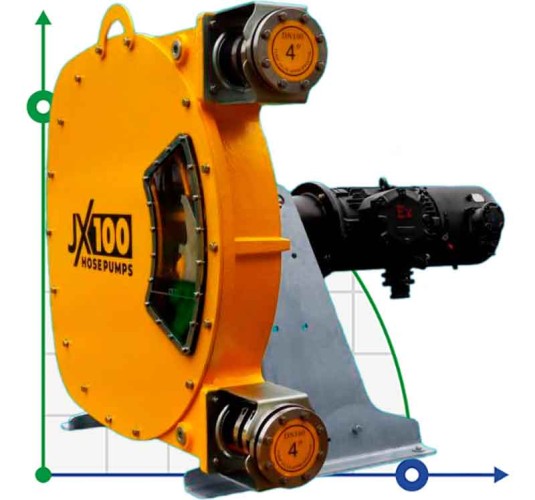

Industrial hose pump JXHIN-100-CI+ABS Plastic-EPDM-P, 42 m3/h, 15 kW, 16 bar, 380V
Industrial hose pump JXHIN-100-CI+ABS Plastic-EPDM-P, 42 m3/h, 15 kW, 16 bar, 380V
Industrial hose pump JXHIN-100-CI+ABS Plastic-EPDM-P, 42 m3/h, 15 kW, 16 bar, 380V
Industrial hose pump JXHIN-100-CI+ABS Plastic-EPDM-P, 42 m3/h, 15 kW, 16 bar, 380V
Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
4"
Producer:
BTS Engineering
Housing material:
Сast iron
Contact material:
ABS Plastic
Power supply:
3х380 V, 50 Hz
Max. head, m:
160
Rate of turn, rpm:
35
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Industrial hose pump JXHIN-100-CI+ABS Plastic-NR-P, 42 m3/h, 15 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-100-CI+ABS Plastic-NBR-P, 42 m3/h, 15 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-100-CI+ABS Plastic-F-NR-P, 42 m3/h, 15 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-100-CI+ABS Plastic-CSM-P, 42 m3/h, 15 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-100-CI+ABS Plastic-F-NBR-P, 42 m3/h, 15 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-100-CI+SS-NR-P, 42 m3/h, 15 kW, 16 bar, 380V
Pre-order only
Price on request
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Industrial hose pump JXHIN-100-CI+ABS Plastic-EPDM-P, 42 m3/h, 15 kW, 16 bar, 380V
Output pipe diameter | 4" |
Producer | BTS Engineering |
Housing material | Сast iron |
Contact material | ABS Plastic |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 160 |
Rate of turn, rpm | 35 |
Feed height, m | 160 |

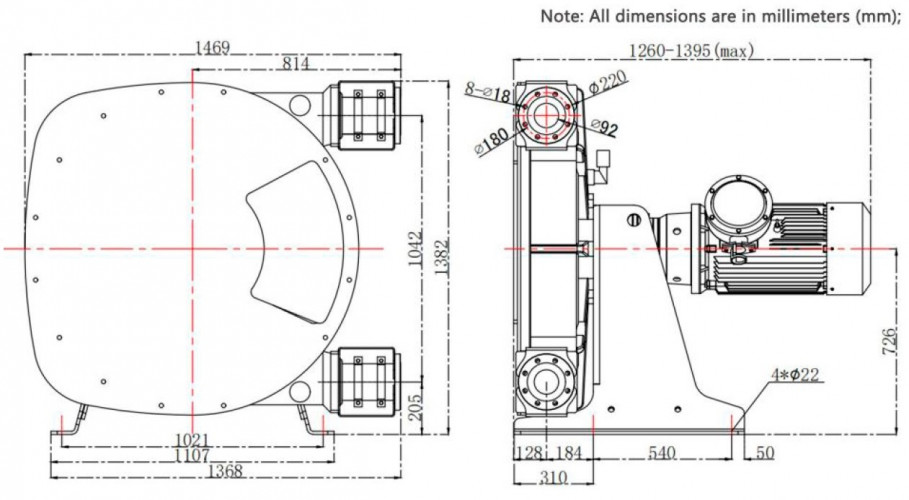

Dimensions, mm | 1395x1469x1382 |
Nom.flow rate, m3/h | 42 |
Power capacity, kW | 15 |
Max.dry suction head, m | 9,5 |
Material for working hoos | EPDM |
Pump capacity, cu.m/hour | 42 |
Max.flow rate, m3/h | 60 |
Flow rate, l/h | 42000 |
Max.temperature, C | 100 |
Pressure, bar | 16 |
Input pipe diameter | 4" |
Material | cast iron |
Serial number of the pump | JXHIN |
Country of Origin | China |
PumpType | peristaltic |
Drive Type | electric |
Weight, kg | 1 300 |
Description Industrial hose pump JXHIN-100-CI+ABS Plastic-EPDM-P, 42 m3/h, 15 kW, 16 bar, 380V
The JXHIN series industrial hose pump is used for pumping abrasive slurries, caustic acids, large solids, gas-liquid mixtures, and highly viscous liquids.
Characteristics of the hose peristaltic pump: dry start without damage, leak-proof, no gaskets, valves, diaphragms, etc.
Stable flow, accurate and repeatable measurement. Accuracy ± 1%.
No auxiliary equipment, check valves or water flushing systems. Reversible operation, particles can safely exit the suction or discharge pipe.
Minimal maintenance - simply replace the hose.
Documentation Industrial hose pump JXHIN-100-CI+ABS Plastic-EPDM-P, 42 m3/h, 15 kW, 16 bar, 380V
Download instructions, catalog for Industrial hose pump JXHIN-100-CI+ABS Plastic-EPDM-P, 42 m3/h, 15 kW, 16 bar, 380V
