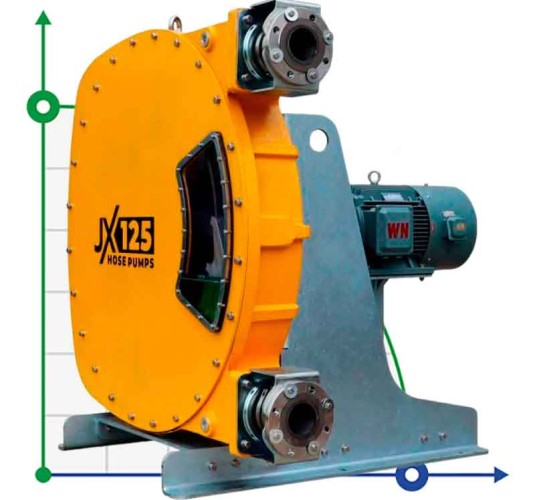

Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V

Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Brand:
BTS Engineering
0 Comment
Characteristics
Output pipe diameter:
5"
Producer:
BTS Engineering
Housing material:
Сast iron
Contact material:
Ttitanium
Power supply:
3х380 V, 50 Hz
Max. head, m:
160
Rate of turn, rpm:
33
See all
Documentation
Categories
Peristaltic pumps
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1043216
Price on request
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Peristaltic (hose) pump FLUIMAC HELIOS ASP 10 FX 47 l/h, 0.18 kW, 23 rpm Peristaltic (hose) pump FLUIMAC HELIOS ASP 10 FX 47 l/h, 0.18 kW, 23 rpm
Pre-order only
$3,837.66
Peristaltic (hose) pump FLUIMAC HELIOS ASP 10 FX 72 l/h, 0.18 kW, 35 rpm Peristaltic (hose) pump FLUIMAC HELIOS ASP 10 FX 72 l/h, 0.18 kW, 35 rpm
Pre-order only
$3,837.66
Industrial hose pump JXHIN-125-CI+Titanium-NBR-P, 66 m3/h, 22 kW, 16 bar, 380V Industrial hose pump JXHIN-125-CI+Titanium-NBR-P, 66 m3/h, 22 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-125-CI+Titanium-F-NR-P, 66 m3/h, 22 kW, 16 bar, 380V Industrial hose pump JXHIN-125-CI+Titanium-F-NR-P, 66 m3/h, 22 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-125-CI+Titanium-EPDM-P, 66 m3/h, 22 kW, 16 bar, 380V Industrial hose pump JXHIN-125-CI+Titanium-EPDM-P, 66 m3/h, 22 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-125-CI+Titanium-F-NBR-P, 66 m3/h, 22 kW, 16 bar, 380V Industrial hose pump JXHIN-125-CI+Titanium-F-NBR-P, 66 m3/h, 22 kW, 16 bar, 380V
Pre-order only
Price on request
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$123.52
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,156.03
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$82.35
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$365.65
Control panel for pump, 4 kW Control panel for pump, 4 kW
$427.46
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$309.30
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$225.79
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$131.26
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$141.53
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$164.70
Control panel for pump, 3 kW Control panel for pump, 3 kW
$415.77
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$200.71
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$483.25
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$236.74
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$441.80
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$301.99
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$448.62
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$422.86
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,724.41
Control panel for pump, 11 kW Control panel for pump, 11 kW
$463.25
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$748.87
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$62.01
Control panel for pump, 15 kW Control panel for pump, 15 kW
$620.95
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$22.57
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$292.50
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
Output pipe diameter
5"
Producer
BTS Engineering
Housing material
Сast iron
Contact material
Ttitanium
Power supply
3х380 V, 50 Hz
Max. head, m
160
Rate of turn, rpm
33
Feed height, m
160

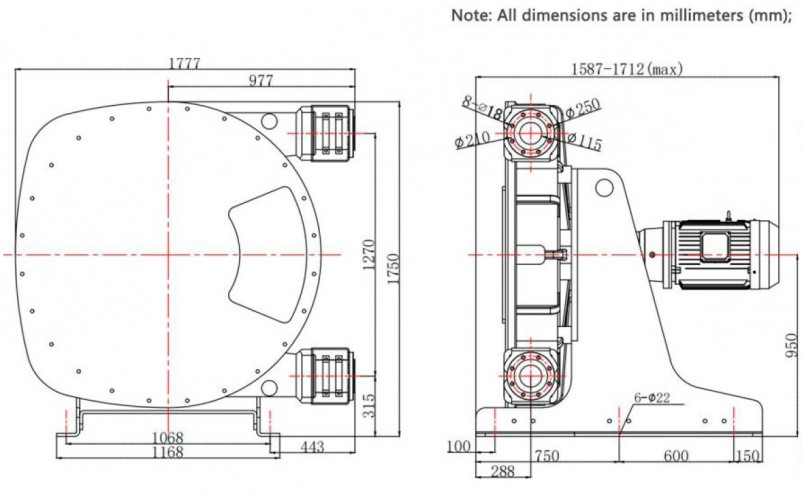

Dimensions, mm
1712x1777x1750
Nom.flow rate, m3/h
66
Power capacity, kW
22
Max.dry suction head, m
9,5
Material for working hoos
CSM
Max.diameter of solid inclusions, mm
21
Pump capacity, cu.m/hour
66
Max.flow rate, m3/h
100
Flow rate, l/h
66000
Max.temperature, C
85
Pressure, bar
16
Input pipe diameter
5"
Material
cast iron
Serial number of the pump
JXHIN
Country of Origin
China
PumpType
peristaltic
Drive Type
electric
Weight, kg
2 400
Description Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
The JXHIN series industrial hose pump is used for pumping abrasive slurries, caustic acids, large solids, gas-liquid mixtures, and highly viscous liquids. Characteristics of the hose peristaltic pump: dry start without damage, leak-proof, no gaskets, valves, diaphragms, etc. Stable flow, accurate and repeatable measurement. Accuracy ± 1%. No auxiliary equipment, check valves or water flushing systems. Reversible operation, particles can safely exit the suction or discharge pipe. Minimal maintenance - simply replace the hose.
Documentation Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V

Download instructions, catalog for Industrial hose pump JXHIN-125-CI+Titanium-CSM-P, 66 m3/h, 22 kW, 16 bar, 380V
