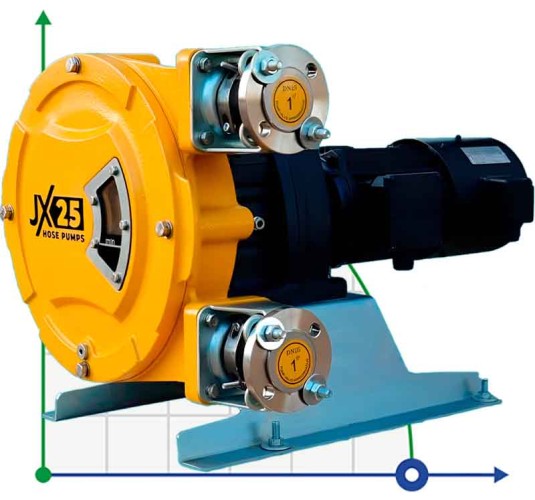

Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V

Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Brand:
BTS Engineering
0 Comment
Characteristics
Output pipe diameter:
1"
Producer:
BTS Engineering
Housing material:
Сast iron
Power supply:
3х380 V, 50 Hz
Max. head, m:
160
Rate of turn, rpm:
44
Feed height, m:
160
See all
Documentation
Categories
Peristaltic pumps
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1043084
Price on request
Favorite
Compare
We deliver anywhere in the world
Products from the same category
Industrial hose pump JXHIN-25-CI-NBR-P, 792 l/h, 1,1 kW, 16 bar, 380V Industrial hose pump JXHIN-25-CI-NBR-P, 792 l/h, 1,1 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-25-CI-F-NR-P, 792 l/h, 1,1 kW, 16 bar, 380V Industrial hose pump JXHIN-25-CI-F-NR-P, 792 l/h, 1,1 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-25-CI-EPDM-P, 792 l/h, 1,1 kW, 16 bar, 380V Industrial hose pump JXHIN-25-CI-EPDM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-25-CI-F-NBR-P, 792 l/h, 1,1 kW, 16 bar, 380V Industrial hose pump JXHIN-25-CI-F-NBR-P, 792 l/h, 1,1 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-25-AL-NR-P, 792 l/h, 1,1 kW, 16 bar, 380V Industrial hose pump JXHIN-25-AL-NR-P, 792 l/h, 1,1 kW, 16 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-25-AL-NBR-P, 792 l/h, 1,1 kW, 16 bar, 380V Industrial hose pump JXHIN-25-AL-NBR-P, 792 l/h, 1,1 kW, 16 bar, 380V
Pre-order only
Price on request
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
$123.52
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
$2,156.03
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
$82.35
PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE PN16 DN80 Stainless steel ball valve AISI 316, seat PTFE
$365.65
Control panel for pump, 4 kW Control panel for pump, 4 kW
$427.46
PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN200 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$309.30
Control panel for pump, 1.5 kW Control panel for pump, 1.5 kW
$225.79
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
$131.26
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
$141.53
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
$164.70
Control panel for pump, 3 kW Control panel for pump, 3 kW
$415.77
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
$200.71
DN50 Thermodynamic flanged condensate trap PN16/1.0619 DN50 Thermodynamic flanged condensate trap PN16/1.0619
$483.25
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
$236.74
Control panel for pump, 5.5 kW Control panel for pump, 5.5 kW
$441.80
Control panel for pump, 2.2 kW Control panel for pump, 2.2 kW
$301.99
Control panel for pump, 7.5 kW Control panel for pump, 7.5 kW
$448.62
DN40 Thermodynamic flanged condensate trap PN16/1.0619 DN40 Thermodynamic flanged condensate trap PN16/1.0619
$422.86
Control panel for pump, 22 kW Control panel for pump, 22 kW
$1,724.41
Control panel for pump, 11 kW Control panel for pump, 11 kW
$463.25
Control panel for pump, 18.5 kW Control panel for pump, 18.5 kW
$748.87
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
$62.01
Control panel for pump, 15 kW Control panel for pump, 15 kW
$620.95
PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM PN16 DN40 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
$22.57
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
$292.50
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
Output pipe diameter
1"
Producer
BTS Engineering
Housing material
Сast iron
Power supply
3х380 V, 50 Hz
Max. head, m
160
Rate of turn, rpm
44
Feed height, m
160

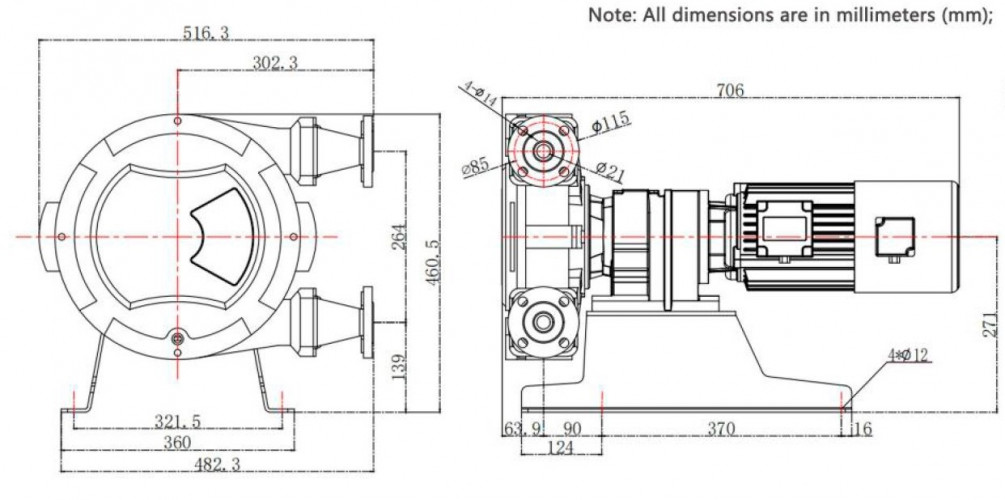

Dimensions, mm
706x516,3x460,5
Nom.flow rate, m3/h
0.792
Power capacity, kW
1,1
Max.dry suction head, m
9,5
Material for working hoos
CSM
Max.diameter of solid inclusions, mm
4,2
Pump capacity, cu.m/hour
0.792
Max.flow rate, m3/h
2.88
Flow rate, l/h
792
Max.temperature, C
85
Pressure, bar
16
Input pipe diameter
1"
Material
cast iron
Serial number of the pump
JXHIN
Country of Origin
China
PumpType
peristaltic
Drive Type
electric
Weight, kg
108
Description Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
The JXHIN series industrial hose pump is used for pumping abrasive slurries, caustic acids, large solids, gas-liquid mixtures, and highly viscous liquids. Characteristics of the hose peristaltic pump: dry start without damage, leak-proof, no gaskets, valves, diaphragms, etc. Stable flow, accurate and repeatable measurement. Accuracy ± 1%. No auxiliary equipment, check valves or water flushing systems. Reversible operation, particles can safely exit the suction or discharge pipe. Minimal maintenance - simply replace the hose.
Documentation Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V

Download instructions, catalog for Industrial hose pump JXHIN-25-CI-CSM-P, 792 l/h, 1,1 kW, 16 bar, 380V
