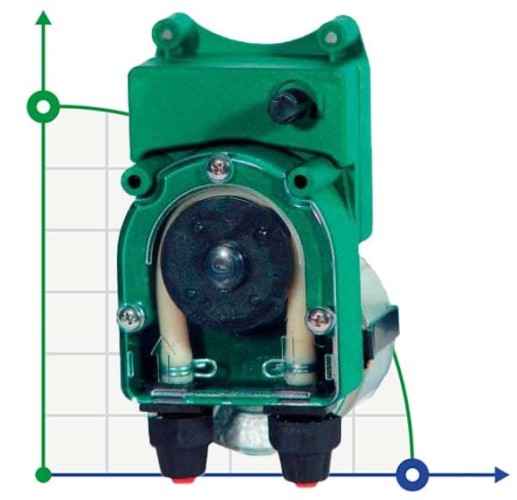

Peristaltic pump F-T 0101 24Vdc SANTOPRENE
Peristaltic pump F-T 0101 24Vdc SANTOPRENE
Peristaltic pump F-T 0101 24Vdc SANTOPRENE
Peristaltic pump F-T 0101 24Vdc SANTOPRENE
Brand:
ETATRON D.S.Characteristics
Producer:
ETATRON D.S.
Input 4-20 mA:
No
Output service relay:
No
Power supply:
24V
Control:
Manual
Pulse input(From Flowmetwer):
No
Support for flow sensor:
No
See all
Categories
Favorite
Compare
Products from the same category
Industrial hose pump JXHIN-10-ABS Plastic-NR-P, 57 l/h, 0,37 kW, 10 bar, 380V
Pre-order only
Price on request
Industrial hose pump JXHIN-10-ABS Plastic-NBR-P, 57 l/h, 0,37 kW, 10 bar, 380V
Pre-order only
Price on request
Перистальтичний насос F 0101 24Vdc SANTOPRENE
Pre-order only
$119.69
Peristaltic dosing pump PK POOL pH 0101 with a built-in pH controller
Pre-order only
$469.01
PK POOL Rx 0101 peristaltic dosing pump with built-in Rx controller
Pre-order only
$469.01
Peristaltic pumps MP-8118.16, monophasic, 230V
Pre-order only
$1,087.97
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Peristaltic pump F-T 0101 24Vdc SANTOPRENE
Producer | ETATRON D.S. |
Input 4-20 mA | No |
Output service relay | No |
Power supply | 24V |
Control | Manual |
Pulse input(From Flowmetwer) | No |
Support for flow sensor | No |
Rate of turn, rpm | 20 |
Hose standard size | 4x7 |
Input foe sensor PH | No |
Mode of operation | Momentary mode |
Input for sensor RX | No |
Flow rate, l/h | 1.1 |
Dosage mode: Continually ON-OFF | So |
Input foe sensor | No |
Pressure, bar | 1 |
Dosage mode: proportional PROP | No |
Input for sensor CD | No |
Product regulation 0-100% | So |
Input foe temperature sensor | No |
Material | SANTOPRENE |
Input for level sensor reagent | No |
Input mA | No |
Serial number of the pump | F-T |
Country of Origin | Italy |
PumpType | dosing peristaltic |
Drive Type | electric |
Availability of spare parts | yes |
Application | acids, chemistry, alkalis, coagulant, antiseptic, liquid powders, solutions |
Analogue for | Emec, FWT, Seko, ASeko, Injecta, AquaViva, Descon trol S |
Description Peristaltic pump F-T 0101 24Vdc SANTOPRENE

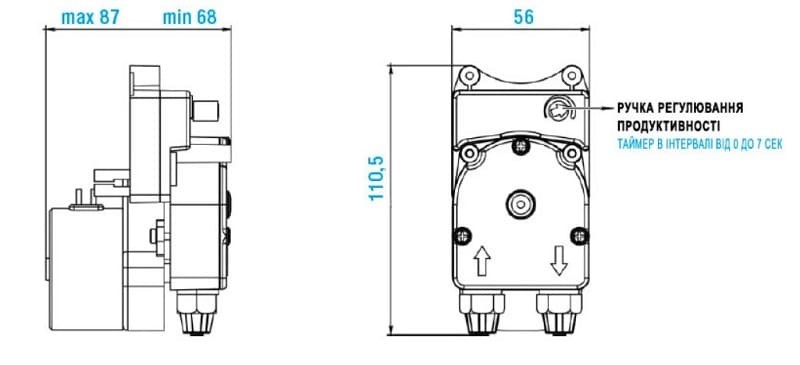

The F-T peristaltic hose pump is a hose pump for the delivery of liquid reagents in non-pressure dosing systems. The pump is not intended for continuous operation. Pumps without casing, easy to mount in cabinets or drawers. Permanent "ON-OFF" dosing mode is activated by turning the potentiometer knob to the right to the maximum. The pump performance is controlled by a timer in the range of 0÷7 seconds. Use the adjustment knob to set the desired percentage of timed operation.

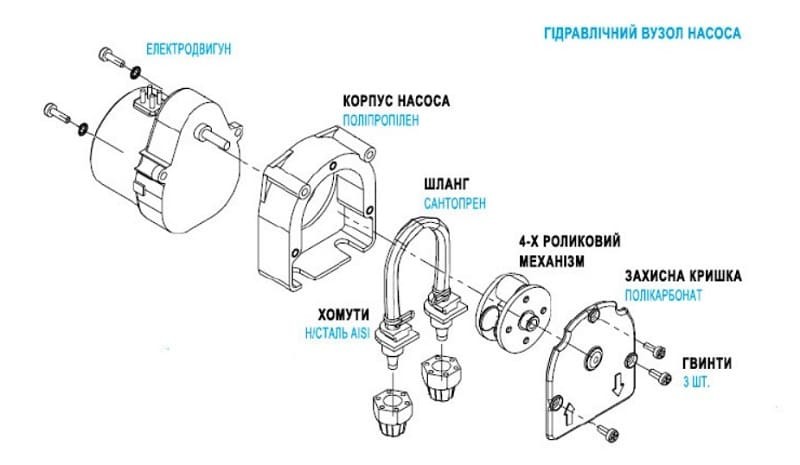

Materials of the pump:
- flow hose made of Santopren is elastic and resistant to liquid chemicals;
- hose size 4x7 mm (ID/OD - inner diameter 4 mm / outer diameter 7 mm), hose length 11 cm;
- 4 rollers ensure a smooth flow of the reagent;
- protection of the working rollers and hose is provided by a transparent polycarbonate cover;
- The hydraulic unit is housed in a polypropylene housing.
