Peristaltic pump MP-1136-22
Peristaltic pump MP-1136-22
Peristaltic pump MP-1136-22
Brand:
DEBEMCharacteristics
Output pipe diameter:
1"
Producer:
DEBEM
Power supply:
3х380 V, 50 Hz
Max. head, m:
80
Rate of turn, rpm:
36
Feed height, m:
80
Hose standard size:
22x40
See all
Categories
Favorite
Compare
Products from the same category
Peristaltic pump MP-1124-22
Pre-order only
$2,999.25
Peristaltic pump MP-1128-22
Pre-order only
$2,999.25
Peristaltic pump MP-1132-22
Pre-order only
$2,999.25
Peristaltic pump MP-1140-22
Pre-order only
$2,999.25
Peristaltic pump MP-1150-22
Pre-order only
$2,999.25
Peristaltic pump MP-1124-25
Pre-order only
$2,999.25
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Peristaltic pump MP-1136-22
Output pipe diameter | 1" |
Producer | DEBEM |
Power supply | 3х380 V, 50 Hz |
Max. head, m | 80 |
Rate of turn, rpm | 36 |
Feed height, m | 80 |
Hose standard size | 22x40 |
Mode of operation | Continuous operation |
Model | MP-11 |
Power capacity, kW | 0,55 |
Max.dry suction head, m | 8 |
Material for working hoos | Norprene |

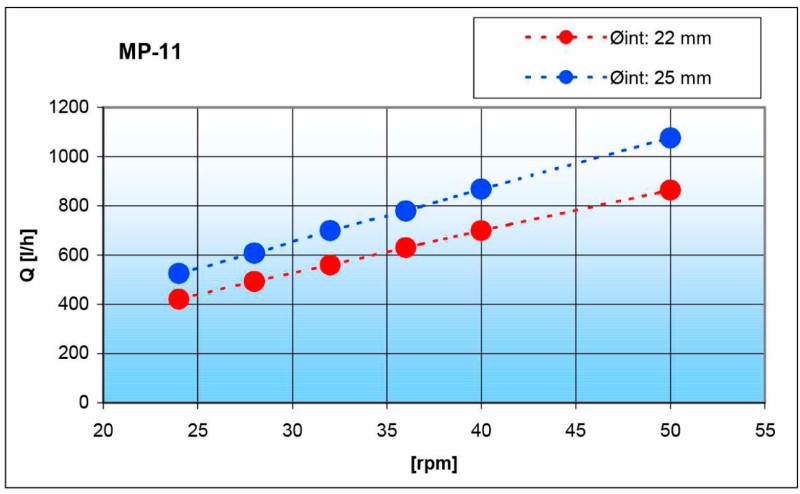

Flow rate, l/h | 630 |
Dosage mode: Continually ON-OFF | So |
Max.temperature, C | 80 |
Pressure, bar | 8 |
Product regulation 0-100% | No |
Input pipe diameter | 1" |
Serial number of the pump | MP |
Country of Origin | Italy |
PumpType | peristaltic |
Drive Type | electric |
Availability of spare parts | yes |
Application | solutions, liquid powders, antiseptic, coagulant, alkalis, chemistry, acids |
Weight, kg | 50 |

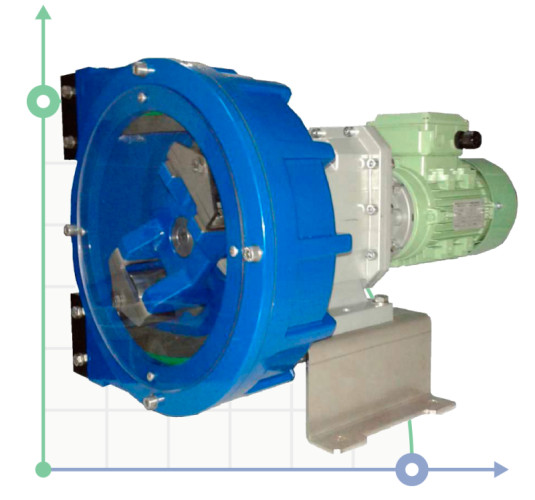

Description Peristaltic pump MP-1136-22
MP Peristaltic pumps for supplying high-viscous mixtures of reactive and neutral liquids. Peristaltic pumps with constant capacity.
- Maximum suction height: about 8 meters.
- Reinforced rubber hose NORPRENE - NBR - EPDM.
- Maximum temperature: 80 ° C.
- These pumps can pump viscous liquids with suspended particles, while not damaging the pumps.
- Reverse the fluid motion and the effect of "siphon" excluded.
- Can the operation of the pump "dry", and changing the direction of rotation.
- Power 0,55 kW.
- Pressure: 8 bar.
