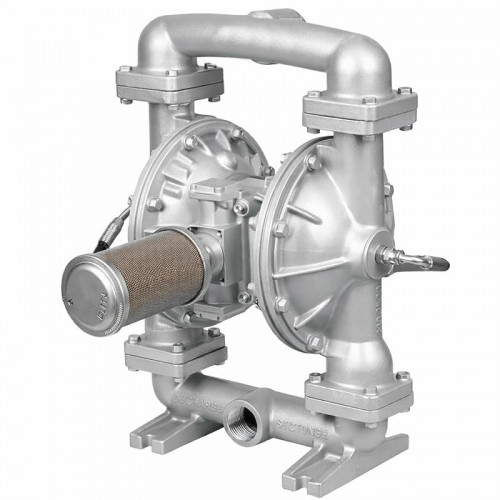

DP 200 AL/SN - AL/N - Pneumatic Membrane Pump
DP 200 AL/SN - AL/N - Pneumatic Membrane Pump
Brand:
Dia PumpCharacteristics
Producer:
DiaPump
Max. head, m:
160
Feed height, m:
160
Max.air pressure, bar:
8,4
Max.viscosity, cPs:
40 000
Model:
DP 200
Max.diameter of solid inclusions, mm:
6
See all
Documentation
Categories
Favorite
Compare
Products from the same category
DPX 30 AL/V - Pneumatic Membrane Pump
Pre-order only
$4,162.09
DP 100 AL/SN - AL/N - Pneumatic Membrane Pump
Pre-order only
$896.78
DP 150 AL/SN - AL/N - Pneumatic Membrane Pump
Pre-order only
$1,909.81
DP 300 AL/SN - AL/N - Pneumatic Membrane Pump
Pre-order only
$3,170.05
DP 100 DD/SN - DD/N - Pneumatic Membrane Pump
Pre-order only
$1,336.30
DP 150 DD/SN - DD/N - Pneumatic Membrane Pump
Pre-order only
$2,195.74
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days

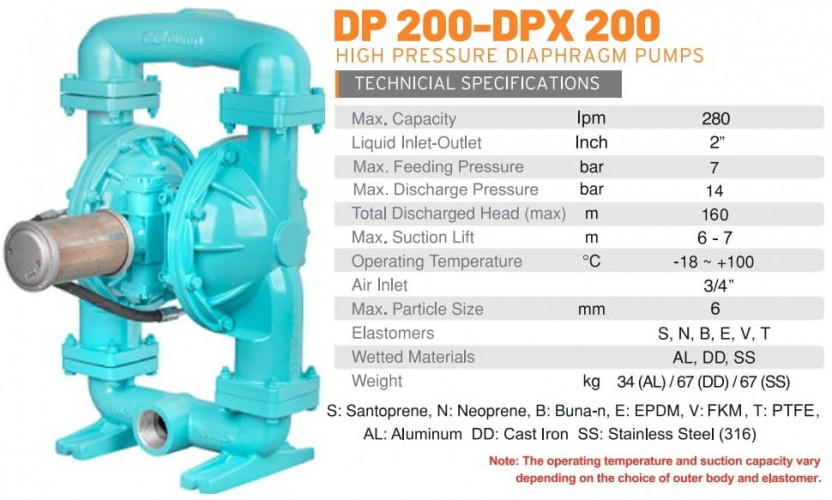

On-line payment on the sitePayment is made by bank cardsFeatures DP 200 AL/SN - AL/N - Pneumatic Membrane Pump
Producer | DiaPump |
Max. head, m | 160 |
Feed height, m | 160 |
Max.air pressure, bar | 8,4 |
Max.viscosity, cPs | 40 000 |
Model | DP 200 |
Max.diameter of solid inclusions, mm | 6 |
Pump capacity, cu.m/hour | 16.8 |
Flow rate, l/min | 280 |
Explosion protection | Yes |
Max.flow rate, m3/h | 16.8 |
Diametr of the product line | 2" |
Max.temperature, C | 95 |
Diameter of the pneumatic mainline | 3/4" |
Material of flow channel | AL |
Diaphragm material at water side | NBR / SNTPRN |
Suction capacity (NPSH), m | 9,8 |
Material | AL |
Noise level ,dB | 65 |
Dry suction height, m | 6 |
ATEX standard | Ex II 2 G c Tx; Ex II 2 D c Tx; Ex I M2 c T (150°C) |
Serial number of the pump | DP |
Country of Origin | Turkey |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Warranty, months | 12 |
Application | ethers, ethylene, clay, slip, alkalis, acetic acid, nitric acid, paints, varnish, ammonia, phosphoric acid, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, oleum, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane |
Analogue for | DEPA L, Debem BOXER, AlphaDynamic Ruby, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA DB, Debem SANIBOXER, DEPA М, DEPA РМ (Р), DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, Debem FOODBOXER, Jesco Pump, AquaViva, Emec, Injecta, Seko, FWT, Graco Husky, AQUA, WILDEN, ProMinent, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, Grundfos |
Weight, kg | 34 |
Description DP 200 AL/SN - AL/N - Pneumatic Membrane Pump
Membrane pumps DP with innovative air separation system, geometry of pump chambers and valve system, allows to pump over a wide range of aggressive products (concentrated acids, alkalis, solvents, laquers, glues, liquids with suspended particles to 10 mm, abrasive products, etc.) with viscosity from 6000 to 55000 cPs.
Wet part of membrane pumps DP is made of such material as:
- РР: POLYPROPLENE ;
- PB: FIBER POLYPROPLENE;
- PVDF: KYNAR;
- AL: ALUMINUM;
- DD: CAST IRON;
- SC: АІSI 316L;
- SS: АІSI 316.
The main working bodies (membranes, ball valves, ball seats) are made of:
- S: SANTOPRENE;
- N: NEOPRENE;
- B: BUNA-N (NBR);
- E: EPDM;
- T: PTFE;
- V: VITON / FKM.
The advantages of pneumatic membrane pumps DP:
- Dry self-suction to 6 m;
- Self-suction with flooded suction to 9,8 m;
- Unrestrained dry running.
Documentation DP 200 AL/SN - AL/N - Pneumatic Membrane Pump
Download instructions, catalog for DP 200 AL/SN - AL/N - Pneumatic Membrane Pump
