The pneumatic diaphragm pumps BOXER 100 PP IB100-P-HTTPT--
The pneumatic diaphragm pumps BOXER 100 PP IB100-P-HTTPT--
The pneumatic diaphragm pumps BOXER 100 PP IB100-P-HTTPT--
The pneumatic diaphragm pumps BOXER 100 PP IB100-P-HTTPT--
The pneumatic diaphragm pumps BOXER 100 PP IB100-P-HTTPT--
Brand:
DEBEMCharacteristics
Output pipe diameter:
1"
Producer:
DEBEM
Material of O-ring:
PTFE
Material of valve seat:
PP
Max. head, m:
70
Feed height, m:
70
Max.air pressure, bar:
7
See all
Documentation
Categories
Favorite
Compare
Products from the same category
The pneumatic diaphragm pumps BOXER 100 PP IB100P-HTTPV--
Pre-order only
$1,563.78
RUBY 140A-P-NNN pneumatic diaphragm pump
Pre-order only
$1,090.05
RUBY FDA 050S-W-TSS-T pneumatic diaphragm pump
Pre-order only
$6,422.45
RUBY 150A-AP-NNN pneumatic diaphragm pump
Pre-order only
$1,755.53
The pneumatic diaphragm pumps BOXER 100 PVDF IB100-FC-MTTFT--
Pre-order only
$3,194.39
RUBY FDA 050S-W-TST-T pneumatic diaphragm pump
Pre-order only
$6,266.30
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures The pneumatic diaphragm pumps BOXER 100 PP IB100-P-HTTPT--
Output pipe diameter | 1" |
Producer | DEBEM |
Material of O-ring | PTFE |
Material of valve seat | PP |
Max. head, m | 70 |
Feed height, m | 70 |
Max.air pressure, bar | 7 |
Pneumatic circuit connection, inch, f | 3/8" |
Max.viscosity, cPs | 30 000 |
Model | BOXER 100 |
Max.dry suction head, m | 5 |
Max.diameter of solid inclusions, mm | 4 |
Pump capacity, cu.m/hour | 9 |
Flow rate, l/min | 150 |
Max.flow rate, m3/h | 9 |
Max.temperature, C | 95 |
Diaphragm material at air side | HYTREL |
Material of flow channel | PP |
Diaphragm material at water side | PTFE |
Input pipe diameter | 1" |
Material | PP |
Material of ball valves | PTFE |
Serial number of the pump | BOXER |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Application | ethers, ethylene, clay, slip, alkalis, acetic acid, nitric acid, paints, varnish, ammonia, phosphoric acid, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, oleum, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane |
Analogue for | DEPA DB, AlphaDynamic Ruby, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA М, Debem FOODBOXER, DEPA РМ (Р), DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, Debem BOXER, Debem SANIBOXER, Graco Husky, AquaViva, Emec, Injecta, Seko, FWT, WILDEN, Jesco Pump, ProMinent, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, AQUA, Grundfos |
Weight, kg | 7,5 |
Description The pneumatic diaphragm pumps BOXER 100 PP IB100-P-HTTPT--

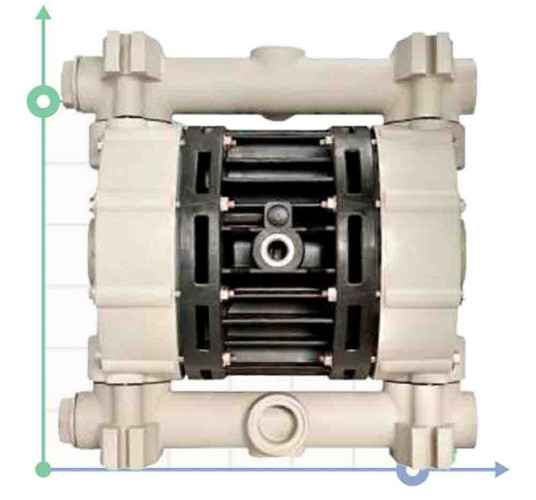

BOXER 100 diaphragm pump
Main features of the diaphragm pump 100 BOXER
- The maximum capacity of the pump to 150 l / min;
- Samozakachivanie liquids to 5 m;
- Work in unconfined mode;
- Supply air without lubrication;
- Rapid regulation while maintaining a high pressure;
- The possibility of establishing a suspension;
- Adjustable blowing and head;
- Mnogopatrubnye tube bends;
- Can run dry without any problems;
- No electrical connections;
- Easily replaceable parts.
Documentation The pneumatic diaphragm pumps BOXER 100 PP IB100-P-HTTPT--
Download instructions, catalog for The pneumatic diaphragm pumps BOXER 100 PP IB100-P-HTTPT--
