DEBEM BOXER 251 PP+PTFE IB251-P-HTTPT pneumatic diaphragm pump
DEBEM BOXER 251 PP+PTFE IB251-P-HTTPT pneumatic diaphragm pump
DEBEM BOXER 251 PP+PTFE IB251-P-HTTPT pneumatic diaphragm pump
DEBEM BOXER 251 PP+PTFE IB251-P-HTTPT pneumatic diaphragm pump
Brand:
DEBEMCharacteristics
Output pipe diameter:
1" 1/2
Producer:
DEBEM
Material of O-ring:
PTFE
Material of valve seat:
PP
Max. head, m:
70
Feed height, m:
70
Max.air pressure, bar:
7
See all
Documentation
Categories
Favorite
Compare
Products from the same category
The pneumatic diaphragm pumps BOXER 150 PVDF IB150FCMTTFT--
Pre-order only
$3,667.53
The pneumatic diaphragm pumps BOXER 150 ALU IB150-ALHTTRV--
Pre-order only
$2,216.02
The pneumatic diaphragm pumps BOXER 251 ALU B250-AL-HTAIV
Pre-order only
$2,472.64
The pneumatic diaphragm pumps BOXER 251 PVDF IB251-FC-HTTFT--
Pre-order only
$5,680.39
The pneumatic diaphragm pumps BOXER 251 Alu IB251-AL-HTTLT--
Pre-order only
$2,486.01
The pneumatic diaphragm pumps BOXER 251 AISI 316 IB251-A-HTTAT--
Pre-order only
$5,745.88
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures DEBEM BOXER 251 PP+PTFE IB251-P-HTTPT pneumatic diaphragm pump
Output pipe diameter | 1" 1/2 |
Producer | DEBEM |
Material of O-ring | PTFE |
Material of valve seat | PP |
Max. head, m | 70 |
Feed height, m | 70 |
Max.air pressure, bar | 7 |
Pneumatic circuit connection, inch, f | 1/2" |
Max.viscosity, cPs | 50 000 |
Model | BOXER 251 |
Max.dry suction head, m | 6 |
Max.diameter of solid inclusions, mm | 6 |
Pump capacity, cu.m/hour | 20.4 |
Flow rate, l/min | 340 |
Max.flow rate, m3/h | 20.4 |
Max.temperature, C | 95 |
Diaphragm material at air side | HYTREL |
Material of flow channel | PP |
Diaphragm material at water side | PTFE |
Input pipe diameter | 1" 1/2 |
Material | PP |
Material of ball valves | PTFE |
Serial number of the pump | BOXER |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Application | ethylene, ethers, clay, slip, phosphoric acid, alkalis, acetic acid, nitric acid, paints, varnish, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, oleum, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane, ammonia |
Analogue for | DEPA М, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA РМ (Р), Debem BOXER, DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, AlphaDynamic Ruby, Debem FOODBOXER, WILDEN, AquaViva, Emec, Injecta, Seko, FWT, Graco Husky, ProMinent, Debem SANIBOXER, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, AQUA, Jesco Pump, Grundfos |
Weight, kg | 16 |
Description DEBEM BOXER 251 PP+PTFE IB251-P-HTTPT pneumatic diaphragm pump

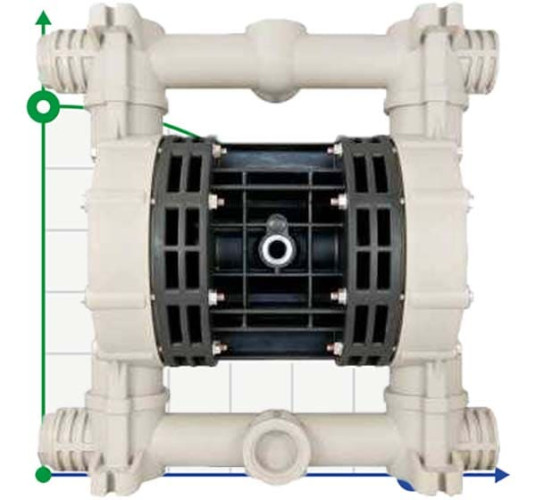

Diaphragm pump BOXER 251
The possibility of the transfer pump BOXER 251
- pump capacity up to 340 l / min;
- liquid Samozakachivanie to 6 m;
- Work in unconfined mode;
- Rapid regulation while maintaining a high pressure;
- The possibility of establishing a suspension;
- Adjustable blowing and head;
- Mnogopatrubnye tube bends;
- Can run dry without any problems;
- No electrical connections;
- Easily replaceable parts;
- Easy maintenance;
- Version Conduct, ATEX 2 / 2GD c IIB T 135 ° C can be supplied.
Documentation DEBEM BOXER 251 PP+PTFE IB251-P-HTTPT pneumatic diaphragm pump
Download instructions, catalog for DEBEM BOXER 251 PP+PTFE IB251-P-HTTPT pneumatic diaphragm pump
