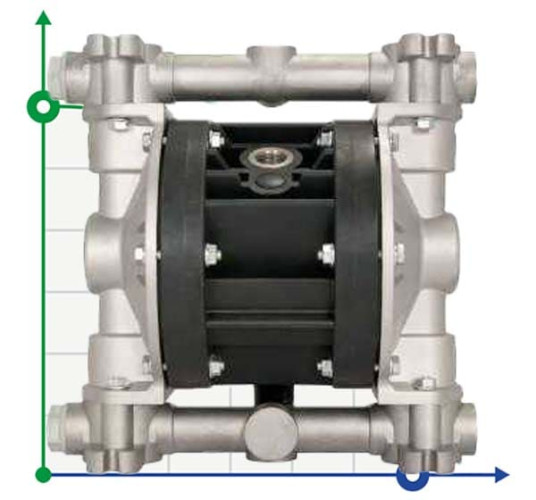

Pneumatic diaphragm pump BOXER 50 Alu IB50-Al-HTTLT--
Pneumatic diaphragm pump BOXER 50 Alu IB50-Al-HTTLT--
Pneumatic diaphragm pump BOXER 50 Alu IB50-Al-HTTLT--
Pneumatic diaphragm pump BOXER 50 Alu IB50-Al-HTTLT--
Brand:
DEBEMCharacteristics
Output pipe diameter:
1/2"
Producer:
DEBEM
Material of O-ring:
PTFE
Material of valve seat:
ALU
Max. head, m:
70
Feed height, m:
70
Max.air pressure, bar:
7
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Pneumatic diaphragm pump BOXER 50 PP IB50-P-HTTPD--
Pre-order only
$904.19
Pneumatic diaphragm pump BOXER 50 PP IB50-P-MTTPV
Pre-order only
$933.59
Pneumatic diaphragm pump BOXER 50 PVDF IB50-FC-MTTPT--
Pre-order only
$1,852.47
Pneumatic diaphragm pump BOXER 50 ALU IB50-ALN-AAN--
Pre-order only
$833.61
Pneumatic diaphragm pump BOXER 50 ALUMINIUM IB50-ALHTALT--
Pre-order only
$890.95
Pneumatic diaphragm pump BOXER 50 ALUMINIUM IB50-ALHTAIT-C
Pre-order only
$1,903.93
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Pneumatic diaphragm pump BOXER 50 Alu IB50-Al-HTTLT--
Output pipe diameter | 1/2" |
Producer | DEBEM |
Material of O-ring | PTFE |
Material of valve seat | ALU |
Max. head, m | 70 |
Feed height, m | 70 |
Max.air pressure, bar | 7 |
Pneumatic circuit connection, inch, f | 3/8" |
Max.viscosity, cPs | 20 000 |
Model | BOXER 50 |
Max.dry suction head, m | 5 |
Max.diameter of solid inclusions, mm | 4 |
Pump capacity, cu.m/hour | 3 |
Flow rate, l/min | 50 |
Max.flow rate, m3/h | 3 |
Max.temperature, C | 95 |
Diaphragm material at air side | HYTREL |
Material of flow channel | AL |
Diaphragm material at water side | PTFE |
Input pipe diameter | 1/2" |
Material | AL |
Material of ball valves | PTFE |
Serial number of the pump | BOXER |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Application | ethers, ethylene, clay, paints, slip, alkalis, acetic acid, nitric acid, varnish, ammonia, phosphoric acid, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, oleum, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane |
Analogue for | DEPA М, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA РМ (Р), Debem BOXER, DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, AlphaDynamic Ruby, Debem FOODBOXER, WILDEN, AquaViva, Emec, Injecta, Seko, FWT, Graco Husky, ProMinent, Debem SANIBOXER, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, AQUA, Jesco Pump, Grundfos |
Weight, kg | 4 |
Description Pneumatic diaphragm pump BOXER 50 Alu IB50-Al-HTTLT--
Diaphragm pump BOXER 50
Key features of the diaphragm pump 50 BOXER
- pump capacity up to 50 l / min;
- Samozakachivanie liquid to 5 m;
- Supply air without lubrication;
- Rapid regulation while maintaining a high pressure;
- The possibility of establishing a suspension;
- Adjustable blowing and head;
- Mnogopatrubnye tube bends;
- Can run dry without any problems;
- No electrical connections;
- Easily replaceable parts;
- Easy maintenance;
- Version Conduct, ATEX 2 / 2GD c IIB T 135 ° C can be supplied.
