The pneumatic diaphragm pumps BOXER 502 AISI 316 IB502-A-HTTAT--
The pneumatic diaphragm pumps BOXER 502 AISI 316 IB502-A-HTTAT--
The pneumatic diaphragm pumps BOXER 502 AISI 316 IB502-A-HTTAT--
The pneumatic diaphragm pumps BOXER 502 AISI 316 IB502-A-HTTAT--
The pneumatic diaphragm pumps BOXER 502 AISI 316 IB502-A-HTTAT--
Brand:
DEBEMCharacteristics
Output pipe diameter:
2"
Producer:
DEBEM
Material of O-ring:
PTFE
Material of valve seat:
AISI 316 stainless steel
Max. head, m:
70
Feed height, m:
70
Max.air pressure, bar:
7
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Pneumatic diaphragm pump BOXER 50 PP IB50-P-MTTPT--
Pre-order only
$736.45
The pneumatic diaphragm pumps BOXER 502 Alu IB502-AL-HTTLT--
Pre-order only
$3,608.72
Pneumatic diaphragm pump BOXER 50 PP IB50-P-D-DPD--
Pre-order only
$828.67
Pneumatic diaphragm pump BOXER 50 PP IB50-P-MTTIT--
Pre-order only
$744.47
The pneumatic diaphragm pumps BOXER 502 ALU IB502ALD-DID--
Pre-order only
$3,190.38
The pneumatic diaphragm pumps BOXER 502 ALU IB502ALMTAAT--
Pre-order only
$3,517.84
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures The pneumatic diaphragm pumps BOXER 502 AISI 316 IB502-A-HTTAT--
Output pipe diameter | 2" |
Producer | DEBEM |
Material of O-ring | PTFE |
Material of valve seat | AISI 316 stainless steel |
Max. head, m | 70 |
Feed height, m | 70 |
Max.air pressure, bar | 7 |
Pneumatic circuit connection, inch, f | 1/2" |
Max.viscosity, cPs | 50 000 |
Model | BOXER 502 |
Max.dry suction head, m | 6 |
Max.diameter of solid inclusions, mm | 8 |
Pump capacity, cu.m/hour | 39 |
Flow rate, l/min | 650 |
Max.flow rate, m3/h | 39 |
Max.temperature, C | 95 |
Diaphragm material at air side | HYTREL |
Material of flow channel | AISI 316 stainless steel |
Diaphragm material at water side | PTFE |
Input pipe diameter | 2" |
Material | AISI 316 stainless steel |
Material of ball valves | PTFE |
Serial number of the pump | BOXER |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Application | ethylene, ethers, clay, slip, phosphoric acid, alkalis, acetic acid, nitric acid, paints, varnish, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, oleum, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane, ammonia |
Analogue for | DEPA М, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA РМ (Р), Debem BOXER, DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, AlphaDynamic Ruby, Debem FOODBOXER, WILDEN, AquaViva, Emec, Injecta, Seko, FWT, Graco Husky, ProMinent, Debem SANIBOXER, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, AQUA, Jesco Pump, Grundfos |
Weight, kg | 54 |
Description The pneumatic diaphragm pumps BOXER 502 AISI 316 IB502-A-HTTAT--

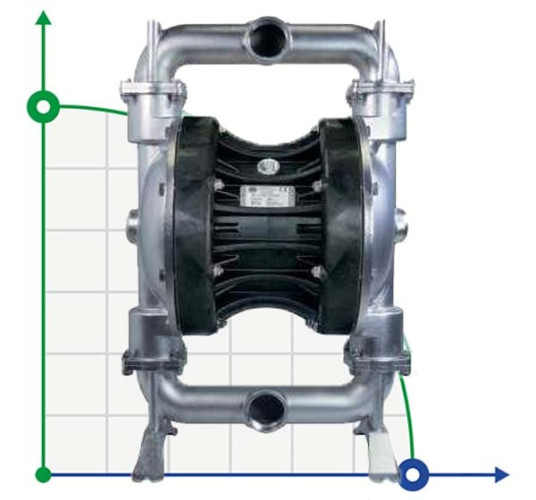

High Performance Diaphragm pump BOXER 502
Key features of the chemical pump 502 BOXER
- High pump output to 650 l / min;
- Samozakachivanie liquid up to 4 m;
- Gravity mode;
- Rapid regulation while maintaining a high pressure;
- The possibility of establishing a suspension;
- Adjustable blowing and head;
- Mnogopatrubnye tube bends;
- Can run dry without any problems;
- No electrical connections;
- Easily replaceable parts;
- Easy-care;
- Version Conduct, ATEX 2 / 2GD c IIB T 135 ° C can be supplied.
Documentation The pneumatic diaphragm pumps BOXER 502 AISI 316 IB502-A-HTTAT--
Download instructions, catalog for The pneumatic diaphragm pumps BOXER 502 AISI 316 IB502-A-HTTAT--
