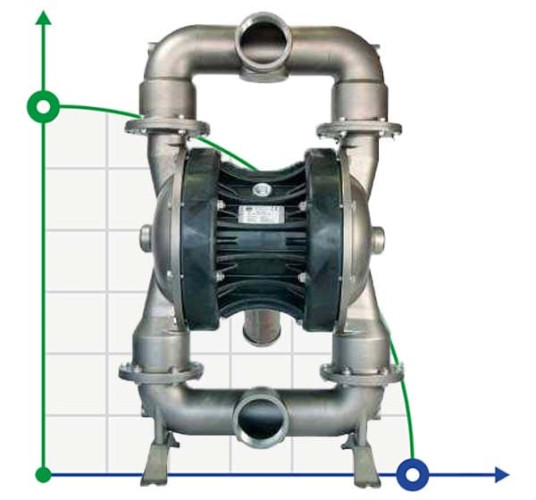

The pneumatic diaphragm pumps BOXER 503 Metal AISI 316
The pneumatic diaphragm pumps BOXER 503 Metal AISI 316
The pneumatic diaphragm pumps BOXER 503 Metal AISI 316
The pneumatic diaphragm pumps BOXER 503 Metal AISI 316
The pneumatic diaphragm pumps BOXER 503 Metal AISI 316
Brand:
DEBEMCharacteristics
Output pipe diameter:
3"
Producer:
DEBEM
Material of O-ring:
PTFE
Max. head, m:
70
Feed height, m:
70
Max.air pressure, bar:
7
Pneumatic circuit connection, inch, f:
3/4"
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Pneumatic diaphragm pump BOXER 50 PP IB50-P-HTTPT--
Pre-order only
$848.72
The pneumatic diaphragm pumps BOXER 503 Plastic PP
Pre-order only
$5,479.91
The pneumatic diaphragm pumps BOXER 503 Plastic PVDF
Pre-order only
$15,504.12
The pneumatic diaphragm pumps BOXER 503 Metal Alu
Pre-order only
$5,479.91
The pneumatic diaphragm pumps BOXER 503 PP IB503P-MTTPT--
Pre-order only
$4,343.83
The pneumatic diaphragm pumps BOXER 503 PVDF IB503FCMTTFV--
Pre-order only
$13,439.13
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures The pneumatic diaphragm pumps BOXER 503 Metal AISI 316
Output pipe diameter | 3" |
Producer | DEBEM |
Material of O-ring | PTFE |
Max. head, m | 70 |
Feed height, m | 70 |
Max.air pressure, bar | 7 |
Pneumatic circuit connection, inch, f | 3/4" |
Max.viscosity, cPs | 50 000 |
Model | BOXER 503 |
Max.dry suction head, m | 5 |
Max.diameter of solid inclusions, mm | 10 |
Pump capacity, cu.m/hour | 54 |
Flow rate, l/min | 900 |
Max.flow rate, m3/h | 54 |
Max.temperature, C | 95 |
Diaphragm material at air side | HYTREL |
Material of flow channel | AISI 316 stainless steel |
Diaphragm material at water side | PTFE |
Input pipe diameter | 3" |
Material | AISI 316 stainless steel |
Material of ball valves | PTFE |
Serial number of the pump | BOXER |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Application | ethylene, ethers, clay, slip, alkalis, acetic acid, nitric acid, paints, phosphoric acid, varnish, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, oleum, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane, ammonia |
Analogue for | DEPA М, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA РМ (Р), Debem BOXER, DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, AlphaDynamic Ruby, Debem FOODBOXER, WILDEN, AquaViva, Emec, Injecta, Seko, FWT, Graco Husky, ProMinent, Debem SANIBOXER, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, AQUA, Jesco Pump, Grundfos |
Weight, kg | 71 |
Description The pneumatic diaphragm pumps BOXER 503 Metal AISI 316
Diaphragm pump BOXER 503
Key features of the chemical pump 503 BOXER
- High pump capacity up to 900 l / min;
- Samozakachivanie liquid to 5 m;
- Gravity mode;
- Rapid regulation while maintaining a high pressure;
- The possibility of establishing a suspension;
- Adjustable blowing and head;
- Mnogopatrubnye tube bends;
- Can run dry without any problems;
- No electrical connections;
- Easily replaceable parts;
- Easy maintenance;
- Version Conduct, ATEX 2 / 2GD c IIB T 135 ° C can be supplied.
Documentation The pneumatic diaphragm pumps BOXER 503 Metal AISI 316
Download instructions, catalog for The pneumatic diaphragm pumps BOXER 503 Metal AISI 316
