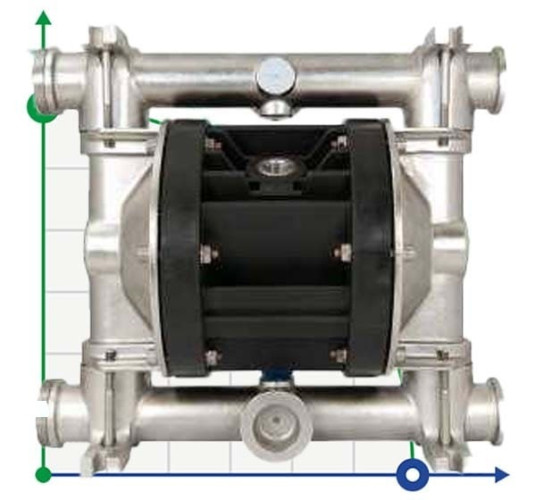

Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTTAT-C
Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTTAT-C
Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTTAT-C
Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTTAT-C
Brand:
DEBEMCharacteristics
Output pipe diameter:
1"
Producer:
DEBEM
Material of O-ring:
PTFE
Material of valve seat:
AISI 316 stainless steel
Max. head, m:
70
Feed height, m:
70
Max.air pressure, bar:
7
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Pneumatic diaphragm pump BOXER 81 PVDF IB81-FC-HTTFT--
Pre-order only
$2,499.38
Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--
Pre-order only
$1,093.31
Pneumatic diaphragm pump BOXER 81 AISI 316 IB80-A-HTTAT--
Pre-order only
$2,876.29
Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTAAT--
Pre-order only
$2,393.79
Pneumatic diaphragm pump BOXER 81 ALUMINIUM IB81-ALHTAAT--
Pre-order only
$1,113.36
Pneumatic diaphragm pump BOXER 81 ALUMINIUM IB81-ALHTTAT--
Pre-order only
$1,113.36
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTTAT-C
Output pipe diameter | 1" |
Producer | DEBEM |
Material of O-ring | PTFE |
Material of valve seat | AISI 316 stainless steel |
Max. head, m | 70 |
Feed height, m | 70 |
Max.air pressure, bar | 7 |
Pneumatic circuit connection, inch, f | 3/8" |
Max.viscosity, cPs | 25 000 |
Model | BOXER 81 |
Max.dry suction head, m | 6 |
Max.diameter of solid inclusions, mm | 4 |
Pump capacity, cu.m/hour | 6 |
Flow rate, l/min | 100 |
Max.flow rate, m3/h | 6 |
Max.temperature, C | 95 |
Diaphragm material at air side | HYTREL |
Material of flow channel | AISI 316 stainless steel |
Diaphragm material at water side | PTFE |
Input pipe diameter | 1" |
Material | AISI 316 stainless steel |
Material of ball valves | PTFE |
Serial number of the pump | BOXER |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Application | ethylene, ethers, clay, slip, phosphoric acid, alkalis, acetic acid, nitric acid, paints, varnish, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, oleum, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane, ammonia |
Analogue for | DEPA М, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA РМ (Р), Debem BOXER, DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, AlphaDynamic Ruby, Debem FOODBOXER, WILDEN, AquaViva, Emec, Injecta, Seko, FWT, Graco Husky, ProMinent, Debem SANIBOXER, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, AQUA, Jesco Pump, Grundfos |
Weight, kg | 10,5 |
Description Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTTAT-C
The diaphragm air pump BOXER 81 for viscous liquids
Productivity - up to 100 l / min
Connection - 1 "
Versions: PP - PVDF - ALU - AISI 316
Main features of the diaphragm pump 81 BOXER
- Performance up to 100 l / min
- Self-priming liquid to 4 m
- Work in unconfined mode
- pumping liquids containing solid particles and insoluble
- Pumping of highly viscous liquids
- Support in the "dry run"
- Perform barrel pump functions
- Perhaps the body design for total immersion in the pumped liquid
- Easy maintenance and parts replacement
- STANDARD: II 3/3 GD c IIB T135 ° C (zone 2)
- CONDUCT: II 2/2 GD c IIB T135 ° C (zone 1)
Documentation Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTTAT-C
Download instructions, catalog for Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTTAT-C
