Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--
Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--
Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--
Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--
Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--
Brand:
DEBEMCharacteristics
Output pipe diameter:
1"
Producer:
DEBEM
Material of O-ring:
PTFE
Material of valve seat:
ALU
Max. head, m:
70
Feed height, m:
70
Max.air pressure, bar:
7
See all
Documentation
Categories
Favorite
Compare
Products from the same category
The pneumatic diaphragm pumps BOXER 522 PVDF IB522FCMTTFT--
Pre-order only
$11,383.50
Pneumatic diaphragm pump BOXER 81 PP IB81-P-HTTPT--
Pre-order only
$1,263.06
Pneumatic diaphragm pump BOXER 81 PVDF IB81-FC-HTTFT--
Pre-order only
$2,499.38
Pneumatic diaphragm pump BOXER 81 AISI 316 IB80-A-HTTAT--
Pre-order only
$2,876.29
Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTTAT-C
Pre-order only
$4,158.05
Pneumatic diaphragm pump BOXER 81 AISI 316 IB81-A-HTAAT--
Pre-order only
$2,393.79
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--
Output pipe diameter | 1" |
Producer | DEBEM |
Material of O-ring | PTFE |
Material of valve seat | ALU |
Max. head, m | 70 |
Feed height, m | 70 |
Max.air pressure, bar | 7 |
Pneumatic circuit connection, inch, f | 3/8" |
Max.viscosity, cPs | 25 000 |
Model | BOXER 81 |
Max.dry suction head, m | 6 |
Max.diameter of solid inclusions, mm | 4 |
Pump capacity, cu.m/hour | 6 |
Flow rate, l/min | 100 |
Max.flow rate, m3/h | 6 |
Max.temperature, C | 95 |
Diaphragm material at air side | HYTREL |
Material of flow channel | AL |
Diaphragm material at water side | PTFE |
Input pipe diameter | 1" |
Material | AL |
Material of ball valves | PTFE |
Serial number of the pump | BOXER |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Application | ethers, ethylene, clay, slip, alkalis, acetic acid, nitric acid, paints, varnish, ammonia, phosphoric acid, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, oleum, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane |
Analogue for | DEPA М, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA РМ (Р), Debem BOXER, DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, AlphaDynamic Ruby, Debem FOODBOXER, WILDEN, AquaViva, Emec, Injecta, Seko, FWT, Graco Husky, ProMinent, Debem SANIBOXER, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, AQUA, Jesco Pump, Grundfos |
Weight, kg | 6,5 |
Description Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--

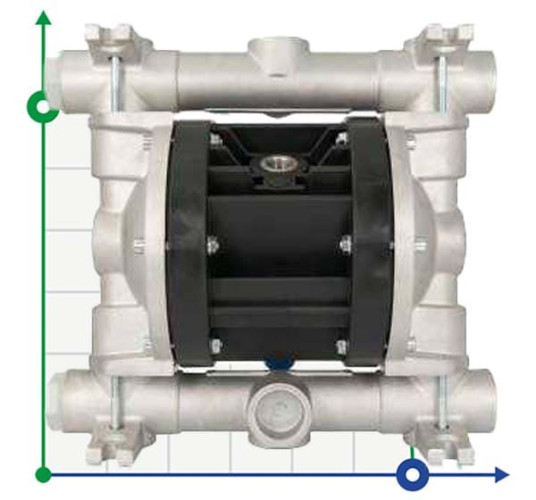

Diaphragm pump BOXER 81
Main features of the diaphragm pump 81 BOXER
- pump capacity up to 100 l / min;
- liquid Samozakachivanie to 6 m;
- Ability to free-flow mode;
- The possibility of establishing a suspension;
- Adjustable blowing and head;
- Mnogopatrubnye tube bends;
- Can run dry without any problems;
- No electrical connections;
- Easily replaceable parts;
- Easy maintenance;
- Version Conduct, ATEX 2 / 2GD c IIB T 135 ° C can be supplied.
Documentation Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--
Download instructions, catalog for Pneumatic diaphragm pump BOXER 81 Alu IB81-AL-HTTLT--
