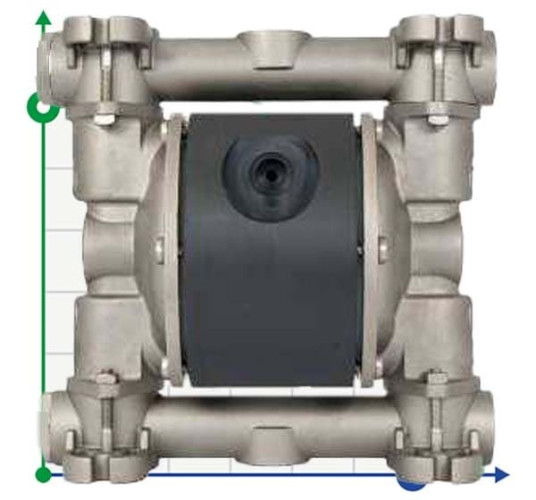

Pneumatic diaphragm pump MICROBOXER AISI316 IMICRA-MTAAD--
Pneumatic diaphragm pump MICROBOXER AISI316 IMICRA-MTAAD--
Pneumatic diaphragm pump MICROBOXER AISI316 IMICRA-MTAAD--
Brand:
DEBEMCharacteristics
Output pipe diameter:
1/2"
Producer:
DEBEM
Material of O-ring:
EPDM
Material of valve seat:
AISI 316 stainless steel
Max. head, m:
70
Feed height, m:
70
Max.air pressure, bar:
7
See all
Categories
Favorite
Compare
Products from the same category
DEBEM MICROBOXER ALU+PTFE pneumatic diaphragm pump IMICR-AL-MTTLT--
Pre-order only
$701.70
Pneumatic diaphragm pump MICROBOXER PVDF Conduct
Pre-order only
$1,419.43
DEBEM MICROBOXER AISI 316L+PTFE pneumatic diaphragm pump IMICRA-HTAAT
Pre-order only
$1,222.96
Pneumatic diaphragm pump MICROBOXER ALU IMICRALH-AAD--
Pre-order only
$573.39
Pneumatic diaphragm pump MICROBOXER ALU IMICRALHTAAT--
Pre-order only
$597.45
Pneumatic diaphragm pump MICROBOXER PP IMICRP-HTTPT--
Pre-order only
$549.33
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Pneumatic diaphragm pump MICROBOXER AISI316 IMICRA-MTAAD--
Output pipe diameter | 1/2" |
Producer | DEBEM |
Material of O-ring | EPDM |
Material of valve seat | AISI 316 stainless steel |
Max. head, m | 70 |
Feed height, m | 70 |
Max.air pressure, bar | 7 |
Pneumatic circuit connection, inch, f | 1/4' |
Max.viscosity, cPs | 20 000 |
Model | MICROBOXER |
Max.dry suction head, m | 6 |
Max.diameter of solid inclusions, mm | 2 |
Pump capacity, cu.m/hour | 1.8 |
Flow rate, l/min | 30 |
Max.flow rate, m3/h | 1.8 |
Max.temperature, C | 65 |
Diaphragm material at air side | SANTOPRENE |
Material of flow channel | AISI 316 stainless steel |
Input pipe diameter | 1/2" |
Material | AISI 316 stainless steel |
Material of ball valves | AISI 316 stainless steel |
Serial number of the pump | MICROBOXER |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Application | ethers, ethylene, slip, clay, alkalis, acetic acid, nitric acid, paints, phosphoric acid, varnish, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, oleum, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane, ammonia |
Analogue for | DEPA DB, AlphaDynamic Ruby, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA М, Debem FOODBOXER, DEPA РМ (Р), DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, Debem BOXER, Debem SANIBOXER, Graco Husky, AquaViva, Emec, Injecta, Seko, FWT, WILDEN, Jesco Pump, ProMinent, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, AQUA, Grundfos |
Weight, kg | 2 |
Description Pneumatic diaphragm pump MICROBOXER AISI316 IMICRA-MTAAD--
Diaphragm pump MICROBOXER
Key features:
- productivity up to 30 l / min;
- liquid samozakachivanie to 6 m;
- Work in unconfined mode;
- pumping liquids containing solid, and the insoluble particle;
- pumping very viscous liquids;
- support for work in the "dry run" mode;
- dual mode (independent) intake and discharge collectors;
- execution barrel pump functions;
- fire safety structure without the electric pump;
- a full immersion in the pumped medium;
- ease of maintenance and replacement parts.
