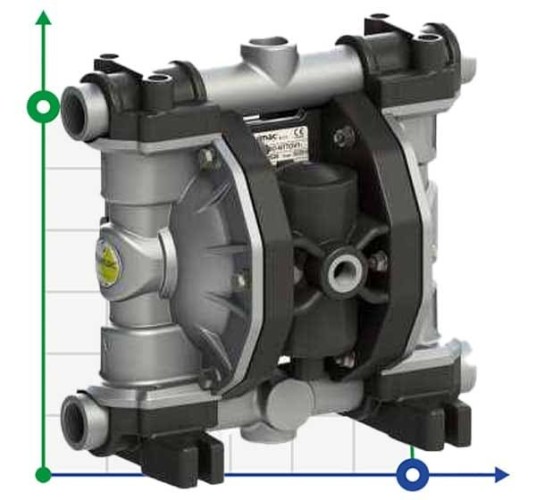

Pneumatic diaphragm pump PHOENIX P90 ALU HYTREL+PTFE, 100 l/min for varnish

The PHOENIX series of pneumatic diaphragm pumps manufactured by the Italian company FLUIMAC is represented by a wide range of models for solving production problems of any complexity. PHOENIX diaphragm pumps, with an innovative air separation system, pump chamber geometry and valve system, allow pumping a wide range of aggressive products (concentrated acids, alkalis, solvents, varnishes, glues, liquids with suspended particles up to 10 mm in size, abrasive products, etc.) with viscosities from 6000 to 55000 cPs. The flow part of PHOENIX diaphragm pumps is made of such materials as PVDF, Alu, POMc, PP, AISI 316. The main working elements (diaphragms, ball valves, valve seats) are made of PVDF, Alu, POMc, PP, AISI316, PTFE, NBR, PE, SANTOPRENE, HYTREL. Advantages of FLUIMAC pneumatic diaphragm pumps: - dry suction up to 6 m; - self-priming under water up to 9.8 m; - unlimited dry stroke;
