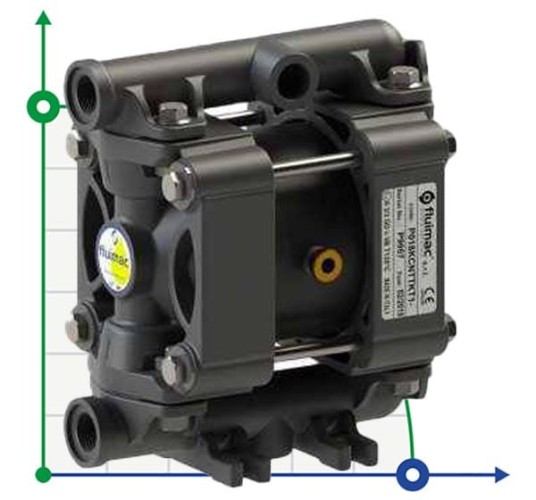

Pneumatic Membrane Pump PHOENIX P18 POM SANTOPRENE ATEX
Pneumatic Membrane Pump PHOENIX P18 POM SANTOPRENE ATEX
Brand:
FLUIMACCharacteristics
Output pipe diameter:
3/8"
Producer:
FLUIMAC
Material of valve seat:
POMc
Max. head, m:
80
Feed height, m:
80
Max.air pressure, bar:
8
Max.viscosity, cPs:
12 000
See all
Documentation
Categories
Favorite
Compare
Products from the same category
PHOENIX P90 ALU EPDM pneumatic diaphragm pump for lacquer, 100 l/min
Pre-order only
$886.76
Pneumatic Membrane Pump PHOENIX P18 PVDF ATEX
Pre-order only
$1,016.16
Pneumatic diaphragm pump PHOENIX P90 ALU HYTREL+PTFE, 100 l/min for varnish
Pre-order only
$916.83
Pneumatic Membrane Pump PHOENIX P18 POM HYTREL+PTFE ATEX
Pre-order only
$755.57
PHOENIX P170 PP HYTREL pneumatic diaphragm pump for varnish, 170 l/min
Pre-order only
$1,082.16
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Pneumatic Membrane Pump PHOENIX P18 POM SANTOPRENE ATEX
Output pipe diameter | 3/8" |
Producer | FLUIMAC |
Material of valve seat | POMc |
Max. head, m | 80 |
Feed height, m | 80 |
Max.air pressure, bar | 8 |
Max.viscosity, cPs | 12 000 |
Model | PHOENIX ATEX 18 |
Max.diameter of solid inclusions, mm | 3 |
Pump capacity, cu.m/hour | 1.2 |
Flow rate, l/min | 20 |
Explosion protection | Yes |
Max.flow rate, m3/h | 1.2 |
Diametr of the product line | 3/8" |
Max.temperature, C | 95 |
Diaphragm material at air side | SANTOPRENE |
Diameter of the pneumatic mainline | 6 mm |
Material of flow channel | POMc |
Diaphragm material at water side | PTFE |
Suction capacity (NPSH), m | 9,8 |
Input pipe diameter | 3/8" |
Material | POM-C |
Noise level ,dB | 65 |
Dry suction height, m | 6 |
Material of ball valves | PTFE |
Serial number of the pump | PHOENIX ATEX |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | yes |
Warranty, months | 12 |
Application | ethylene, ethers, clay, slip, phosphoric acid, alkalis, acetic acid, nitric acid, paints, oleum, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane, ammonia, varnish |
Analogue for | DEPA DB, AlphaDynamic Ruby, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA М, Debem FOODBOXER, DEPA РМ (Р), DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, DUOTEK SANI, DUOTEK FOOD, Debem BOXER, Debem SANIBOXER, AquaViva, Emec, Injecta, Seko, FWT, Graco Husky, Jesco Pump, WILDEN, ProMinent, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, AQUA, Grundfos |
Weight, kg | 1,1 |
Description Pneumatic Membrane Pump PHOENIX P18 POM SANTOPRENE ATEX
The batch line of pneumatic membrane pumps PHOENIX of Italian brand FLUIMAC is presented by the broad range of models for solution of any degree of complexity industrial tasks. Membrane pumps PHOENIX with innovative air separation system, geometry of pump chambers and valve system, allows to pump over a wide range of aggressive products (concentrated acids, alkalis, solvents, laquers, glues, liquids with suspended particles to 10 mm, abrasive products, etc.) with viscosity from 6000 to 55000 cPs. Wet part of membrane pumps PHOENIX is made of such material as PVDF, Alu, POMc, PP, AISI316. The main working bodies (membranes, ball valves, ball seats) are made of PVDF, Alu, POMc, PP, AISI316, PTFE, NBR, PE, SANTOPRENE, HYTREL.
The advantages of pneumatic membrane pumps FLUIMAC:
- Dry self-suction to 6 m;
- Self-suction with flooded suction to 9,8 m;
- Unrestrained dry running.
Documentation Pneumatic Membrane Pump PHOENIX P18 POM SANTOPRENE ATEX
Download instructions, catalog for Pneumatic Membrane Pump PHOENIX P18 POM SANTOPRENE ATEX
