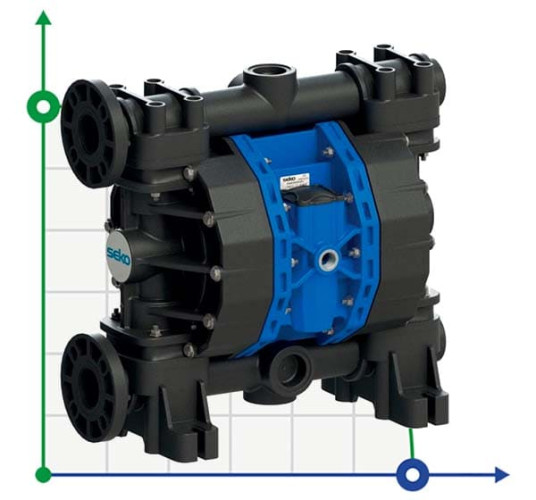

Seko Duotek AF700 PVDF pneumatic diaphragm pump
Seko Duotek AF700 PVDF pneumatic diaphragm pump
Brand:
SEKOCharacteristics
Output pipe diameter:
2"
Producer:
SEKO
Max. head, m:
80
Feed height, m:
80
Max.air pressure, bar:
8
Max.viscosity, cPs:
50 000
Max.diameter of solid inclusions, mm:
8,5
See all
Categories
Favorite
Compare
Products from the same category
Seko Duotek AF700 AISI316 pneumatic diaphragm pump
Pre-order only
Price on request
Seko Duotek AF700 Alu pneumatic diaphragm pump
Pre-order only
Price on request
Seko Duotek AF700 PP pneumatic diaphragm pump
Pre-order only
Price on request
Seko Duotek AF1000 AISI316 pneumatic diaphragm pump
Pre-order only
Price on request
Seko Duotek AF1000 ALU pneumatic diaphragm pump
Pre-order only
Price on request
Seko Duotek AF1000 PP pneumatic diaphragm pump
Pre-order only
Price on request
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Seko Duotek AF700 PVDF pneumatic diaphragm pump
Output pipe diameter | 2" |
Producer | SEKO |
Max. head, m | 80 |
Feed height, m | 80 |
Max.air pressure, bar | 8 |
Max.viscosity, cPs | 50 000 |
Max.diameter of solid inclusions, mm | 8,5 |
Pump capacity, cu.m/hour | 42 |
Flow rate, l/min | 700 |
Explosion protection | Yes |
Max.flow rate, m3/h | 42 |
Diametr of the product line | 2" |
Max.temperature, C | 95 |
Diameter of the pneumatic mainline | 3/4" |
Suction capacity (NPSH), m | 9,8 |
Input pipe diameter | 2" |
Material | PVDF |
Noise level ,dB | 78 |
Dry suction height, m | 5 |
ATEX standard | EX II 3/3 GD c IIB T 135°C |
Serial number of the pump | Duotek |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Warranty, months | 12 |
Application | ethers, ethylene, clay, slip, alkalis, acetic acid, nitric acid, paints, varnish, phosphoric acid, peroxide, phosphates, formalin, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, oleum, ammonia, saturated amine, urea, carbonate, kaolin slurry, slag, ash, viscous liquids, butane |
Analogue for | AGRAL DDE-60, Debem FOODBOXER, Debem BOXER, AlphaDynamic Ruby, AGRAL DDE-600, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, Jesco Pump, DEPA L, DEPA DB, DEPA М, DEPA РМ (Р), DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Debem SANIBOXER, AQUA, FWT, AquaViva, Emec, Injecta, Sera, Graco Husky, WILDEN, ProMinent, MILTON ROY, PRODOSE, DOSITEC, Milwaukee, Astralpool, Grundfos |
Weight, kg | 36 |
Description Seko Duotek AF700 PVDF pneumatic diaphragm pump
The SEKO Duotek Series double diaphragm air pumps provide versatility and reliability for all applications.
Pneumatic diaphragm pumps have long been recognized as the most flexible pumps in the industry for pumping complex liquids at relatively low pressures and costs. The possibilities of their application are almost limitless. SEKO pumps come in a variety of sizes and are made from a variety of materials. The pumps allow you to pump liquids of almost any type, from highly corrosive acids to high-viscosity paints and adhesives, food and beverages.
