Electric two-pump fire fighting station BEEJ 200/8-30-3 (13 l/s, 80m, 22kW)
Electric two-pump fire fighting station BEEJ 200/8-30-3 (13 l/s, 80m, 22kW)
Electric two-pump fire fighting station BEEJ 200/8-30-3 (13 l/s, 80m, 22kW)
Electric two-pump fire fighting station BEEJ 200/8-30-3 (13 l/s, 80m, 22kW)
Electric two-pump fire fighting station BEEJ 200/8-30-3 (13 l/s, 80m, 22kW)
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Nom.head, m:
80
Power supply:
3х380 V, 50 Hz
Rate of turn, rpm:
2 900
Feed height, m:
80
Nom.flow rate, m3/h:
45
Power capacity, kW:
22
See all
Documentation
Favorite
Compare
Products from the same category
Automatic electric fire extinguishing pumping station BEEJ 100/8-15-3 (6 l/s, 80m, 11kW)
Pre-order only
$11,633.03
Automatic electric fire extinguishing pumping station BEEJ 100/9-17.5-3 (6 l/s, 90m, 13kW)
Pre-order only
$12,115.43
Automatic electric fire extinguishing pumping station BEEJ 200/6-20-3 (13 l/s, 60m, 15kW)
Pre-order only
$12,405.57
Electric fire extinguishing pumping station BEEJ 200/9-40-4 (13 l/s, 90m, 30kW)
Pre-order only
$16,064.68
Electric two-pump fire station BEEJ 200/10-50-4 (13 l/s, 100m, 37kW)
Pre-order only
$17,982.74
Electric fire extinguishing pump station BEEJ 300/6-25-4 (19 l/s, 60m, 18.5kW)
Pre-order only
$12,838.92
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Electric two-pump fire fighting station BEEJ 200/8-30-3 (13 l/s, 80m, 22kW)
Producer | BTS Engineering |
Nom.head, m | 80 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 2 900 |
Feed height, m | 80 |
Nom.flow rate, m3/h | 45 |
Power capacity, kW | 22 |
Protection | IP55 |
Pump capacity, cu.m/hour | 45 |
Nom.pressure, Mpa | 1,6 |
Jockey pump power, kW | 2,2 |
Max.temperature, C | 120 |
Material | cast iron |
Country of Origin | China |
Warranty, months | 12 |
Application | firefighting, emergency water supply |

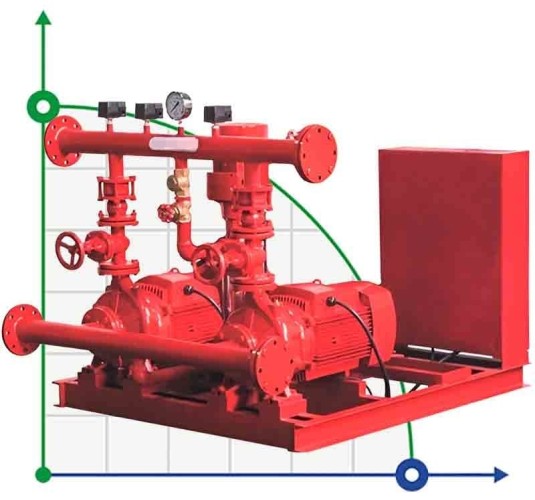

Description Electric two-pump fire fighting station BEEJ 200/8-30-3 (13 l/s, 80m, 22kW)
The BEEJ series electric fire pumping station consists of two electric centrifugal pumps with axial suction and a vertical electric jockey pump.
The pumping station is equipped with a suction and pressure manifold, shut-off valves, vibrating inserts, pressure switches, control and measuring instruments, a frame and a control panel.
Maximum capacity from 200 to 5700 l/min.
Maximum pressure 1-14 bar.
Advantages of pumping stations of this type
- Automatic switching between pumps
- Both manual and automatic modes are available
- Availability of a jockey pump to maintain pressure in the fire extinguishing system
- Easy installation
- Highly efficient motor with IP55, class F protection
- High performance and low power consumption
- Pump casing with anti-corrosion coating
- High-quality NSK bearings, wear-resistant mechanical seal
- Various equipment options
- Low maintenance and readily available spare parts.
Documentation Electric two-pump fire fighting station BEEJ 200/8-30-3 (13 l/s, 80m, 22kW)
Download instructions, catalog for Electric two-pump fire fighting station BEEJ 200/8-30-3 (13 l/s, 80m, 22kW)
