Brand:
BTS EngineeringCharacteristics
Output pipe diameter:
65
Producer:
BTS Engineering
Impeller material:
cast iron
Nom.head, m:
120
Max. head, m:
141
Rate of turn, rpm:
3 000
Feed height, m:
141
See all
Documentation
Favorite
Compare
Products from the same category
BSD 65-250/370 diesel pumping station
Pre-order only
$7,604.39
BSD 65-315/450 diesel pumping station
Pre-order only
$8,895.79
BSD 65-315/550 diesel pumping station
Pre-order only
$9,935.04
BSD 65-315/900 diesel pumping station
Pre-order only
$12,234.53
BSD 80-250/450 diesel pumping station
Pre-order only
$8,615.33
BSD 80-250/550 diesel pumping station
Pre-order only
$9,660.49
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures BSD 65-315/750 diesel pumping station

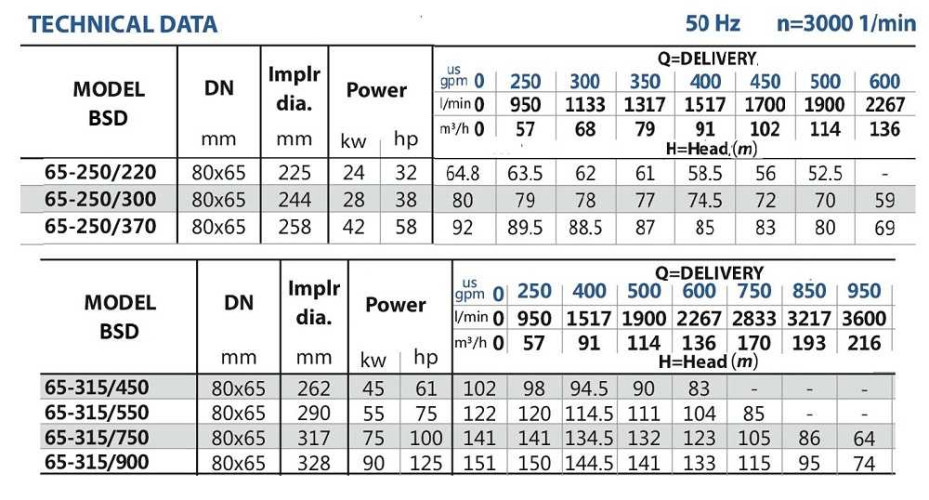

Output pipe diameter | 65 |
Producer | BTS Engineering |
Impeller material | cast iron |
Nom.head, m | 120 |
Max. head, m | 141 |
Rate of turn, rpm | 3 000 |
Feed height, m | 141 |
Nom.flow rate, m3/h | 144 |
Power capacity, kW | 75 |
Pump capacity, cu.m/hour | 216 |
Max.flow rate, m3/h | 216 |
Max.temperature, C | 120 |
Pressure, bar | 16 |
Specific fuel consumption in g/kWh | 204 |
Type | diesel |
Input pipe diameter | 80 |
Material | cast iron |
Serial number of the pump | BSD |
Country of Origin | China |
PumpType | console |
Drive Type | internal combustion engine |
Installation Type | horizontal |
Type of configuration | with engine |
Warranty, months | 12 |
Description BSD 65-315/750 diesel pumping station
Diesel pumping stations in SD are recommended for use in water supply, pressure boosting, fire extinguishing, irrigation, water circulation, and agriculture systems.
The BSD diesel pumping station is suitable for use with clean water and liquids that are not chemically aggressive to the materials from which the pump is made.
Liquid temperature -10 ° C to + 120 ° C
Ambient temperature up to +50 ° C
Maximum operating pressure 16 bar

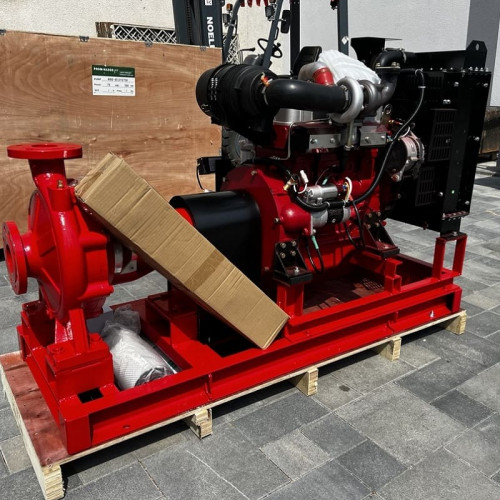

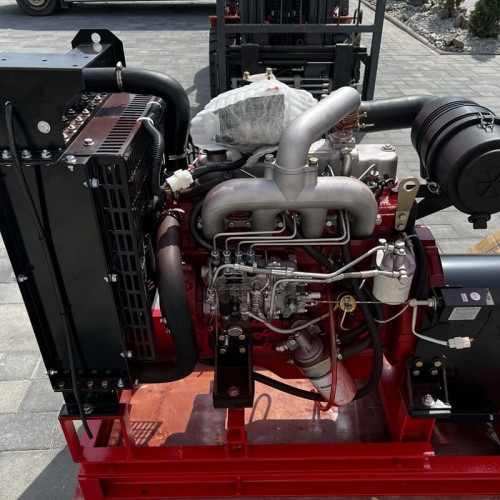

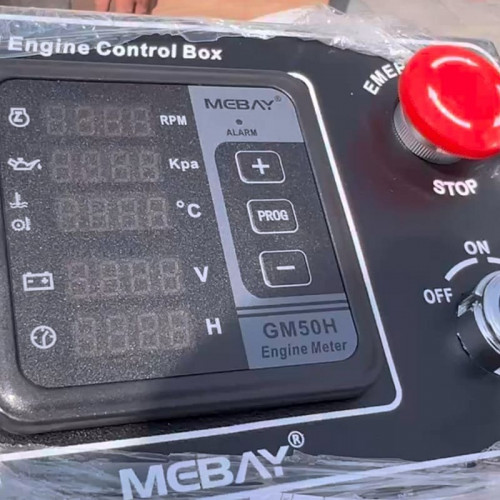

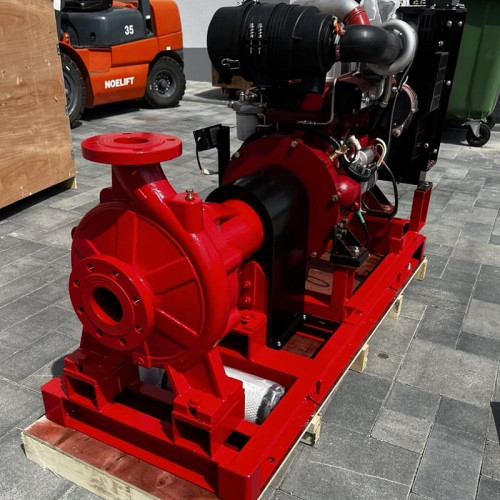

The diesel pumping station includes: pump, diesel engine, radiator, fuel tank, support frame, driveshaft, air filter, control panel, muffler.
Materials:
- pump body: cast iron with anti-corrosion coating;
- shaft: chrome-plated steel;
- mechanical seal: Carbon-sic-NBR.
