3QGD1-25-0,25-20M downhole screw pump
3QGD1-25-0,25-20M downhole screw pump
3QGD1-25-0,25-20M downhole screw pump
3QGD1-25-0,25-20M downhole screw pump
3QGD1-25-0,25-20M downhole screw pump
Brand:
ZEGORCharacteristics
Producer:
ZEGOR
The diameter of borehole, mm:
from 95 to 110
Power supply:
1х220 V, 50 Hz
Maximal altitude of immersion under the water surface, m:
15
Max. head, m:
70
Feed height, m:
70
Power capacity, kW:
0,25
See all
Favorite
Compare
Products from the same category
4QJED211-0.55 multistage downhole pump
Pre-order only
$151.63
4QJED214-0.75 multistage downhole pump
Pre-order only
$174.17
3QGD1-25-0,25-10M pump downhole screw
In stock
$94.34
3QGD1,2-30-0,37-10M pump downhole screw
In stock
$100.51
3QGD1,2-30-0,37-20M pump downhole screw
Pre-order only
$116.88
3QGD1,2-50-0,55 downhole screw pump
In stock
$102.57
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures 3QGD1-25-0,25-20M downhole screw pump
Producer | ZEGOR |
The diameter of borehole, mm | from 95 to 110 |
Power supply | 1х220 V, 50 Hz |
Maximal altitude of immersion under the water surface, m | 15 |
Max. head, m | 70 |
Feed height, m | 70 |
Power capacity, kW | 0,25 |
Pump capacity, cu.m/hour | 1.7 |
Explosion protection | No |
Max.flow rate, m3/h | 1.7 |
Diameter, mm | 75 |
Country of Origin | China |
PumpType | borehole |
Drive Type | electric |
Description 3QGD1-25-0,25-20M downhole screw pump
The downhole screw pump TM ZEGOR of the QGD series is designed for lifting and supplying clean cold water from wells, wells and other deep sources that meet the technical operating conditions of the pump
Maximum temperature of the pumped liquid: +35C;
Depth of immersion under the water mirror: up to 15m;
bore diameter: 3QGD from 95 to 110mm;
4QGD from 120 to 150mm;
The content of mechanical impurities (sand, clay, lime, etc.): no more than 0.02% w; hydrogen index of water (pH): 6.5-8.5;
Voltage: 220-240V; Frequency: 50Hz;
Warranty period: 24 months.

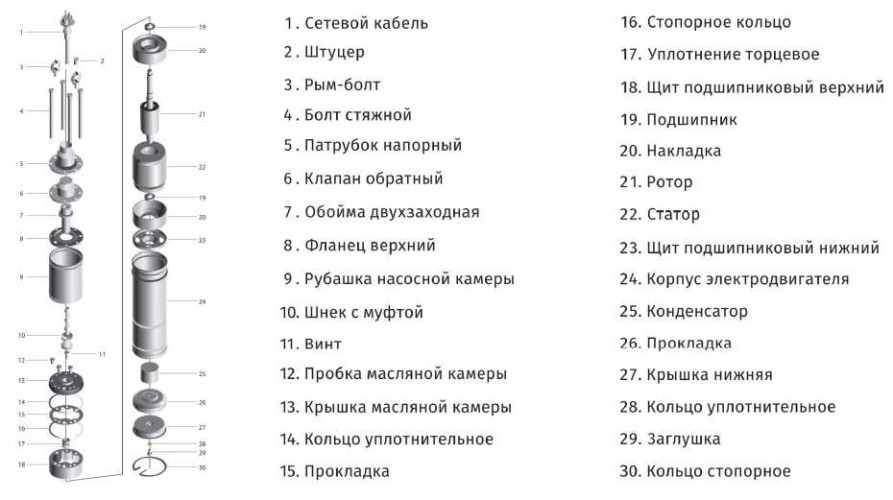

DESIGN FEATURES
• * Pump part
Pressure pipe: stainless steel AlSl 304
Power cable length: 10m, 20m.
• Electric motor:
Motor type: asynchronous, oil-filled, with thermal protection built into the winding
Stator winding: copper
Engine shaft:stainless steel AlSl 304;
Insulation class: F
Protection class: lP68
Mechanical seal:AISI 304/ NBR/graphite ceramics;
