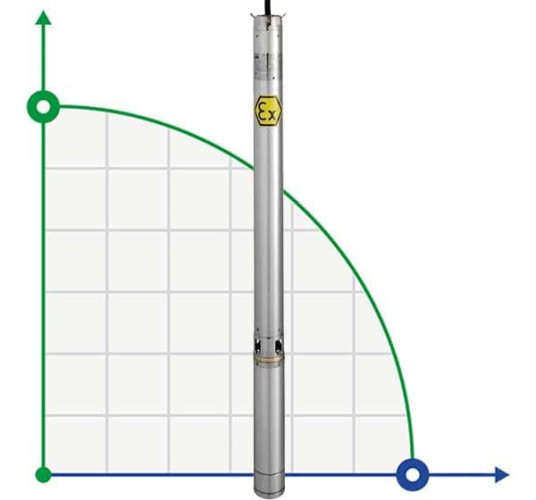

Submersible depth pump 4 inch ATEX GAMMA EX 26, 220V
Brand:
OFT PumpsCharacteristics
Output pipe diameter:
1" 1/4
Producer:
OFT Pumps
Power supply:
1х220 V, 50 Hz
Max. head, m:
150
Rate of turn, rpm:
2 850
Feed height, m:
150
Motor capacitor capacity, µF:
50
See all
Documentation
Favorite
Compare
Products from the same category
Also buy with this product
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Submersible depth pump 4 inch ATEX GAMMA EX 26, 220V
Output pipe diameter | 1" 1/4 |
Producer | OFT Pumps |
Power supply | 1х220 V, 50 Hz |
Max. head, m | 150 |
Rate of turn, rpm | 2 850 |
Feed height, m | 150 |
Motor capacitor capacity, µF | 50 |
Power capacity, kW | 1,5 |
Protection | IP68 |
Pump capacity, cu.m/hour | 6 |
Explosion protection | Yes |
Max.flow rate, m3/h | 6 |
Max.temperature, C | 40 |
Height, mm | 1 380 |
Diameter of pump | 4" (100 mm) |
Serial number of the pump | GAMMA EX |
Country of Origin | Italy |
PumpType | borehole |
Drive Type | electric |
Installation Type | vertical |
Warranty, months | 12 |
Weight, kg | 21,5 |
Description Submersible depth pump 4 inch ATEX GAMMA EX 26, 220V
ATEX pumps in accordance with Directive 2014/34 / EC can be installed in explosive environments in accordance with the ATEX marking.
Features: multi-stage centrifugal electric submersible pumps for 4-inch Wells; external pump body, discharge port, suction port, shaft and other stainless steel components; stainless steel check valve installed in the discharge head; pumped liquid temperature: no more than + 40 °C; available version for permanent immersion in bicarbonates (ID EX series); available in Aisi 316 version.
Motor: 2-pole asynchronous motor, 50 Hz, 2850 rpm.; Class F insulation; IP68 protection; operating voltage: single-phase 220V, three-phase 380V.
Accessories: control panel, intrinsically safe module with ATEX power supply circuit, ATEX level controller with 5, 10 or 20 m long electrical cable, ATEX electronic level sensor (or ATEX id), electrical cable for connection according to the selected version and pumped liquid.
Documentation Submersible depth pump 4 inch ATEX GAMMA EX 26, 220V
Download instructions, catalog for Submersible depth pump 4 inch ATEX GAMMA EX 26, 220V
