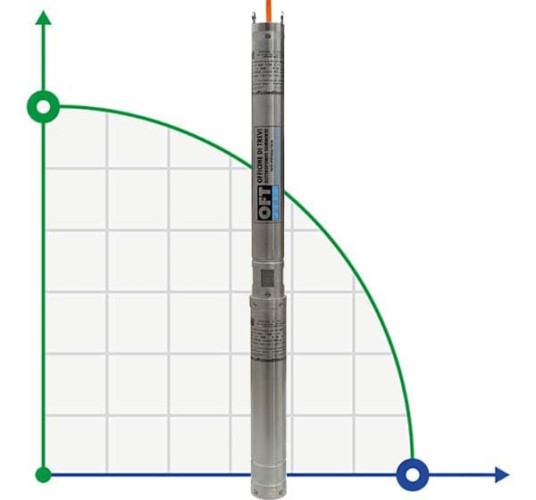

Submersible borehole pump 3 inch BE TREINCH 40-15, 380V

Pump application: Lifting water from deep wells and reservoirs, civil and industrial water lifting systems, pumping liquids, sampling liquids in contaminated areas, hydraulic barriers. The pumps must not be installed in explosive environments. Features: Multistage centrifugal electric submersible pumps for 3-inch wells. External pump housing, discharge pipe, suction pipe and other AISI 316 stainless steel components. Impellers and diffusers made of special technopolymer. Electric pumps are made directly by means of counters of the electric cable TPE-E 4G1, 5 which is necessary without electric connections. Motor: 2-pole asynchronous motor, 50 Hz, 2850 rpm. Class F insulation. IP68 protection. Operating voltage: single-phase 220V, three-phase 380V. The electric motor is cooled with a non-toxic, non-polluting liquid. Operating conditions: the pump cannot operate in dry conditions. The pump housing is always completely submerged in water. The temperature of transferred liquid: minimum 0 °C-maximum 40 °C. Non-freezing place. Vertical working position (horizontal - upon the request). Maximum immersion depth: 20 m. Maximum number of launches per hour: 20. Accessories: Control panel. BE electronic level sensor. Maxifilter 90, also available with inclined riser for inclined wells. TPE-E 4G1,5 cable.
